Ge Krautkramer NDT Spotchecker Sensing & Inspection
Manufacturer: Waygate Technologies
Model: Ge Krautkramer NDT Spotchecker Sensing & Inspection
Included: Ge Krautkramer NDT Spotchecker Sensing & Inspection with Accessories
This product has been added to 1 people'scarts.
Description
Ge Krautkramer NDT Spotchecker Sensing & Inspection is a hand-held flaw detector for testing spotwelds in situ on the production line. It weighs just 3.2 kg, is battery operated and is sealed to IP65. It features hot swap battery exchange to ensure continuous operation. SpotChecker does not require intensive training but offers the advantage of an “expert” system for people less qualified in weld inspection.
Ge Krautkramer NDT Spotchecker Sensing & Inspection its line of portable ultrasonic flaw detectors with Krautkramer USM 36 Detector — the “workhorse of flaw detectors”. Biggest A-Scan display in its class enables easy viewing and highly accurate data interpretation in all lighting environments. Ideal for use in code-based inspections in the oil & gas, automotive, rail, aviation, mining and construction industries.
Huerth, Germany XX November 2013 GE’s (NYSE: GE) Measurement & Control business announced the Krautkramer USM 36, the latest addition to its robust suite of portable ultrasonic flaw detectors. Combining ergonomic and sturdy design with state-of-the-art inspection performance, the new instrument offers the largest usable display screen in its class and a range of innovative features.
Ge Krautkramer NDT Spotchecker Sensing & Inspection Features:
- Completes our existing USLT product line for spot weld testing
- Offers true portability with a rugged, environmentally protective housing
- The key difference between this product and existing spot weld testing solutions is its size/weight,
- environmental protection and user friendly operating
- Unique user interface to operate a pointing device by two trackballs
- Touchscreen operation for direct access of different functions and settings on a big 8.4 inch LCD

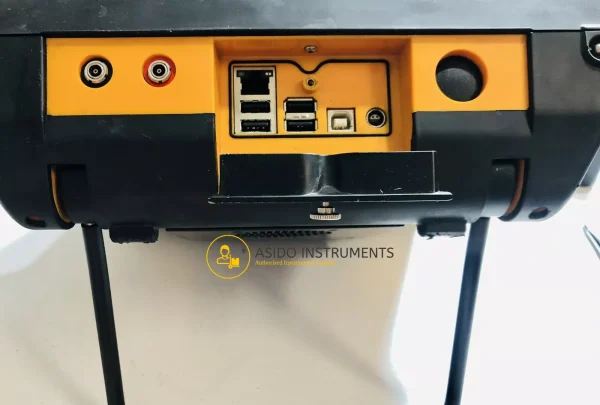

- Modern PC interfaces, including USB and wireless connection (WLAN, BlueTooth Remote control like USLT 2000)
- Ease of use for untrained inspectors (Application Specific Software UltraLOG)
- Compatible with other USLT 2000 solutions
- Hot swap battery exchange for continuous operation
- Environmentally protected according IP65
- Weight approx. 3.2 kg including batteries
Ge Krautkramer NDT Spotchecker Sensing & Inspection Included:
- Ge Krautkramer NDT Spotchecker Sensing & Inspection with Accessories
You may also be interested in GE Inspection Phasor XS 16:64 Phased Array Flaw Detector
Ge Krautkramer NDT Spotchecker Sensing & Inspection Specifications:
| Range USN 60 | 0.040ﾔ to 1100ﾔ (1 mm to 28 m) at steel velocity; range selectable in fixed steps or continuously variable |
| Material Velocity | Continuously adjustable from 0.0098 to 0.6299 inches/µs (250 to 16,000 m/s); 65 selectable material velocities |
| Display Delay | -20 to 3498 µs in steel (dependent on range) |
| Probe Delay/Zero Offset | 0 to 999.9 µs |
| Damping | 50, 75, 150, 500 ohms |
| Gain | 0 to 110 dB adjustable in selectable steps 0.1, 0.5, 1.0, 2.0, 6.0, user definable, and locked |
| Test Modes | Pulse echo, dual, and thru-transmission |
| Pulser | Square wave excitation pulse |
| Pulse Voltage (Square wave pulser mode) | 50 to 450 V scrollable in 10 V adjustments |
| Pulse Width (Square wave pulser mode) | Tunable from 50 to 1000 ns in 10 ns adjustments |
| Pulse Energy (Spike mode) | Low, High |
| Pulse Repetition Frequency USN 60 | Autolow, autohigh, manually adjustable from 15 to 6000 Hz (spike mode) and 15 to 2000 Hz in square wave mode, in 5 Hz increments, external trigger (spike mode only) |
| Bandwidth (amplifier bandpass) | 0.25 to 25 MHz with 10 selectable settings including broadband |
| Gate Monitors | Two independent flaw gates controllable over entire sweep range |
| Measurement Modes | Zero-to-first, multi-echo with selectable flank or peak detection |
| Rectification | Positive halfwave, negative halfwave, fullwave, RF |
| Reject (suppression) | 0 to 80% linear |
| Units | Inch, millimeter, or microsecond selectable |
| Operating Temperature | -20° to 55°C (-4° to 130°F); -25° to 70ºC (-13° to 158 º F ) storable |
| Languages | Selectable English, German, French, Spanish, Italian, Portuguese, Norwegian, Swedish, Finnish, Danish, Dutch, Russian, Czech, Romanian, Slovakian |

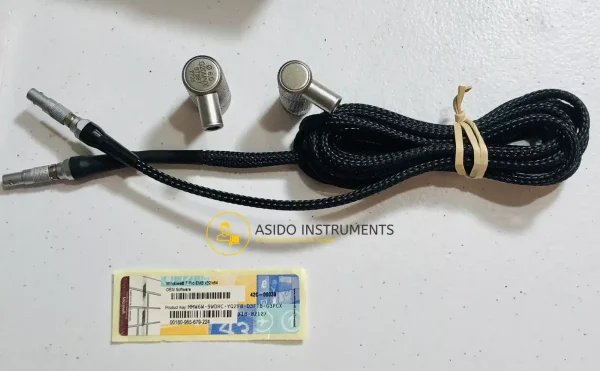

| Probe Connectors | BNC or Lemo |
| Keypad | International symbols |
| Battery Power | Lithium Ion battery pack; NiMH, NiCad or alkaline cells substitutable |
| Battery Life | 11 hours on Li-Ion battery pack |
| Size | 11.1ﾔ W x 6.75ﾔ H x 6.25ﾔ D (282 x 171 x 159 mm) |
| Display | 640 x 480 pixels Color LCD 132.48 x 99.36 mm |
| Weight | 6.6 lbs. (3.0 kg) Li-Ion battery; 3.5 lbs.(1.6 kg) without battery |
| Color Leg | Easy identification of leg and skip distances for angle beam inspection in A-scan or grid background colors |
| Weld Rating Calculation | Simplifies the rating of weld indications according to AWS specification D1.1, (formula D=A-B-C) |
| Dust Proof/DrippingWater Proof | As per IEC 529 specification for IP54 classification |
| Compliance | EMC/EMI: EN 55011:2007, EN 61000-6-2:2005 Ultrasound: EN 12668, ASTM E317 |
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 60 × 60 × 50 cm |
