Name: Olympus Epoch 1000i Ultrasonic Flaw Detector
Brand: Olympus
SKU: OE1000iUFD
Availability: InStock

Description

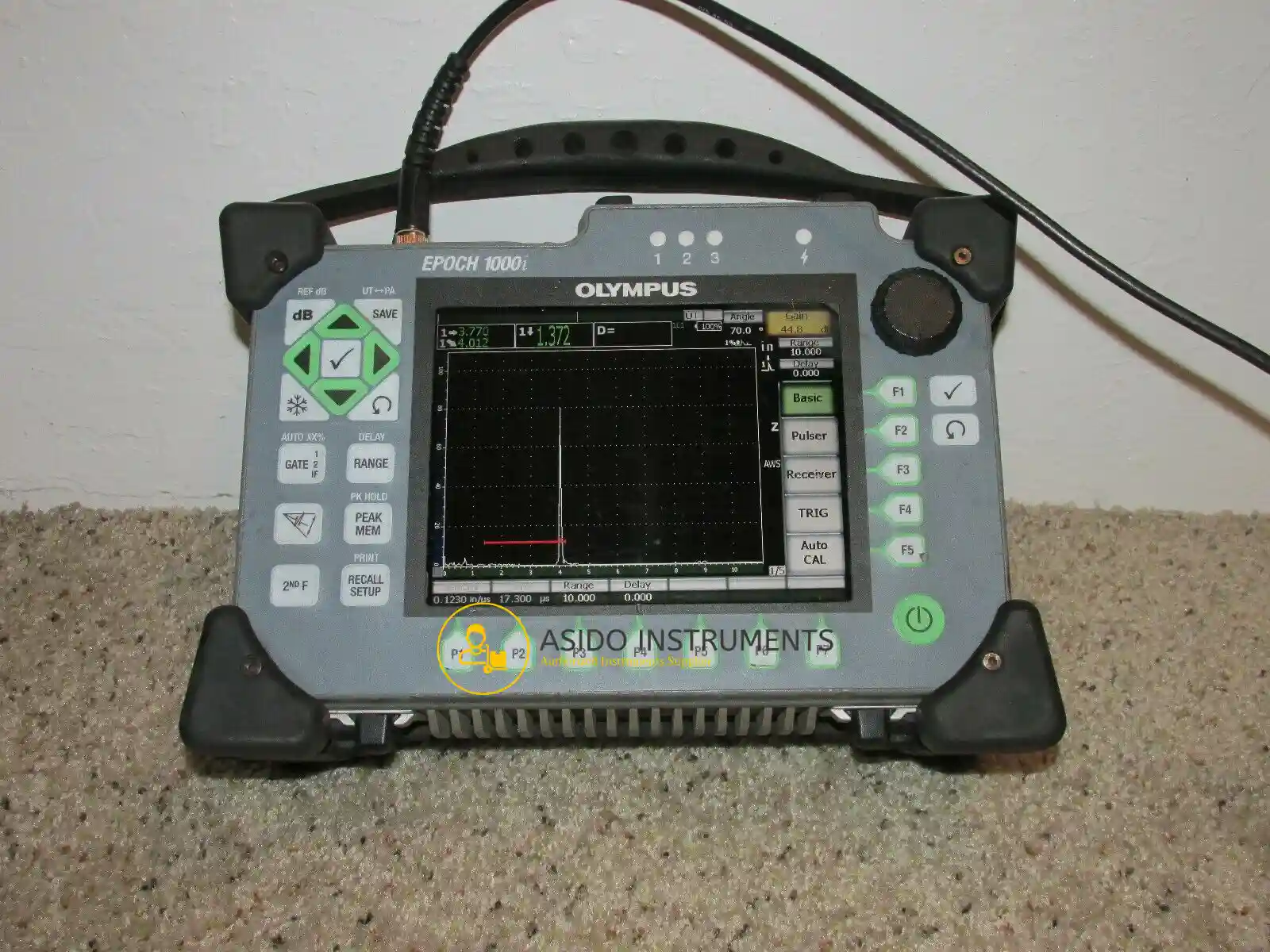

Olympus Epoch 1000i Ultrasonic Flaw Detector combine the highest level of performance for conventional portable flaw detection with the power of phased array imaging. The Olympus Epoch 1000i Ultrasonic Flaw Detector feature a horizontal case design with full VGA display, knob and navigation arrows for parameter adjustment, and full EN12668-1 compliance.

Olympus Epoch 1000i Ultrasonic Flaw Detector provide advanced conventional ultrasound capabilities for both basic and advanced level users. These portable instruments can also be integrated into small systems for high-speed scanning and single-channel imaging and come standard with a host of high-performance features, including a 6 kHz maximum Pulse Repetition Frequency (PRF) with single-shot measurements for accurate high-speed scanning applications, tunable square wave pulser with PerfectSquare™ technology, and comprehensive digital filter sets for exceptional signal-to-noise clarity.

Olympus Epoch 1000i Ultrasonic Flaw Detector Multi-Angle

The Olympus Epoch 1000i Ultrasonic Flaw Detector phased array mode includes a standard feature called Multi-Angle. This feature enables you to designate any three angles, or focal laws, available in the sector scan as “visible” focal laws. The A-scans from each of the three designated angles are overlaid, one on top of the other, in the A-scan window, enabling you to view all three A-scans at the same time. Olympus Epoch 1000i Ultrasonic Flaw Detector each individual angle is color coded for ease of use. This feature is perfect for inspectors using conventional sizing methods requiring evaluation at 45°, 60°, and 70°.

Olympus Epoch 1000i Ultrasonic Flaw Detector Applications:

General weld inspeciton
Crack detection and sizing
Power generation inspections
AWS D1.1/D1.5 weld inspection
Casting and forging defect inspections
DGS/AVG defect sizing
In-line inspections
Composite delamination and defect inspections
Aerospace and maintenance
Automotive and transportation

Olympus Epoch 1000i Ultrasonic Flaw Detector Features:

Adjustable pulse repetition frequency (PRF): 5 Hz to 6 kHz
Single-shot measurements in all standard modes
Tunable square wave pulser with PerfectSquare™ technology
Programmable analog and alarm outputs
Over 30 digital filter sets
Digital high dynamic range receiver

Olympus Epoch 1000i Ultrasonic Flaw Detector Included:

Olympus Epoch 1000i Ultrasonic Flaw Detector
Olympus Probe MB4FE 57905/4961/4MHz
RS232 Power Cable P/N: 704-889-01
BNC Cable
AC Adapter/Charger
Power Cord
USB PC Interface Cable
Hard Copy User Manual
Hard Carrying Case (G)

You may also be interested in Olympus DS6500 Delta XRF Analyzer

Specifications:

Overall dimensions (W x H x D)	252 mm × 177 mm × 107 mm (9.92 in. × 6.97 in. × 4.2 in.)
Weight	3.67 kg (8.1 lb), including lithium-ion battery
Keypad	English, International, Japanese, Chinese
Languages	English, Spanish, French, German, Japanese, Chinese, Russian, Italian, Polish
Transducer connections	BNC or Number 1 LEMO
Data storage	Onboard up to 10,000 IDs with waveform, standard 4 GB compact flash card (removable)
Battery type	Single lithium-ion rechargeable standard
Battery life	8 hours (conventional UT mode); 7 hours (phased array mode)
Power requirements	AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz
Standby mode	Adjustable from 15 minutes to 120 minutes with 50% less battery consumption
Display type	Full VGA (640 × 480 pixels) Transflective Color LCD, 60 Hz update rate
Display dimensions (W x H, Diag.)	132.5 mm × 99.4 mm, 165.1 mm (5.2 in. × 3.9 in., 6.5 in.)
Inputs/Outputs
USB ports	1 USB Client, 3 USB Host ports
RS-232	Yes
Video output	VGA output standard
Analog output	4 analog outputs, Selectable 1V/10V Full Scale, 4 mA max
Alarm output	6 alarm outputs, 5V TTL, 10 mA
Trigger I/O	Trigger input 5V TTL; trigger output, 5 V TTL, 10 mA
Encoder inputs	2-axis encoder line (quadrature)
Environmental Ratings
IP rating	Designed to meet requirements of IP66
Explosive atmosphere	Tested to MIL-STD-810F, Method 511.4, Procedure 1. Atmosphere defined per NFPA 70, Article 500 as Class I, Division 2, Group D.
Shock tested	IEC 600689-2-27, 60 g’s, 6 µsec Half-Sine, 18 Axes total
Vibration tested	Sine vibration, IEC 60068-2-6, 5 Hz to 150 Hz @ 0.03 in. or 2 g’s Displacement Amplitude, 20 sweep cycles
Operating temperature	–10 °C to 50 °C (14 °F to 122 °F)
Battery Storage temperature	–20 °C to 60 °C (–4 °F to 140 °F)
Battery Recharge temperature	0 °C to 40 °C (32 °F to 104 °F)
Pulser
Pulser type	Tunable Square Wave
PRF	5 Hz to 6,000 Hz in 5 Hz increments
Energy settings	50 V to 475 V in 25 V increments
Pulse width	Adjustable from 45 ns to 5,000 ns (0.1 MHz) with PerfectSquare Technology
Damping	50 Ω, 100 Ω, 200 Ω, 400 Ω
Pulser delay	Not applicable
Receiver
Gain	0 to 110 dB
Maximum input signal	20 Vp-p
Receiver input impedance	400 Ω ± 5%
Receiver bandwidth	0.2 MHz to 26.5 MHz @ –3 dB
Receiver delay	NA
Digital filter settings	Standard filter set (EN12668-1 Test & Compliant): 7 filters Advanced filter set (not tested to EN12668-1): 30 filters
Rectification	Full wave, positive half wave, negative half wave, RF
Reject	0 to 80% FSH with visual warning
Amplitude measurement	0% to 110% full-screen height with 0.25% resolution
Measurement rate	Equivalent to PRF in all modes
Calibration
Automated calibration	• Velocity, Zero Offset • Straight Beam (first back wall or echo-to-echo) • Angle Beam (Soundpath or Depth)
Test modes	Pulse Echo, Dual, or Through Transmission
Units	Millimeters, inches, or microseconds
Range	3.33 mm to 26,808 mm (0.131 in. to 1054.1 in.) at 5900 m/s (0.2320 in./µs)
Velocity	635 to 15, 240 m/s (0.0250 to 0.6000 in./µs)
Zero offset	0 µs to 750 µs
Display delay	–59 mm to 25,400 mm (–2.323 in. to 1000 in.)
Refracted angle	0° to 85° in 0.1° increments
Gates
Measurement gates	Two fully independent gates for amplitude and time-of-flight measurements
Measurement mode	Soundpath
Interface gate	Optional, with Gate 1 and Gate 2 tracking
Gate start	Variable over entire displayed range
Gate width	Variable from gate start to end of displayed range
Gate height	Variable from 2% to 95% full-screen height
Alarms	• Positive and negative threshold • Minimum depth
Reference cursors	Two reference cursors for A-scans
Measurements
Displayed measurement	Six locations available (manual or auto selection)
Gate 1	Thickness, soundpath, projection, depth, amplitude, time-of-flight, min./max. depth, min./max. amplitude
Gate 2	Same as Gate 1
IF gate (Optional)	Thickness
Echo-to-Echo	Standard. Choose between Gate2-1, Gate2-IF, and Gate1-IF
Other measurements	Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 rating (D), reject value
DAC/TVG	Standard
DAC points	Up to 50 points, 110 dB dynamic range
Special DAC modes	20% to 80% DAC, Custom DAC (up to 6 curves)
TVG table	Up to 50 points, 110 dB dynamic range, compatible with IF Gate at all PRF settings
Curved surface correction	Standard. Tube or bar OD correction for angle beam measurements
