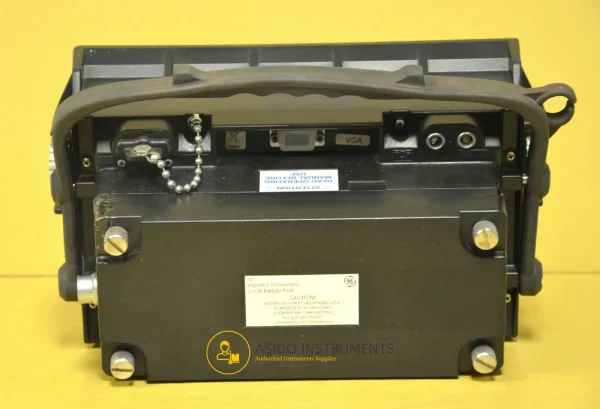

GE Inspection Phasor XS 16:64 Phased Array Flaw Detector
In Stock
Manufacturer: GE Inspection Technologie
Model: Phasor XS 16:64 Phased Array Flaw Detector
Included: GE Hocking Phasec 3 Eddy Current Phased Array Flaw Detector with Accessories
In Stock
Description
GE Inspection Phasor XS 16:64 Phased Array Flaw Detector brings the proven advantages of Phased Array technology to a new – and accessible – level. This portable and rugged device combines the value of Phased Array with a codecompliant conventional UT flaw detector. It is simple to use, easy to learn and specially designed with practical, relevant features.
The GE Phasor XS brings the proven advantages of Phased Array technology to a new – and accessible – level. This portable and rugged device combines the value of Phased Array with a codecompliant conventional UT flaw detector. It is simple to use, easy to learn and specially designed with practical, relevant features.
When used in Phased Array mode, the operator can electronically control multiple beams from one probe. The precise beam control including angle, focus and size, results in improved probability of detection (POD) and sizing. With one scan from one contact location, greater area is covered and comprehensive data can be viewed in real time on a full color sector display. When compared to conventional Ultrasonic inspection, the productivity and cost savings from the Phasor XS are easily measured.
GE Inspection Phasor XS 16:64 Phased Array Flaw Detector Features:
- Combined Phased Array and code compliant Conventional UT flaw detector
- Truly portable Phased Array – less than 4 kg (7 lbs)
- Electronically controlled and selectable beam angles, focus and size
- Simultaneous inspection with multiple beams from a single location
- Full color, real time sector display with a selectable ASCAN
- Fullscreen Bscan plus Display reverse and flip
- Rugged packaging to withstand heavy onsite use
- Snap shot image storage of sector images and ASCANS
- Dialog probes 16/64
- Delay law calculator
- Push button control for operation in a bag
- Simple operating scheme
- Image transfer via SD card
GE Inspection Phasor XS 16:64 Phased Array Flaw Detector Included:
- GE Phasor XS 16:64 Phased Array Ultrasonic Flaw Detector
- Battery Pack
- AC Adapter/Charger
- User Manual On Cd-ROM
- Carrying Case (G)
You may also be interested in GE Hocking Phasec 3 Eddy Current Phased Array Flaw Detector
GE Inspection Phasor XS 16:64 Phased Array Flaw Detector Specifications:
| Display Size Resolution | 6.5” VGA (640*480 pixel) color TFT, 60Hz refresh rate |
| Battery Type | Custom Li-Ion battery pack (3S6P configuration) |
| Battery Life | 4 hours minimum |
| Battery Charging | External charger that connects directly to the battery pack |
| External Power Supply | Universal input (85 – 265V / 50 – 60 Hz) |
| Units of Measure | inch and mm |
| SD Card Memory | Sealed compartment |
| Number of Cycles Focal Laws | Conventional Channel: 1 Phased Array Channels: 128 (max) |
| Pulse repetition frequency | Conventional Channel: 15 to 2000Hz Phased Array Channels: 15 to 7680Hz |
| Pulser Type | Conventional Channel: Spike Phased Array Channels: Bipolar Squarewave |
| Pulser Voltage | Conventional Channel: 300V (max) Phased Array Channels: +/-25V to +/-75V |
| Pulser Energy | Conventional Channel: Low, High Phased Array Channels: n/a |
| Pulser Rise Time | Conventional Channel: <15ns Phased Array Channels: Not Specified |
| Damping | Conventional Channel: 50, 500 and 1000 Phased Array Channels: n/a |
| Dual Mode | Conventional Channel: Off and On Phased Array Channels: n/a |
| Receiver input Capacitance | Conventional Channel: <50pF Phased Array Channels: |
| Maximum input voltage | Conventional Channel: 40Vp-p Phased Array Channels: |
| Bandwidth / Amplifier bandpass | Conventional Channel: 0.3 to 15MHz(-3dB points) Phased Array Channels: 0.5 to 10MHz |
| Direct Documentation Format | Conventional Channel: JPEG Phased Array Channels: JPEG |
| Probe Connections | Conventional Channel: 00 Lemo/ BNC Adaptor Supplied Phased Array Channels: Custom Supplied |
| Physical Probe | Conventional Channel: n/a Phased Array Channels: 1 to 64 |
| Virtual probe | Conventional Channel: n/a Phased Array Channels: 1 to 16 |
| Number of Cycles | Conventional Channel: 1 Phased Array Channels: 1 to 128 |
| Pulser Width (1/2 Cycle) | Conventional Channel: n/a Phased Array Channels: 40 to 500ns |
| Pulser Delay | Conventional Channel: n/a Phased Array Channels: 0 to 10.24us |
| Receiver Delay | Conventional Channel: n/a Phased Array Channels: 0 to 10.24us |
| Receiver Input Resistance | Conventional Channel: 1000ohm (dual mode) Phased Array Channels: 220ohm |
| Analog Gain | Conventional Channel: 0 to 110.0dB Phased Array Channels: 0 to 40.0dB |
| Digital Gain | Conventional Channel: n/a Phased Array Channels: 0 to 50.0dB |
| Frequency Select | Conventional Channel: 2.25MHz, 5MHz, LP and HP Phased Array Channels: 2.25MHz, 5MHz, LP and HP |
| Rectification | Conventional Channel: PosHW, NegHW and Fullwave Phased Array Channels: PosHW, NegHW and Fullwave |
| Measurement Resolution | Conventional Channel: 5nsec Phased Array Channels: 5nsec |
| Displayed Readings | Conventional Channel: A%A, A%B, SA/, SA^, SB/, SB^ Phased Array Channels: A%A, A%B, SA/, SA^, SB/, SB^ |
| VGA output | Conventional Channel: Yes Phased Array Channels: Yes |
| SD Card Memory | Conventional Channel: Yes Phased Array Channels: Yes |
| RS 232 interface | Conventional Channel: Yes Phased Array Channels: Yes |
| Auto Timebase Calibration | Conventional Channel: Yes Phased Array Channels: No |
| Reject | Conventional Channel: 0 to 80% Phased Array Channels: 0 to 80% |
| TCG | Conventional Channel: 16 points (max) – 6dB/usec Phased Array Channels: 16 points (max) – 6dB/usec |
| Sound Velocity | Conventional Channel: .0393 – .5905”/us[1000 – 15000m/s] Phased Array Channels: .0393 – .5905”/us[1000 – 15000m/s] |
| Range | Conventional Channel: 5m @ steel shear velocity Phased Array Channels: 1m @ steel shear velocity |
| Weight | Conventional Channel: 7.5lbs (with batteries) Phased Array Channels: 7.5lbs (with batteries) |
| Size | Conventional Channel: 11.1”W x 6.75”H x 6.25”D (282 x 171 x 159mm) Phased Array Channels: 11.1”W x 6.75”H x 6.25”D (282 x 171 x 159mm) |
| Display Delay | Conventional Channel: 2.5m @ steel shear velocity Phased Array Channels: 1m @ steel shear velocity |
| Gates | Conventional Channel: A, B Phased Array Channels: A,B,IF |
| Gate Threshold | Conventional Channel: 5% to 95% Phased Array Channels: 5% to 95% |
| Gate Start | Conventional Channel: [0.1mm to 2m] Phased Array Channels: 0.1mm to 1m |
| Gate Width | Conventional Channel: [0.1mm to 2m] Phased Array Channels: 0.1mm to 1m |
| Gate Modes | Conventional Channel: Off, Pos, Neg[Off, Coincidence, Anticoincidence] Phased Array Channels: |
| TOF Modes | Conventional Channel: Flank, Peak Phased Array Channels: Flank, Peak |
| Scan type | Conventional Channel: n/a Phased Array Channels: Linear or Sector |
| Data visualization refresh rate | Conventional Channel: 60Hz Phased Array Channels: 60Hz |
| Available views | Conventional Channel: Ascan Phased Array Channels: Ascan only, Image only, Ascan + Image |
| Dialog Languages | Conventional Channel: English, Spanish, German, French, Chinese, Japanese Phased Array Channels: English, Spanish, German, French, Chinese, Japanese |
| Environmental tests | |
| Cold Storage | -20C for 72 hrs, 502.4 Procedure I |
| Cold Operation | 0C for 16 hrs, 502.4 Procedure II |
| Heat Storage | +70C for 48 hrs, 501.4 Procedure I |
| Heat Operation | +55C for 16 hrs, 501.4 Procedure II |
| Damp Heat / Humidity | 10 Cycles: 10hrs at +65C down to +30C, 10 hrs at +30C up to +65C, Transition within 2 hrs, 507.4 |
| Temperature Shock | 3 Cycles: 4 hrs at –20C up to +70C, 4 hrs at +70C, Transitions within 5 minutes, 503.4 Procedure II |
| Vibration | 514.5-5 Procedure I, Annex C, Figure 6, General exposure: 1hr each axis |
| Shock | 6 cycles each axis, 15g, 11ms half sine, 516.5 Procedure I |
| Loose Cargo | 514.5 Procedure II |
| Transit Drop | 516.5 Procedure IV, 26 drops |
| IP54 / IEC529 Dust Proof / Dripping water proof as per IEC 529 | |
| Environmental sealing tests | IP54 / IEC529 … Dust Proof / dripping water proof as per IEC 529 specifications for IP54 classification Enviromental op temp Low battery indication Amplitude variation expected over battery life Graticule Architectural suppression Linearity on timebase Pulser, Voltage p to p, rise time, duration, fall time, Reverberation ampitude, frequncy spectrum plot Amplifier and attenuator |
