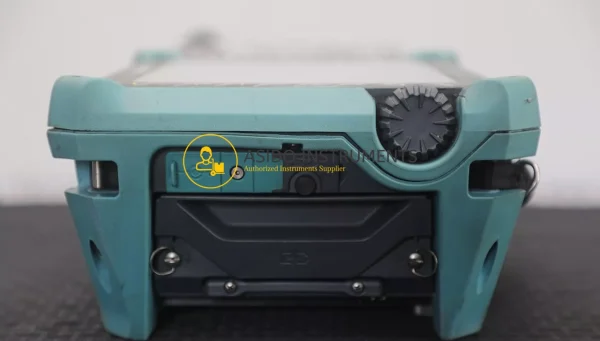

Name: Olympus Omniscan MX2 32:128 Flaw Detector
Brand: Olympus
SKU: OOMX232128FD
Availability: InStock

Olympus Omniscan MX2 32:128 Flaw Detector

~~$11,000.00~~ $5,500.00

In Stock

Manufacturer: Olympus
Model: Omniscan MX2 32:128
Included: Olympus Omniscan Mx2 unit,AC Adapter, Power cord for charger, VGA cable, Ethernet Cable, User Documents, Hard carrying case

This product has been added to 1 people'scarts.

In Stock

Description

Olympus Omniscan MX2 32:128 Flaw Detector increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance.

Olympus Omniscan MX2 32:128 Flaw Detector offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.

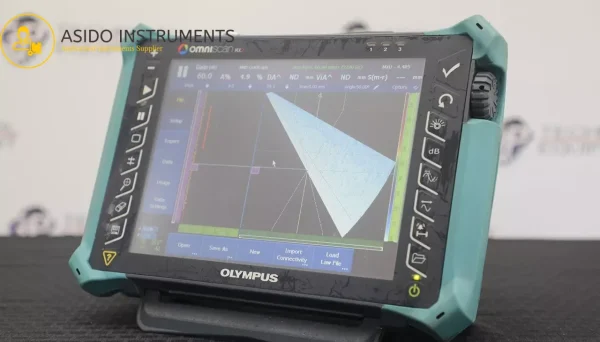

Olympus Omniscan MX2 simplifies and speeds up the setup process with its intuitive step-by-step Wizard, so you can start testing quickly. Featuring the industry-standard phased array user interface with faster-than-ever performance, a bigger and brighter 10.4 in. (26.4 cm) screen, new and unique intuitive touch-screen capabilities, and faster data transfer, the MX2 enables you to get to your next inspection quicker.

Olympus Omniscan MX2 32:128 Flaw Detector Features:

Export C-Scan
New End-View with group merge
Interleave
Analysis attenuation gain
Scrolling layouts for easy interpretation
Improved accessibility with more interactive menus
Improved accessibility with more interactive menus
Onboard compound scan
Curved geometry ray-tracing for longitudinal welds

Included:

Olympus Omniscan Mx2 unit
AC Adapter
Power cord for charger
VGA cable
Ethernet Cable
User Documents
Hard carrying case

You may also be interested in Olympus Nortec 600

Specifications:

Data Processing	PA Channels	UT Channels
Number of data points	Up to 8,192
Real-time averaging	2, 4, 8, 16	2, 4, 8, 16, 32, 64
Rectifier	RF, full wave, half wave +, half wave –
Filtering	3 low-pass, 3 band-pass, and 5 high-pass filters	3 low-pass, 6 band-pass, and 3 high-pass filters (8 low-pass filters when configured in TOFD)
Video filtering	Smoothing (adjusted to probe frequency range)

Data Visualization	A-scan refresh rate: Real time: 60 Hz
Data Synchronization	On internal clock: 1 Hz to 10 kHz On encoder: On 2 axes: from 1 to 65,536 steps
Programmable Time-Corrected Gain (TCG)	Number of points: 32: One TCG curve per focal law
Alarms	Number of alarms: 3 Conditions: Any logical combination of gates Analog outputs: 2
