Olympus EPOCH 6LT Portabel Flaw Detector
- Manufacturer: Olympus
- Model: EPOCH 6LT
- Included: Olympus Epoch 6LT Unit, Hard Padded Transport Case, Lithium Ion Battery, Charger and AC Cable, USB Data Cable, USB Manual
This product has been added to 1 people'scarts.
Description

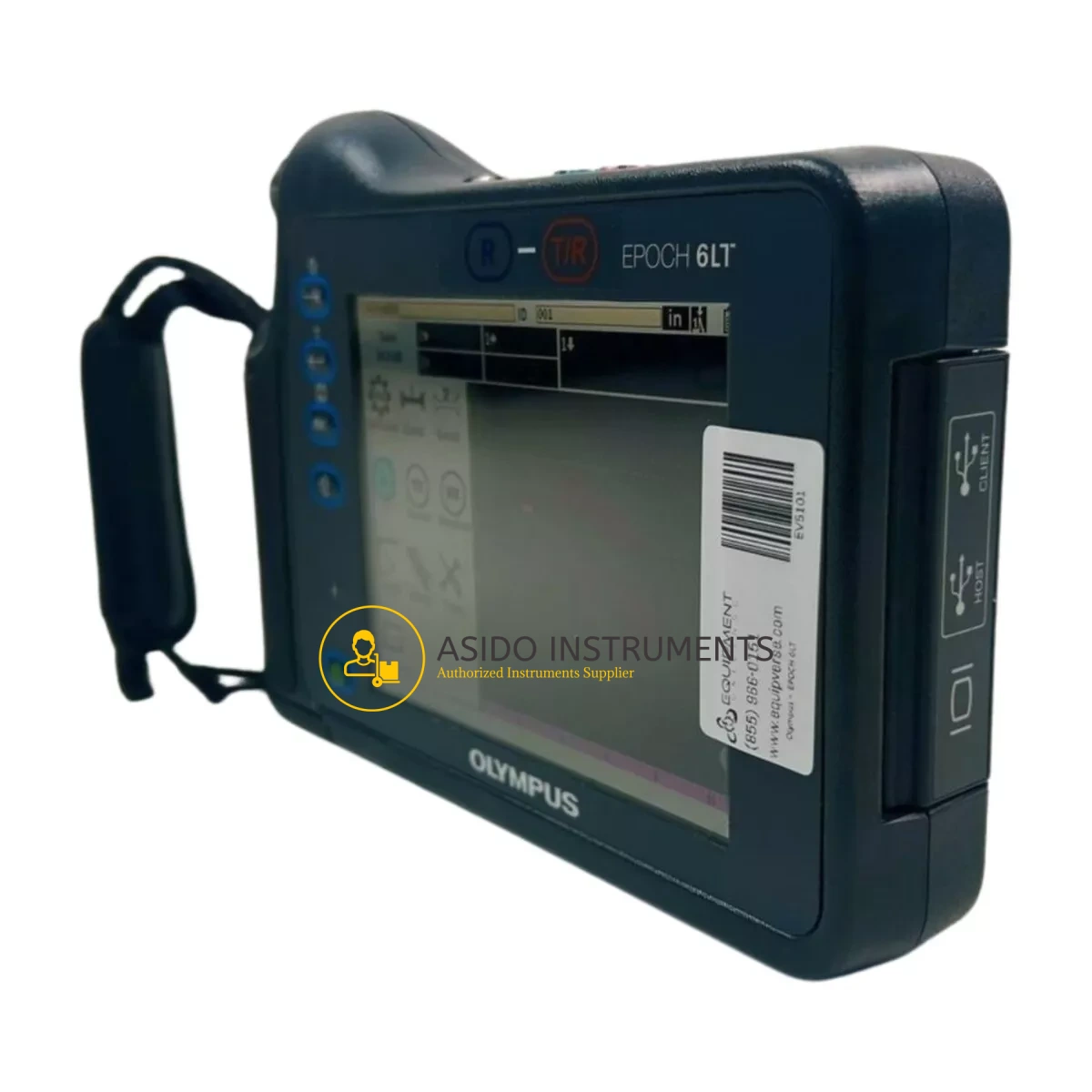

Olympus EPOCH 6LT Portabel Flaw Detector is a one-hand operable flaw inspection device ideal for rope access applications due to its light weight of 1.95 pounds (890g) and one-hand grip. The other hand remains free while operating the Olympus EPOCH 6LT Portabel Flaw Detector.

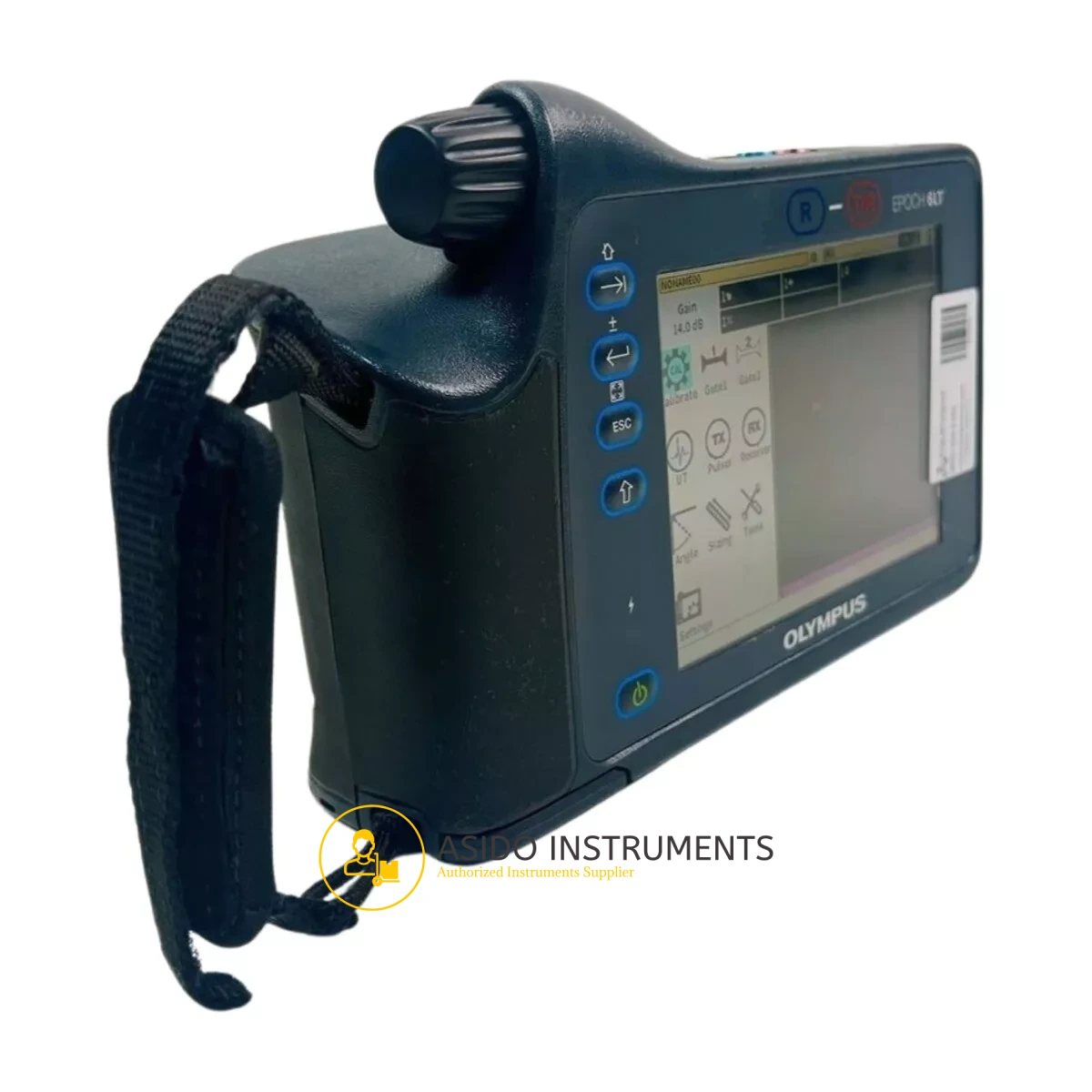

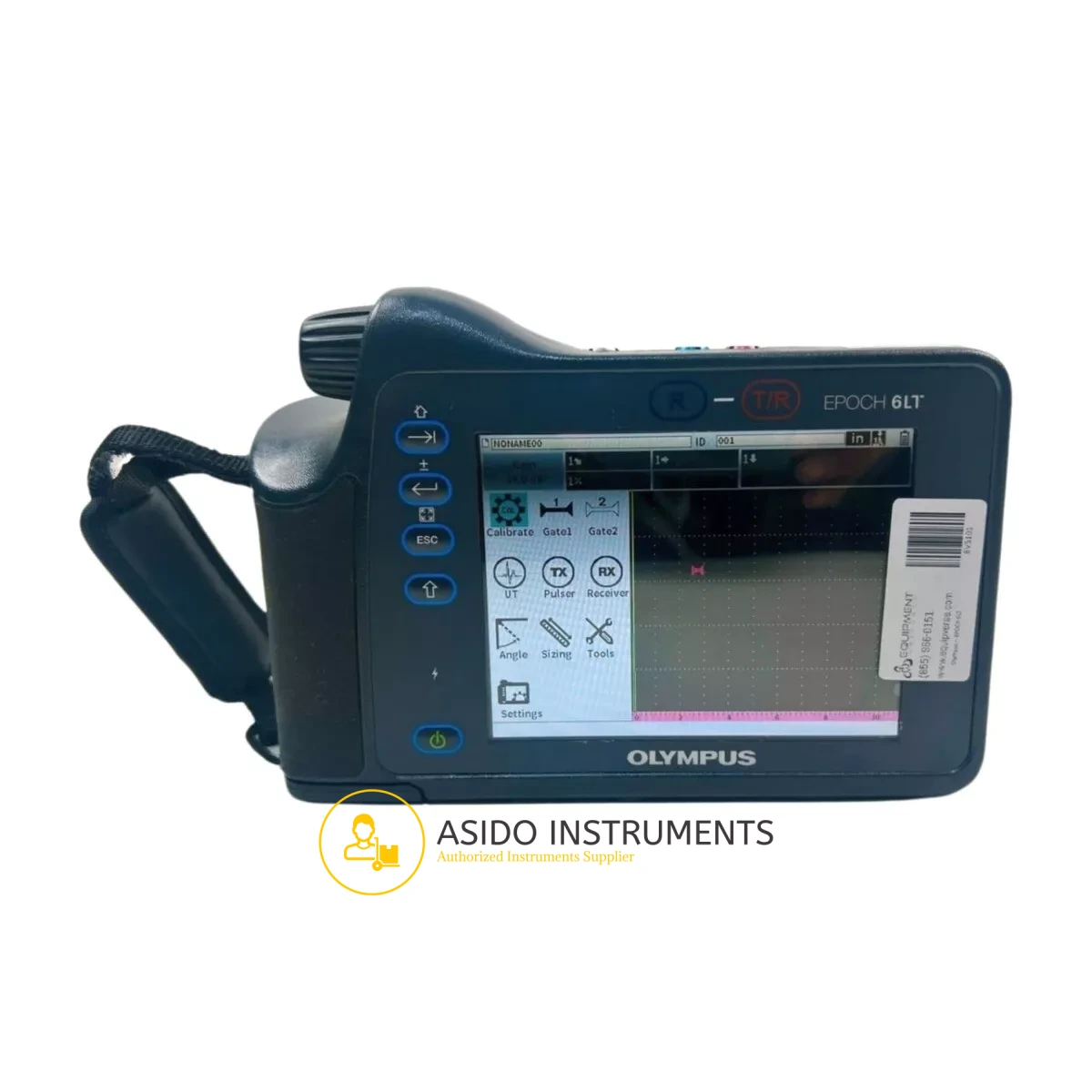

Olympus EPOCH 6LT Portabel Flaw Detector Simply strap the instrument to your leg or harness while climbing, and then hold the instrument with the side strap, turning it to the alternative portrait view if necessary. The Olympus EPOCH 6LT Portabel Flaw Detector clear, bright screen displays readable A-scans in any light, and the button layout is designed to maximize simplicity.
Olympus EPOCH 6LT Portabel Flaw Detector Designed for Rope Access and Ultra-High Portability Applications:
- With the optional rope access accessory kit, secure the instrument to your leg with a strap or attach it to your harness, leaving your hands free to maintain balance or adjust the probe
- Rotate the display from portrait to landscape to properly view the A-scan and readings
- For greater flexibility, the 1/4-20 threaded insert enables you to connect the flaw detector to a wide variety of Olympus and third-party accessories
Olympus EPOCH 6LT Portabel Flaw Detector Features:
Dynamic DAC/TCG: Calculates signal amplitude as a percentage or decibel level compared to a DAC curve or a reference echo amplitude fixed at a time-varied gain. The DAC version includes standard, custom DAC warning curves, and 20–80% views.
DGS/AVG: Enables echo signals to be evaluated with a DGS/AVG diagram, which illustrates the relationship between echo height, flaw size, and distance from the transducer.
AWS D1.1 and D1.5: Provides a dynamic reflector indication rating for various AWS weld inspection applications. This enables more efficient inspections by eliminating manual calculations.

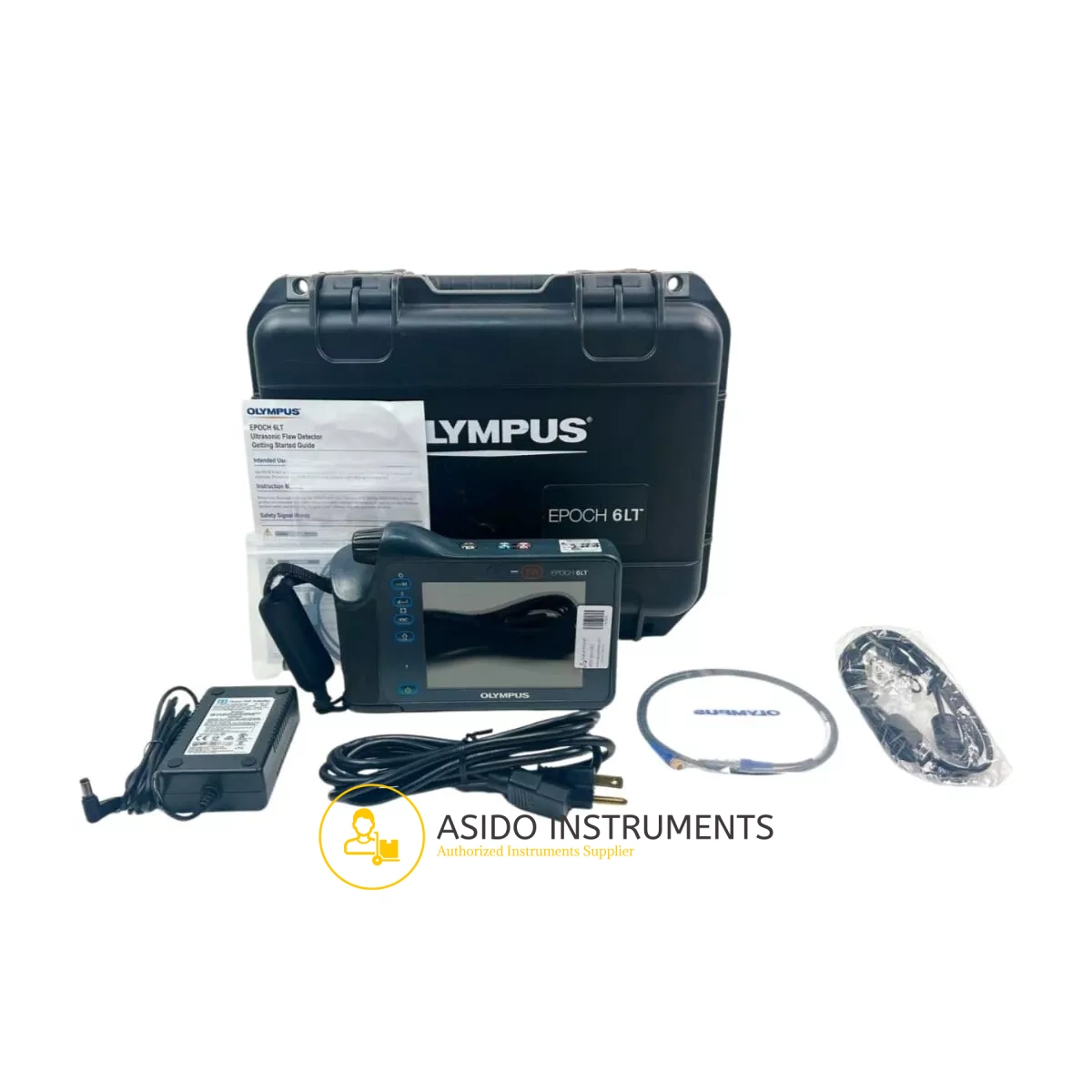

Olympus EPOCH 6LT Portabel Flaw Detector Included:
- Olympus Epoch 6LT Unit

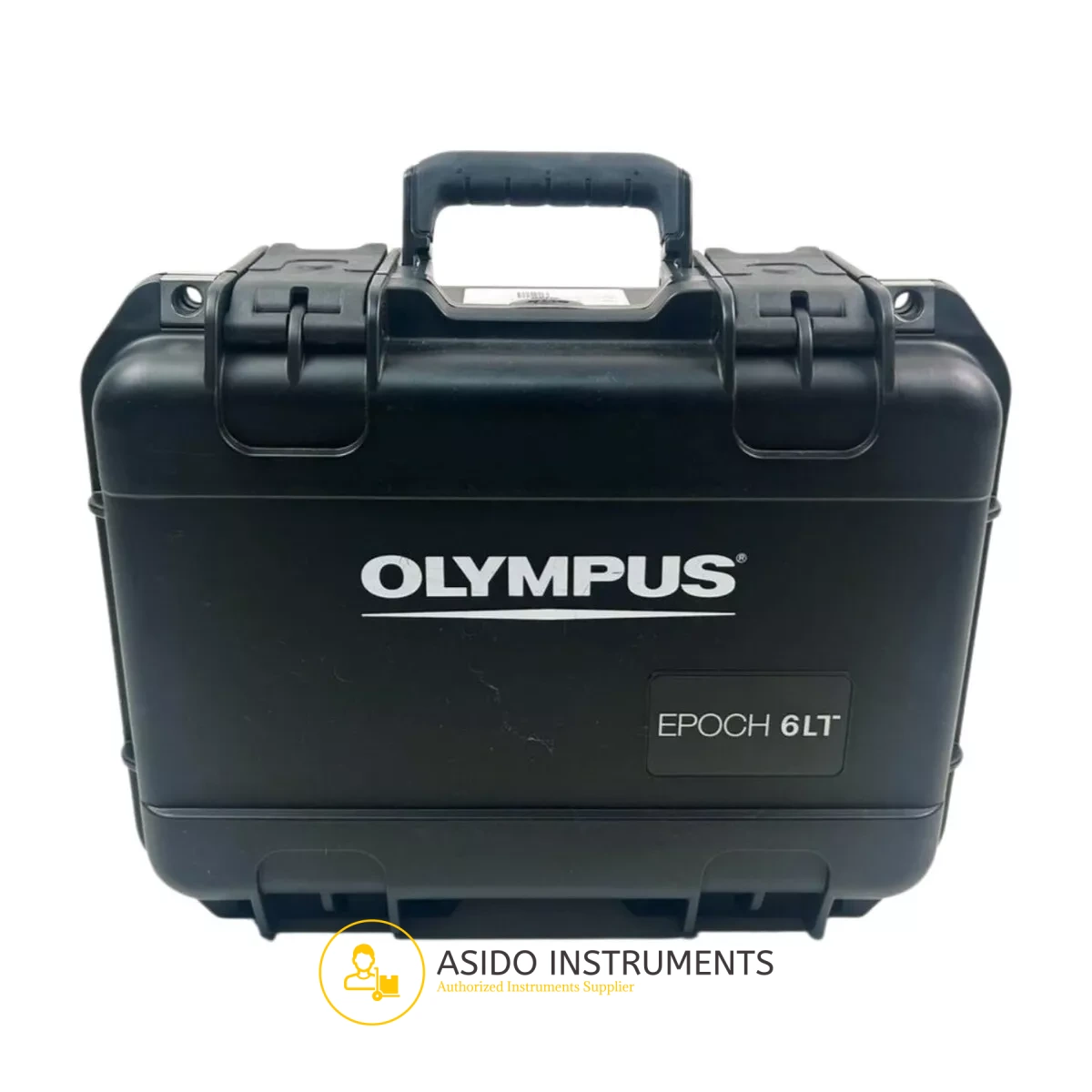

- Hard Padded Transport Case
- Lithium Ion Battery
- Charger and AC Cable
- USB Data Cable
- USB Manual
You may also be interested in Olympus EPOCH 650 Ultrasonic Flaw Detector
Specifications:
General
| User Interface Languages | English, Spanish, French, German, Japanese, Chinese, Portuguese, Russian, Italian |
|---|---|
| Transducer Connections | LEMO 00 |
| Data Storage | 100,000 IDs onboard |
| Battery Type and Life | Single lithium-ion rechargeable standard; 6 h life |
| Power Requirements | AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz |
| Display Type | Full VGA (640 × 480 pixels) transflective color LCD, 60 Hz update rate |
| Display Dimensions (W × H, Diag.) | 117 mm × 89 mm, 146 mm (4.62 in. × 3.49 in., 5.76 in.) |
| Overall Dimensions (W × H × D) | 209 mm x 128 mm x 36 mm, 58 mm at hand grip (8.2 in. x 5 in. x 1.4 in., 2.3 in. at hand grip) |
| Weight | 890 g (1.95 lb), including lithium-ion battery |
Instrument Inputs/Outputs
| USB Ports | (1) USB 1.1 Full Speed Host (Type A) (1) USB 2.0 Full Speed Client (Type Mini B) |
|---|---|
| Video Output | 1 digital video output |
Environmental Ratings
| IP Rating | Ingress Protection (IP) engineered to IP67 (dust tight and water submersion) and IP65 (dust tight and water jets) per IEC 60529-2004 (Degrees of Protection provided by enclosures—IP Code). The product rating is confirmed by means of Olympus’ internal design verification test process. |
|---|---|
| Explosive Atmosphere | MIL-STD-810F, Method 511.4, Procedure 1. |
| Shock Tested | MIL-STD-810F, Method 516.5, Procedure I, 6 cycles each axis, 15 g, 11 ms half sine. |
| Vibration Tested | MIL-STD-810F, Method 514.5, Procedure I, Annex C, Figure 6, general exposure: 1 hour each axis. |
| Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Battery Storage Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
Pulser
| Pulser | Turnable square wave |
|---|---|
| PRF | 10 Hz to 2000 Hz in 10 Hz increments |
| Energy Settings | 100 V, 200 V, 300 V, or 400 V |
| Pulse Width | Adjustable from 25 nsec to 5,000 nsec (0.1 MHz) with PerfectSquare™ technology |
| Damping | 50, 400 Ω |
Receiver
| Maximum Input Signal | 20 Vp |
|---|---|
| Receiver Input Impedance | 400 Ω ± 5% |
| Receiver Bandwidth | DC to 26.5 MHz at -3 dB (standard version) 0.2 to 26.5 MHz at -3 dB (ISO 22232-1:2020 compliant version) |
| Digital Filter Settings | 8 digital filter sets (standard version) 7 digital filter sets (ISO 22232-1:2020 compliant version) |
| Rectification | Full-Wave, Positive Half-Wave, Negative Half-Wave, RF |
| System Linearity | Horizontal: ± 0.5% FSW |
| Resolution | 0.25% FSH, Amplifier Accuracy +/- 1dB |
| Reject | 0 to 85% FSH in 1% increment positions |
| Amplitude Measurement | 1.25% to 110% full screen height |
| Measurement Rate | Equivalent to PRF in all modes (single shot) |
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 60 × 60 × 50 cm |
