Hamar Laser S-660 Shaft Alignment System

Description

Hamar Laser S-660 Shaft Alignment System offers the best value in entry-level shaft alignment lasers. Its Dual-Fan™ technology provides the highest accuracy of all the entry level systems without the limitations of 2 laser/2 detector type systems. Choose from a portable smart phone or rugged PDA to display our Couple5 Shaft Alignment Software.

Hamar Laser S-660 Shaft Alignment System Features:

• Dual-Fan™ Measurement Technology – allows highly accurate measurement of offset and angle simultaneously using two, unidirectional, 0.5-degree laser fans and two PSDs, providing full angular measuring range over the full operating range between laser and target
• Bluetooth® Wireless Communication – sealed inside the iP67 housing, our Bluetooth transmitter has a range from target to PDA of up to 33′ (10 m).
• True PSD Detector Technology – 1-axis PSD technology provides 1 micron resolution with a detector size of 20 mm (V) x 1 mm (h).
• Highest Entry-Level System Accuracy – Up to 5 x higher sensor accuracy than our competitors, the s-660 gives you the most accurate measurement of any entry-level shaft alignment system.
• Industry’s Longest Wireless Battery Life – laser and target use the latest in lithium polymer battery technology, which offers the industry’s longest battery lives of over 14 hours of continuous use!
• Smart Phone Display Platform – the S-660 uses the latest in smart phone technology as a platform for our Couple5 software, making it easy to find replacements if the phone is damaged or stolen.
•  Text Message Reports – Utilizing commercially available smart phone technology, alignment data can easily be sent as a text attachment to any cell phone or email in the world.

Hamar Laser S-660 Shaft Alignment System Included:

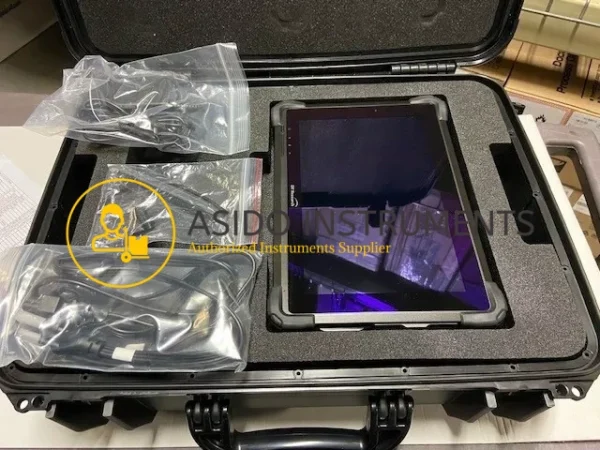

• Hamar Laser S-660 Shaft Alignment System with Accessories

You may also be interested in GSSI UtilityScan Pro GPR Industry

Hamar Laser S-660 Shaft Alignment System Specifications:

• Laser/Target Unit Size
  4.2” x 3.3” x 1.94” (107 mm x 84 mm x 49 mm)
• Housing Material
  Impact resistant plastic
• Detector Type & Size
  1-axis PSD 20×1 mm (h) provides 2 continuously updating alignment axes (1 alignment plane).
• Ambient Light Protection
  Yes via blinking-laser algorithm embedded in all Stealth targets
• Target Measurement Resolution
  Offset: 1.0 micron (.00004”)
  Angular: 0.025 mm/m (.0003”/ft.)
• Target Measurement Accuracy
  Offset: <0.75%
  Angular: <1.5%
• Angular Sensor Range
  /- 2° ( /- .034”/inch or 3.4 mm/100 mm)
• Laser Type
  650 nm dual-fan laser with 0.5° fan <0.9mW
• Communication between Target & Data Analyzer
  Wireless Bluetooth® Class 2 – 2.4 ghz
• Wireless Range
  Up to 33 feet (10 M)
• Ruggedized Display Platform
  Industrial tablet with 8”/10” touchscreen. MILSPEC 810G/IP65
• Rotation Sensor (3rd axis)
  Accelerometer Resolution: 0.1°
  Accuracy: /-1°. Measurement accuracy not affected by rotation sensor accuracy.
• Environmental
  IP67 (laser & target). IP65 (R-1342T2).
• Bracket Set
  Covers 1” (25.4 mm) to 6” (152.4 mm) diameter shafts.
  Comes with 6” (152.4 mm) posts
• Application Range
  15’ (4.5 m) between laser and target
• Operating/Storage Temperature
  Laser/Target: 5°F to 140°F (-15°C to 60°C) for laser, target. 32°F to
  120°F (0°C to 49°C) for R-1342CRT, -4°F to 140°F (-20°C to 60°C) for
  R-1342RT, -4°F to 140°F (-20°C to 60°C) for R-1342T2
• Battery Life Target
  15 hours continuous use with Bluetooth® — 16 hours with backup cable. Target can be plugged into power source during use Battery status indicator for both T-1280 Target and tablet.
• Battery Life Laser
  150 hours continuous use. Blinking LED indicates low battery status
• Battery Life Tablet
  Up to 5 hours for R-1342CRT or 8 hours for R-1342RT/T2. Normal Use
