Pinpoint Laser Systems Microgage PRO Plus

Description

Pinpoint Laser Systems Microgage PRO Plus is the next generation in laser measuring and alignment tools.  Simplifying the inspection and alignment process, the microprocessor uses Smart data technology to equip its user with step by step instructions and easy to use data giving you the answers you need. This extremely versatile measuring and alignment tool combines key features and capabilities into one portable, compact, easy to use, product for multiple industries.

Microgage PRO Plus works on a very simple principle: Laser light travels in a straight line. If you attach a laser transmitter to one assembly and a laser receiver to another, then the alignment of the two assemblies will equal the X/Y displacement of the laser beam at the receiver. And Microgage PRO Plus measures all his with a precision of 0.0001 inch over distances of up to 165 feet.

Pinpoint Laser Systems Microgage PRO Plus Features:

• Smart Display
• Bright, high-definition, color readout.
• The digital data of the laser’s position will read “0” for height & lateral readings if laser & receiver rest on the same plane & against a straight guide rail. If the receiver is moved, the measurement readings will change accordingly.
• On-board microprocessor provides instructions & stores thousands of measurement readings.
• Durable enclosure
• 20 Hours run time on rechargeable batteries.

Included:

• Microgage PRO Plus Smart Display Unit
• Microgage PRO Plus Laser Transmitter
• Microgage 2-Axis PRO Plus Receiver
• Adjustable Receiver Mount
• Magnetic On/Off Mount
• A/C Power Supply
• Computer Interface Cable
• Pinpoint CaptureTM Software
• Manual

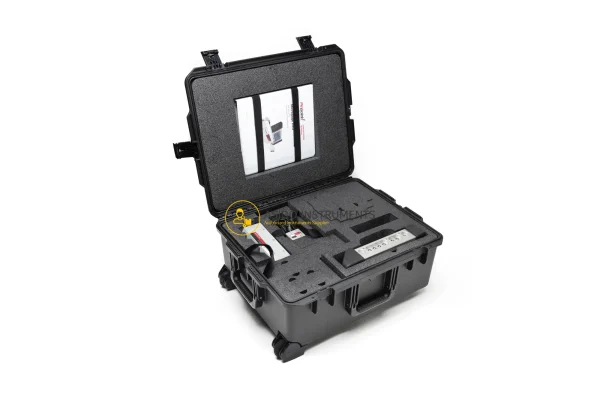

• Durable Carrying Case With Foam Insesrts



You may also be interested in SKF TKSA 60 Laser Shaft Alignment Tool

Specifications:

• Measuring System
  Measurement resolution 0.0001″ (2.5 micron)
  Operating distance 6″ to 165 feet
  Measurement accuracy ± 0.0002″ or 1% of measurement (5 micron)
  Measurement range ± 0.350″ (± 9mm)*
• Laser Transmitter
  Laser source laser diode, 635 Nm, < 1 mW
  Laser accuracy ≤ 2 arc-seconds
  Laser repeatability ≤ 1 arc-second
  Laser level 10 arc-second, precision bubble, machinist grade
  Laser power 4, AA alkaline batteries & rechargeable option
  Laser run-time ≥ 20 hours
  Laser controls on-off switch, LED; laser on & low battery
  Laser dimensions 8.0″ L x 2.0″ W x 3.0″ H (203mm x 51mm x 76mm)
  Laser mounting points ¼-20 and 10-32 mounting points
  Laser housing solid machined aluminum, hard anodized coating
• Receiver
  Active detection area 0.75″ x 0.75″ (19mm x 19mm)
  Receiver housing solid machined aluminum & hard anodized coating
  Receiver mounting ¼-20 & 10-32 mounting points
  Receiver connections 10′ durable cable or wireless option
  Receiver dimensions* 2.0″ x 2.0″ x 2.0″, 2.0″ x 2.0″ x 3.0″ (wireless)
  Receiver options standard, bore, spindle, transparent, 4 axis and custom
