Name: Sokkia iX-502 2 Robotic Total Station
Brand: Sokkia
SKU: SiX5022RTS
Availability: InStock

Sokkia iX-502 2 Robotic Total Station

~~$13,000.00~~ $6,500.00

In Stock

Manufacturer: Sokkia
Model: iX-502 2 Robotic Total Station

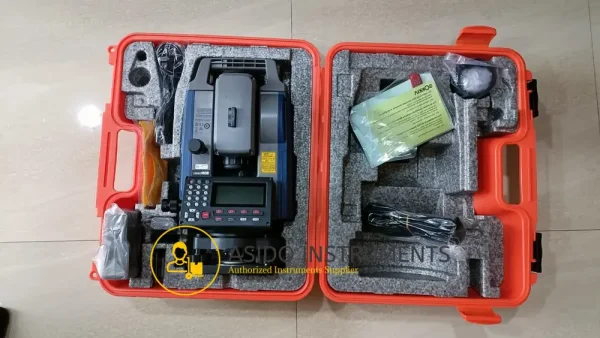

Included: Sokkia iX-502 2 Robotic Total Station with Accessories

In Stock

Description

Sokkia iX-502 2 Robotic Total Station is an efficient single-operator robotic system with the power of long-range reflectorless measurements. It can measure distances of up to 13,123 feet (4,000m) when using a prism and up to 1,968 feet (600m) in reflectorless mode. With a rotation speed of 85 degrees per second, this robotic total station provides a high-performance solution allowing construction professionals the smoothest and most accurate prism-tracking possible.

Outlined with advanced instrument algorithms, the Sokkia iX-500 series delivers the confidence you need without losing line-of-sight in all prism conditions. Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than previous robotic instruments, yet twice as fast. Additionally, it has customizable reporting features with intuitive processing within Magnet Office Tools.

Sokkia iX-502 2 Robotic Total Station Features:

Choice of accuracy and RC handle
Reflectorless
Range up to 1,968 feet
Optional, pre-installed remote control handle
Integrated Bluetooth
Rotation speed of 85 degrees per second
Advanced angle accuracy
Excellent instrument algorithms
Customizable reporting features within Magnet Office Tools
User friendly interface
Large and bright color touch screen
Water resistant and dustproof to IP65

Included:

(1) Sokkia iX-500 Series Robotic Total Station
(2) Battery BDC70
(2) Adjusting pin
(2) Carrying strap
(1) CDC68 Charger
(1) Power cable
(1)Stylus pen
(1) Lens cap
(1) Lens hood
(1) Tool pouch
(1) Screwdriver
(1) Lens brush
(1) Hexagon wrench
(1) Silicon cloth
(1) Startup guide
(1) USB flash drive
(1) Serial card
(1) Laser caution sign-board
(1) Carrying case
(1) Export restrictions card
(1) Manual registration
(1) Registration card
(1) Certification card
(1) Encryption card
(1) User manual

You may also be interested in Sokkia iX-1005 5 Robotic Total Station

Specifications:

Weight	10.58 lbs (4.8 kg)
Warranty	5-year
Protection Class	IP65 (dust proof and water jets resistant)
Angle Measurement
Accuracy	Choice of 2-second, 3-second or 5-second
Distance Measurement
Unit of Measure (distance display)	Selectable: m/ft/in.
EDM Accuracy (Precision)	±2mm + 2 ppm
Tilt Sensor/Compensator
Range	±6 feet
Type	Liquid 2-axis tilt sensor
Battery/Power
Power Source	Battery
Battery Life	Up to 4 hours
Battery Life Alert	Yes
Optical Plummet
Magnification	30x
Telescope
Magnification	30x
Reflectorless	Yes
Display and Keypad
Type	Color touch LCD
Keys	24 keys with illuminator
Touchscreen	Yes
Backlight	Yes
Temperature
Operating	-4Fº~122ºF (-20ºC~50ºC)
Applications
Surveying and Construction	Yes
Mapping and GIS (geographic information systems)	Yes
Utilities	Yes
Environment Studies	Yes
Geomarking	Yes
Archaeology	Yes
Accident Reconstruction	Yes
Measurement Range (under fair weather conditions)
Single Prism	13,123 ft (4,000 m)
No Prism	1,968 ft (600 m)
Functions
Coordinate Measurement Point	Yes
Angle and Distance Stake Out	Yes
Interface
Bluetooth	Yes
USB	2.0 (Host + Slave)
