Name: Leica HDS 4050 ScanStation 2
Brand: Leica
SKU: LHDS4050S2
Availability: InStock

Leica HDS 4050 ScanStation 2

~~$3,600.00~~ $1,800.00

In Stock

Manufacturer: Leica
Model: HDS 4050 ScanStation 2

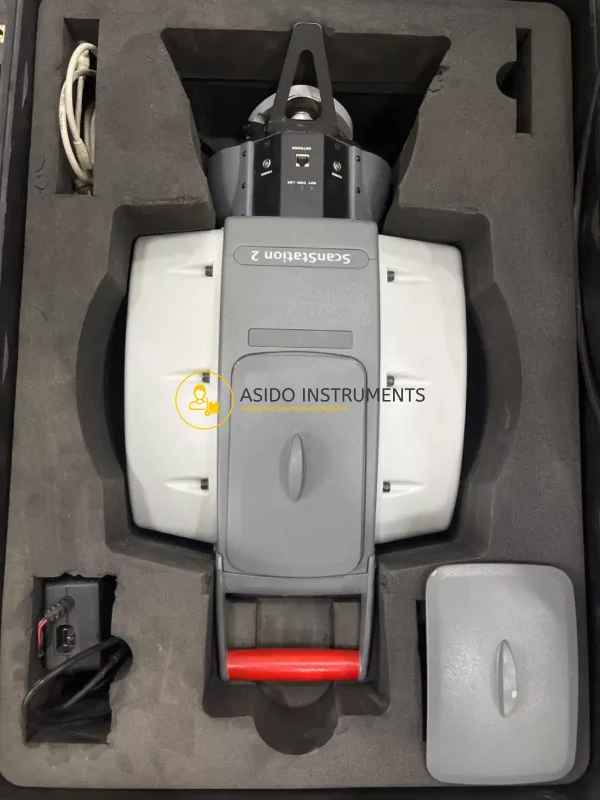

Included: Leica HDS 4050 ScanStation 2 Surveying Laser Scanner[ID -L/T*], Carrying Case

In Stock

Description

Leica HDS 4050 ScanStation 2 With a 10-times boost in maximum instantaneous scan speed and the full freedom and accuracy of a total station, Leica ScanStation 2 has lifted laser scanning to the next level.

Leica HDS 4050 ScanStation 2 speed and productivity boost builds on the already industry-leading versatility of the ScanStation class of laser scanner to make High-Definition Surveying (HDS) profitable for even more as-built and topographic survey projects.

Leica HDS 4050 ScanStation 2 for many as built and topographic surveys, laser scanners have already proven to significantly reduce field labor compared to traditional methods. Leica HDS 4050 ScanStation 2 jump-step increase inpulsed scan speed further slashes these costs – field labor is now as little as one-fifth of that of traditional methods for many projects.

Features:

A New Level of Speed and Productivity
Dramatically faster scanning also lets users:
A New Level of Versatility for Laser Scanning
Infrastructure
Sites
Buildings
Very High Speed Pulsed Laser
Integrated High-Resolution Camera
HI Marks, Tribrach Mount, Carry Handle, and QuickScan™ Button
Advanced Timing Electronics
X-function Compatibility
Advanced Scripting Controls
Integrated, Dual-Axis Level Compensator
External Bubble Level

Included:

Leica HDS 4050 ScanStation 2 Surveying Laser Scanner[ID -L/T*]
Carrying Case

You may also be interested in Leica GS18 GNSS RTK Rover

Specifications:

Instrument Type	Pulsed, dual-axis compensated, very-high speed laser scanner, with survey-grade accuracy, range, and field-of-view
User interface	Notebook or Tablet PC
Camera	Integrated high-resolution digital camera
Accuracy of single measurement	Position* 6 mm Distance* 4 mm Angle (horizontal/vertical) 60μrad/60μrad (3.8 mgon/3.8 mgon) **
Laser spot size	From 0 – 50 m: 4 mm (FWHH-based); 6 mm (Gaussian-based)

Modeled surface precision/noise	2mm **
Target acquisition	2 mm std. deviation
Dual-axis compensator	Resolution 1 “, dynamic range +/- 5′
Data integrity monitoring	Periodic self-check during operation and start-up
Laser scanning system
Range	300 m @ 90 %; 134 m @18 % albedo
Scan Rate	Maximum instantaneous: up to 50,000 points/sec Average: dependent on specific scan density and field-of-view
Scan Density	<1 mm max, through full range; fully selectable horizontal and vertical spacing; single point dwell capability
Laser Class	3R (IEC-60825-1), visible green
Lighting	Fully operational between bright sunlight and complete darkness
Power Supply	36 V; AC or DC; hot swappable
Specifications subject to change without notice See Leica ScanStation 2 Product Specifications for full technical data* At 50 m range, one sigma ** One sigma
