Name: Leica ScanStation P50
Brand: Leica
SKU: LSP50
Availability: InStock

Leica ScanStation P50

~~$18,000.00~~ $9,000.00

In Stock

Manufacturer: Leica
Model: ScanStation P50
Included: (1X) Laser P50 Scanner ScanStation, (1X) GVP645 Transport Container, (1X) GDF323 Tribrach without Optical Plummet, (4X) GEB242 Li-Ion Battery, (3X) GKL311 Basic Charger, (1X) GEV228 Data Cable, (1X) GHM008 Height Meter, (1X) GHT196 Mount for Height Meter, (1X) A certificate with Accuracy Characteristics, (1X) User Manual

In Stock

Description

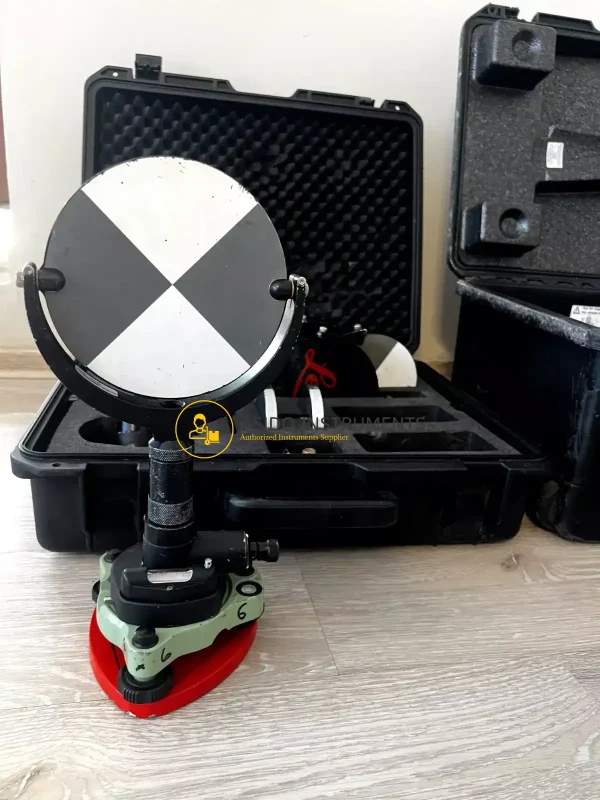

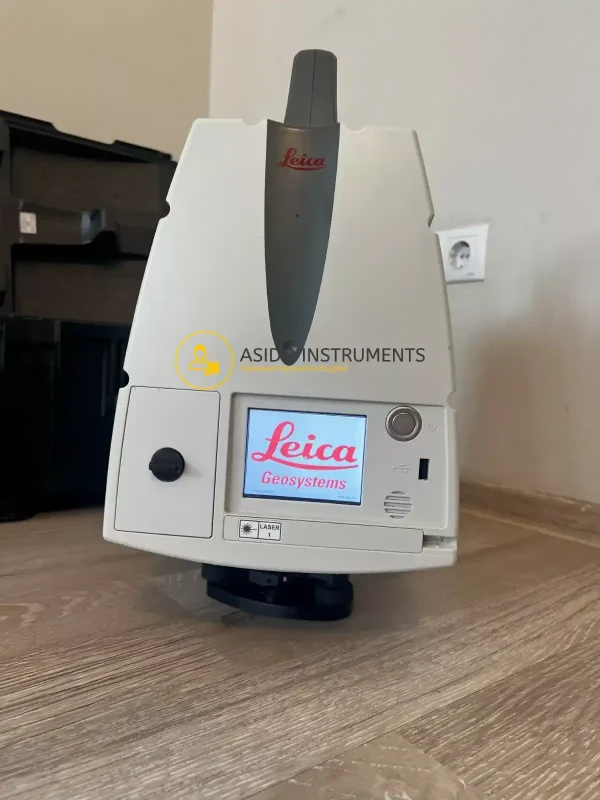

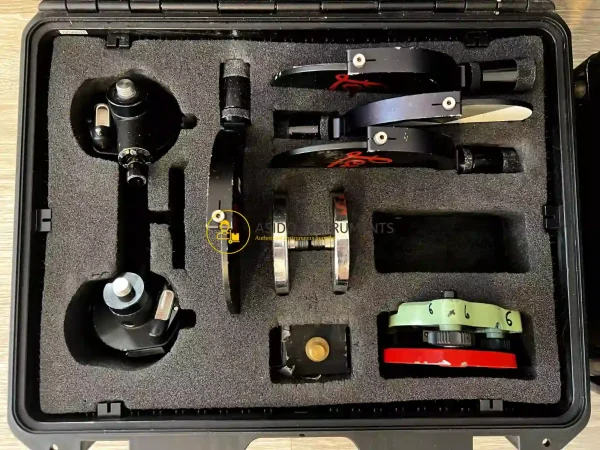

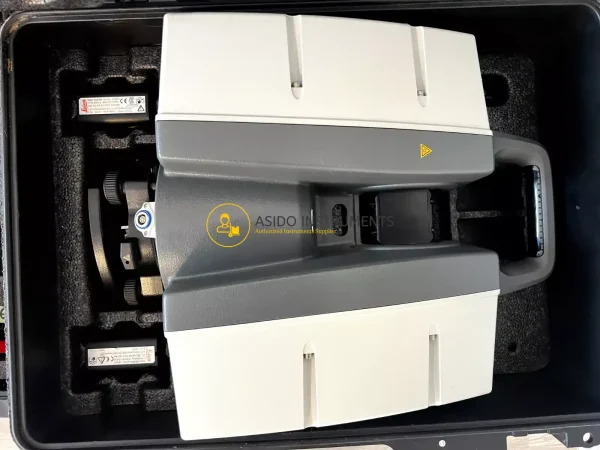

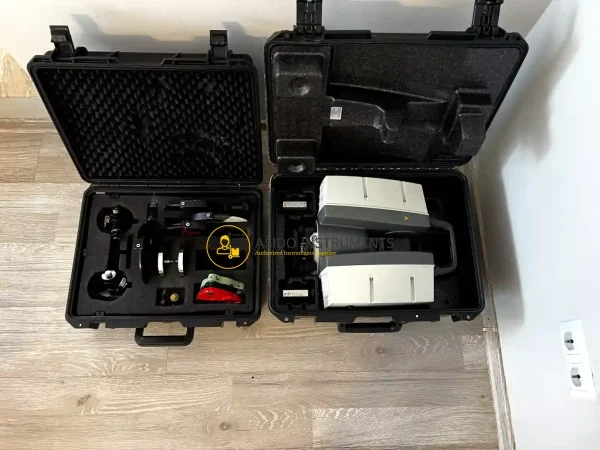

Leica ScanStation P50 set up is in MINT condition and ready to go to work. It comes with complete KIT shown in the pictures and This unit is loaded with the latest firmware version 2.80.

Leica ScanStation P50 capture the world’s tallest buildings, document the widest infrastructure objects, or scan the biggest open-pit mines, you know long-range scanning will be essential for your job. Leica ScanStation P50 adding long range scanning capability to the market-leading ScanStation P-series, the new Leica ScanStation P50 is the right choice, because of every detail matters.

Leica ScanStation P50 delivers the highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 Mio points per second at ranges of > 1 km.

Leica ScanStation P50 Features:

Highest quality 3D data and HDR imaging
An extremely high-speed scan rate of 1 Mio points per second
Ranges of up to 1 kilometer
Low range noise
Survey-grade dual-axis compensation

Leica ScanStation P50 Included:

(1X) Laser P50 Scanner ScanStation
(1X) GVP645 Transport Container
(1X) GDF323 Tribrach without Optical Plummet
(4X) GEB242 Li-Ion Battery
(3X) GKL311 Basic Charger
(1X) GEV228 Data Cable
(1X) GHM008 Height Meter
(1X) GHT196 Mount for Height Meter
(1X) A certificate with Accuracy Characteristics
(1X) User Manual

You may also be interested in Leica ScanStation P40

Specifications:

SYSTEM ACCURACY
Accuracy of single measurement *
Range accuracy	1.2 mm + 10ppm over full range (120 m / 270 m mode) 3 mm + 10ppm over full range (570 m / >1 km mode)
Angular accuracy	8” horizontal; 8” vertical
Target acquisition **	2mm standard deviation at 50m
Dual-axis compensator	Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1”, dynamic range ±5’, accuracy 1.5”
DISTANCE MEASUREMENT SYSTEM
Type	Ultra-high speed time-of-flight enhanced by Waveform Digitising (WFD) technology
Wavelength	1550nm (invisible) / 658nm (visible)
Laser class	1 (in accordance with IEC 60825:2014)
Beam divergence	< 0.23mrad (FWHM, full angle
Beam diameter at front window	≤ 3.5mm (FWHM)
Range and reflectivity	Minimum range 0.4 m
	Maximum range mode	Reflectivit
	120 m	8%
	270 m	34%
	570 m	60%
	>1 km	80%
Scan rate	Up to 1,000,000 points per second
Range noise *	0.4mm rms at 10m0.5mm rms at 50m
POWER
Power supply	24 V DC, 100 – 240 V AC
Battery type	2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable)
Duration	Internal > 5.5h (2 batteries)External > 7.5h (room temp.)
PHYSICAL
ScannerDimensions (D×W×H) Weight	238mm × 358mm × 395mm / 9.4” × 14.1” × 15.6” 12.25kg / 27.0lbs, nominal (w/o batteries)
Battery (internal)Dimensions (D×W×H) Weight	40mm × 72mm × 77mm / 1.6” × 2.8” × 3.0” 0.4kg / 0.9lbs
Mounting	Upright or inverted
