Pinpoint Laser Systems Microgage 2D

Description

Pinpoint Laser Systems Microgage 2D can be adapted to a wide variety of industrial measuring and alignment requirements. Each receiver measures in two axial directions (X & Y) and can be used for checking straightness, flatness, parallelism, squareness, bores, spindles, and other alignment needs.

Pinpoint Laser Systems Microgage 2D Features:

• Large LCD readout
• The digital data of the laser’s position will read “0” for height & lateral readings if laser & receiver rest on the same plane & against a straight guide rail.
• If the receiver is moved, the measurement readings will change accordingly.
• On-board microprocessor stores up to one thousand measurement readings.
• Durable enclosure
• Runs on two C batteries (20 hour run time).

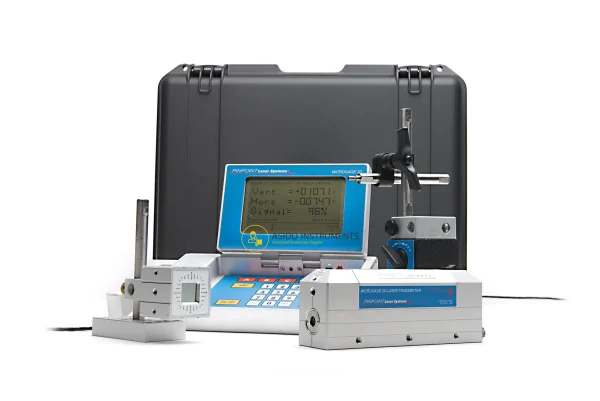

Pinpoint Laser Systems Microgage 2D Included:

• Laser Transmitter
• Digital Receiver
• Portable Display Unit
• Adjustable Mounting Hardware
• Operations Manual
• Carrying Case

You may also be interested in Pinpoint Laser Systems Microgage PRO Plus

Specifications:

• Measuring System:
  Measurement Resolution: 0.0001 inch (2.5 micron)
  Measurement Range: ±0.350 inch dual axis X-Y ± 0.5” single axis (±9mm or ±13mm)
  Operating Distance: 0 to 150 feet standard (> 150’ optimized)(45 meters)
  Measurement Accuracy: ±0.0002 inch or 1% of measurement (5 micron)
• Laser Characteristics:
  Laser Source: Laser Diode, 635 Nm, < 1mW, Class IIIA (Class II Available)
  Laser Beam Accuracy: < 2 arc-seconds
  Laser Beam Repeatability: < 1 arc-second
  Laser Level: Bubble, machinists level < 10 arc-second
  Laser Power: 4 AA-Alkaline batteries
  Laser Run Time: > 20 hours per battery set
  Laser Controls: On/Off switch, laser on, low battery
  Laser Dimensions: 8” long x 2” wide x 3” high (203mm x 51mm x 76mm)
  Laser Mounting Points: 1/4-20 and 10-32 mounting holes
  Laser Housing: Solid machined aluminum & hard anodized coating
• Receiver Characteristics:
  Active Detection Area: .750 inch x .750 inch (19mm x 19mm)
  Protective Window: Bandpass filter, metallic coating
  Receiver Dimensions: 2.00” high x 2.00” wide x 2.00” deep (51mm)
  Receiver Mounting: 1/4-20 and 10-32 mounting holes
  Receiver Cable: 10’ long, reinforced cladding, black

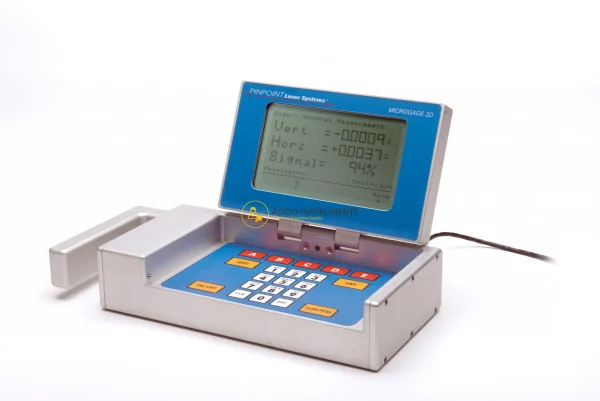

• Display Characteristics:
  Display Unit: Multi, dual-axis processing system
  Display Inputs: Up to 4 dual-axis receivers at one time
  Display Screen: LCD graphic screen 5.0” x 3.0” (127mm x 76mm)
  Display Controls: Keypad, zero, function, multi-purpose keys
  Display Information: X/Y data, signal, functions, alignment steps
  Display Units: Inch, MM, Mils, Custom
  Display Resolution: 0.0001 inch (2.5 micron)
  Display Processing: Multiple user programs for alignment
  Display Connections: 4 Receiver inputs, USB, Aux, Serial
  Display Interface: USB & Serial RS232c
  Interface Communication: Pinpoint Capture (Windows-based)
  Display Power: 2 C-cell Alkaline
  Display Run Time: >30 hours per battery set
  Display Housing: Solid machined aluminum & hard anodized coating
  Display Housing Design: Flip-up display, reversible handle
  Display Housing Dimensions: 12” long x 5”wide x 2”high (305mm x 127mm x 51mm)
  Operating Conditions: 30 degree to 130 degree F (–10 degree to 55 C), Humidity 0–95%, non-condensing.
