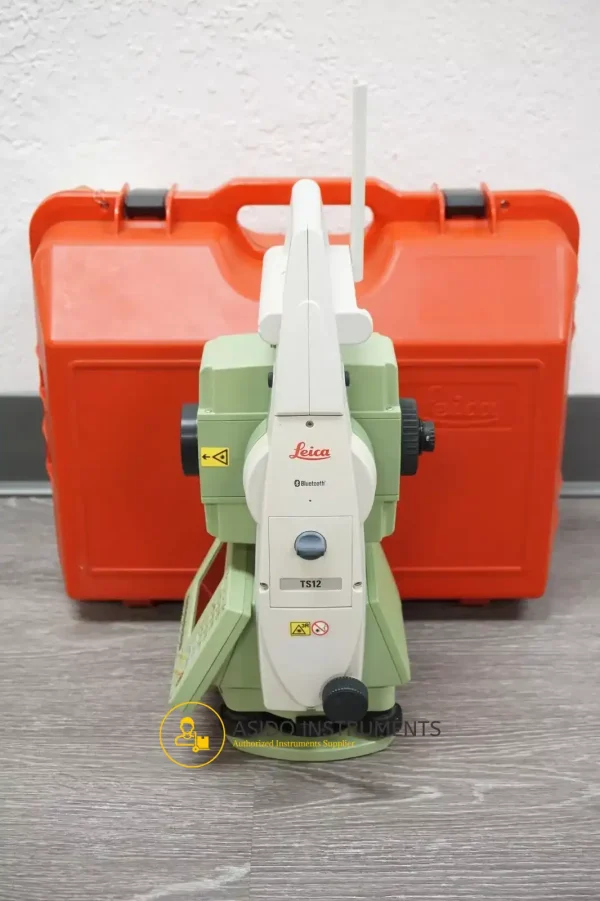

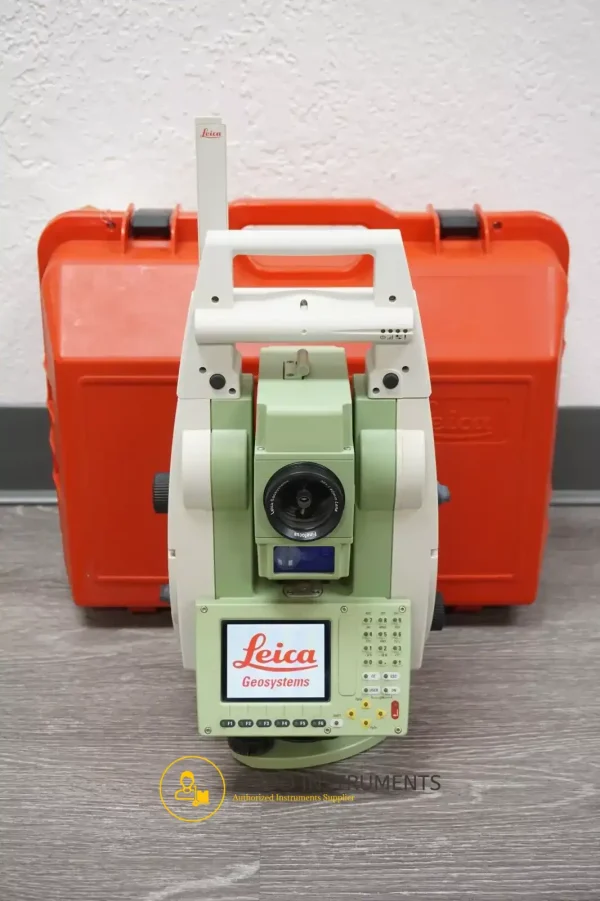

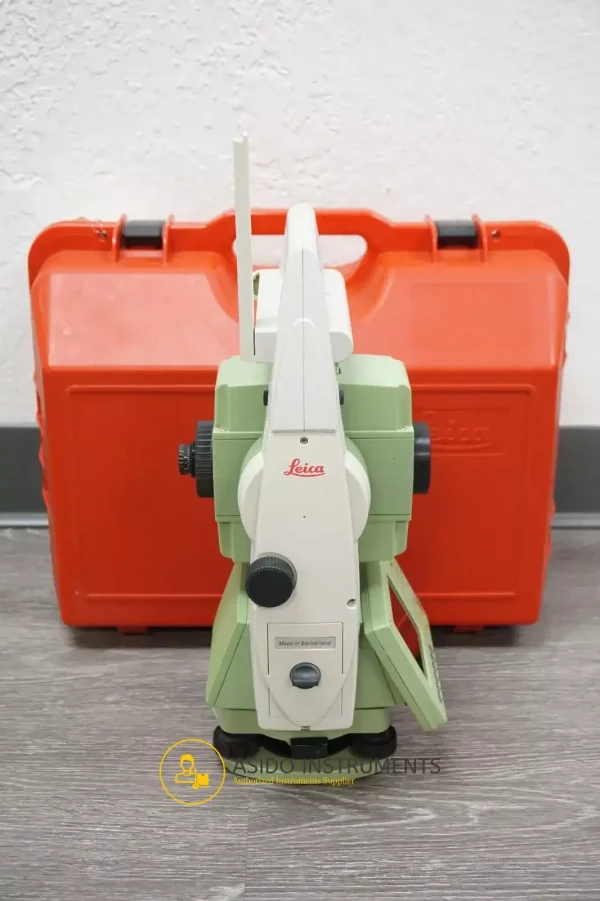

Leica TS12P Robotic Total Station

Description

Leica TS12P Robotic Total Station is a robotic surveying package that will find, lock, and measure up to 1000m with a single keypress. The PowerSearch sensor will find any prism type within seconds, locking on to a 360° prism up to 300m (lock to 600m). Connectivity to the Leica TS12P Robotic Total Station is provided by the Leica CS10 radio field controller, offering long-range, secure, and fast wireless data transfer.

Leica TS12P Robotic Total Station using SmartWorx Viva LT the CS10 uses touch screen technology and function keys to collect data transmitted from the TS12. Data is stored in the internal memory, SD, or CF-card in the controller.

Leica TS12P Robotic Total Station is powered by a Lithium-Ion battery which will give 5 – 8 hours of use in the field. Working in a range of -20°C to +50°C, the unit is sealed to IP54 standards.  Weight of total station: 4.8-5.5kg.

Leica TS12P Robotic Total Station Performance Robotic package sets a new standard. Everything you need is in one package to begin efficient surveying today.

Leica TS12P Robotic Total Station is packed with features, such as the unique PowerSearch sensor which finds prisms regardless of their location in seconds and the lightweight Leica CS10 controller which provides secure wireless connectivity to the total station.

Leica TS12P Robotic Total Station Features:

• With PinPoint EDM, Leica Viva TS12 Robotic delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size, and measurement time.• 1 mm + 1.5 ppm to prism
  • 2 mm + 2 ppm to any surface
  • 1000 m range without a prismLeica Viva TS12 Robotic uses years of experience to optimally combine the world’s best total station sensors: angles, distances, drives, and the patented PowerSearch target recognition camera.
• Search ¨C the unique PowerSearch finds your prism within seconds
• Lock ¨C Leica Viva TS12 Robotic stays locked onto your prism in the most demanding environments
• Measure C PinPoint EDM seamlessly harmonizes with precise angle sensors to complete the measurement process
• The package comes with 1 color keyboard, laser plummets, Bluetooth, RH15 radio handle, 2 GEB221 batteries, charger, 256MB CompactFlash card, and GDF121 Pro tribrach.
• Package does not include a controller (Leica CS20 or Carlson Surveyor 2), data collection software (Leica SmartWorx or Carlson SurvCE), prism pole, 360-degree prism, brackets, and clamps, or tripod.

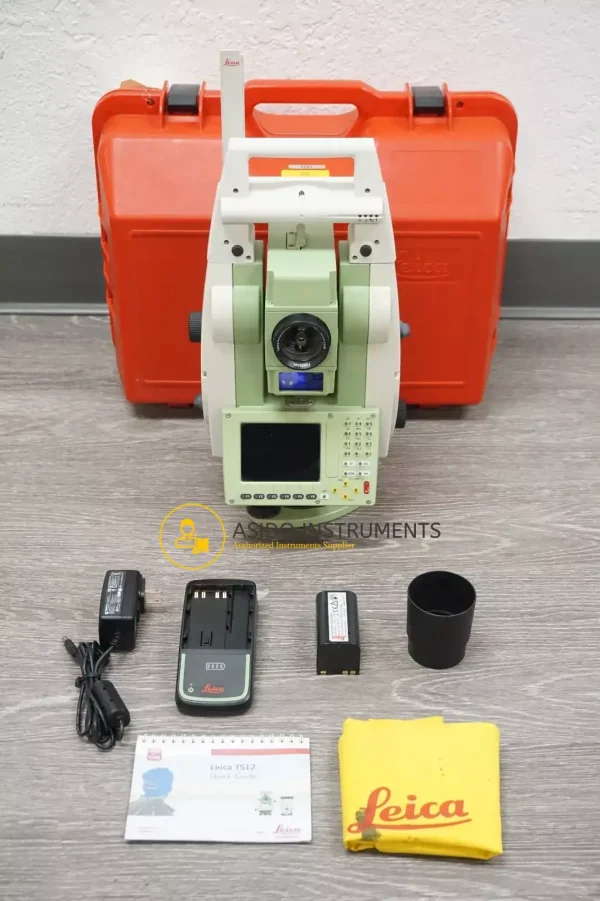

Leica TS12P Robotic Total Station Included:

• Leica TS12 Total Station P R400 5″
• 2 x Battery GEB221
• GKL311 Compact Flashcard
• Calibration certificate
• RH17 Radio Handle
• Leica 512MB Industrial CF Card
• Leica Height Meter
• Leica GEB222 battery for instrument
• Battery charger
• Leica Pro Tribrach
• Lens Shade and Raincoat

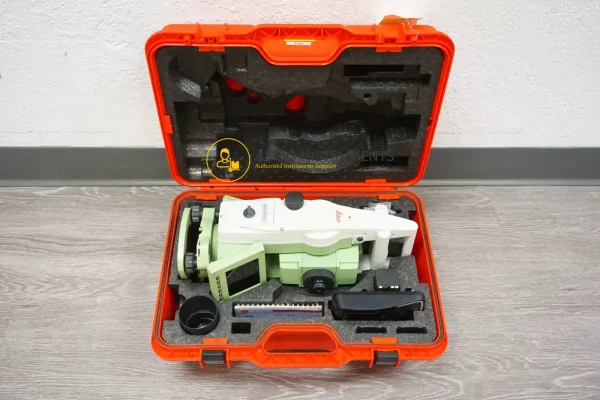

• Hard case
• Leica CS15 Data Collector with high visibility color display, Smartworx v5.7 software
• 16gb SD Memory Card and Card Reader
• Battery and Charger
• Leica GRZ122 360 degree prism
• Rod Bracket
• Pelican hard case

You may also be interested in Leica TCRP 1201 R300 Robotic Total Station

Leica TS12P Robotic Total Station Specifications:

• Angular Measurement Accuracy Hz, V 1 2’’ (0.6 mgon), 3’’ (1 mgon), 7’’ (2 mgon)
• Display resolution 0.1’’ (0.1 mgon)
• Method absolute, continuous, diametrical
• Compensation Quadruple axis compensation
• Compensator setting accuracy 0.5’’ (0.2 mgon), 1.0’’ (0.3 mgon), 1.5’’ (0.5 mgon)
• Distance Measurement Distance Measurement (Prism)
• Range2
• Round prism (GPR1) 3500 m (12000 ft)
• 360° prism (GRZ4, GRZ122) 2000 m (7000 ft)
• Mini prism (GMP101) 2000 m (7000 ft)
• Accuracy3,4 / Measurement Time
• Standard 1 mm + 1.5 ppm / 2.4 s
• Tracking 3 mm + 1.5 ppm / <0.15s
• Distance Measurement (Non-Prism)
• Range5
• PinPoint R400 / R1000 400 m (1310 ft) / 1000 m (3280 ft)
• Accuracy3,6 / Measurement Time
• Pinpoint R400 / R1000 2 mm + 2 ppm / typ. 3 s
• General
• Display resolution 0.1 mm
• Laser dot size (Non-Prism) At 30 m: 7 mm x 10 mm, at 50 m: 8 mm x 20 mm
• Telescope
• Magnification 30 x
• Free objective aperture 40 mm
• Field of view 1°30’ (1.66 gon) / 2.7 m at 100 m
• Keyboard and Display
• Display / Keyboard 1/4 VGA (320*240 px), color, illumination, touch screen / 28 keys
• Operation
• Sensitivity of Circular Level 6’ / 2 mm
• Centering accuracy of Laser plummet 1.5 mm at 1.5 m
• Power Management
• Internal Battery / Voltage / Capacity / Operating Time Lithium Ion / 7.4V / 4.4Ah / 5 – 8 h (GEB221)
• Weight and Dimensions
• Weight of Total Station / Battery GEB221 / Tribrach GDF121 4.8 – 5.5 kg / 0.2 kg / 0.8 kg
• Environmental specifications
• Working / Storage temperature range -20° C to +50° C / -40° C to +70° C
• Dust / water (IEC 60529) / Humidity IP54 / 95%, non-condensing
• Guide Light (EGL)
• Working Range 5 – 150 m
• Positioning accuracy 5 cm at 100 m
• Motorization
• Rotation speed 45° (50 gon) / s
