Leica GS07 GNSS Smart Antenna

Description

Leica GS07 GNSS Smart Antenna is Leica Geosystems’ mid-range GNSS smart antenna. It is the light weight, yet robust piece of equipment which comes with functionality focused on exactly what you need, with the highest quality levels one would expect from a premium Leica Geosystems GNSS portfolio.

Leica GS07 GNSS Smart Antenna guarantees fast and reliable stake out and data capture combined in an easy-to-use rover with 320 channels, multi frequency and multi constellation. Leica GS07 GNSS Smart Antenna delivers true Leica Geosystems quality.

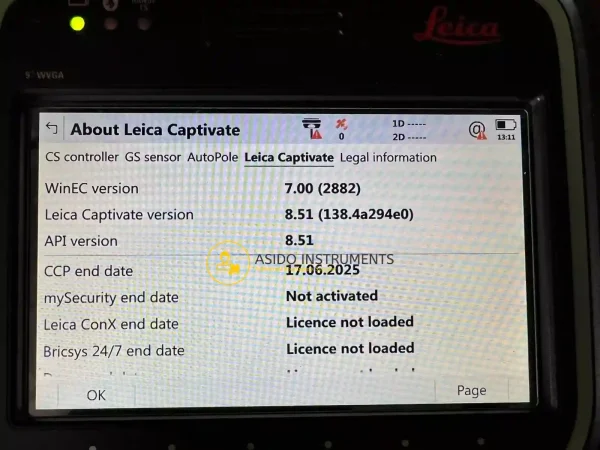

Leica GS07 GNSS Smart Antenna sensor combines seamlessly with the completely engaging Leica Captivate software for a powerfully immersive experience. Through the simplicity of touch, management of complex data is made extraordinarily enjoyable and actionable.

Leica GS07 GNSS Smart Antenna Features:

• ENGAGING SOFTWARE
• INFINITE POSSIBILITIES
• POWERFUL HANDHELD DEVICES
• CUSTOMER CARE AT A CLICK

Leica GS07 GNSS Smart Antenna Included:

• Leica GS07 GNSS receiver
• LOP75 Glonass option
• LOP75 Galileo option
• Leica CS20 LTE Controller
• Leica Captivate- Measure & Stakeout software
• GEB212 Li-Ion batteries (2)
• GKL311 battery charger
• GVP734 hard case
• GHT66 & GHT63 holder and clamp
• Seco 5125-20-FLY 2m telescopic aluminum rover rod

You may also be interested in Leica GMX910 Smart Antenna

Leica GS07 GNSS Smart Antenna Specifications:

Leica GS07	Leica GS14	Leica GS16	Leica GS18 T	Leica GS10	Leica GS25
Signal tracking	Multi-frequency	Dual-frequency	Multi-frequency	Multi-frequency	Multi-frequency	Multi-frequency
GPS
GLONASS
Galileo
BeiDou
QZSS
SBAS
SmartLink fill
SmartLink
Tilt compensation
Single baseline RTK	Hz 10 mm + 1 ppmV 20 mm + 1 ppm	Hz 8 mm + 1 ppmV 15 mm + 1 ppm	Hz 8 mm + 1 ppmV 15 mm + 1 ppm	Hz 8 mm + 1 ppmV 15 mm + 1 ppm	Hz 8 mm + 1 ppmV 15 mm + 1 ppm	Hz 8 mm + 1 ppmV 15 mm + 1 ppm
Network RTK	Hz 10 mm + 0.5 ppmV 20 mm + 0.5 ppm	Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppmV 15 mm + 0.5 ppm
Static (phase) with long observations	Hz 3 mm + 0.5 ppmV 6 mm + 0.5 ppm	Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppmV 3.5 mm + 0.4 ppm
Static and rapid static (phase)	Hz 5 mm + 0.5 ppmV 10 mm + 0.5 ppm	Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppmV 5 mm + 0.5 ppm
Reliability	99,95%	99,99%	99,99%	99,99%	99,99%	99,99%
5 Hz20 Hz positioning
Raw dataRINEX data loggingNMEA out
RTK reference station functionality
CellularUHF Radio (receive & transmit) modem	Controller internal/Receive only	3G	3G	4G	3G	3G
Storage	Controller internal	MicroSD card	MicroSD card	SD Card	SD Card	SD Card
User interface (buttonsLEDsdisplay)	13	27	27	28	27	27
Power, Bluetooth®, USB, RS232
Event, PPS
Operating temperature -40°C to 65°C
IP68 proof against water, sand and dust
Weight (without battery)	0.60 kg	0.93 kg	0.93 kg	1.20 kg	1.20 kg	1.84 kg
