Name: Leica Viva GS15
Brand: Leica
SKU: LVGS15
Availability: InStock

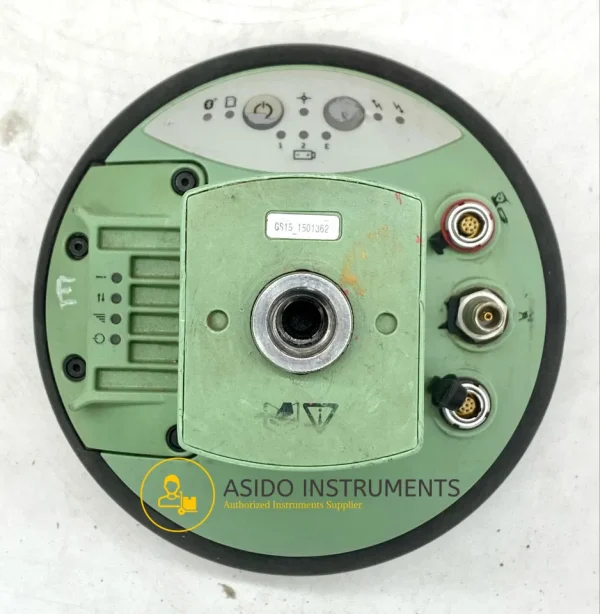

Leica Viva GS15

~~$8,200.00~~ $4,100.00

In Stock

Manufacturer: Leica
Model: Viva GS15
Included: Leica GS15 Base Receiver [ID- -L/T*], Leica GS15 Rover Receiver [ID- -L/T*], Leica CS15 Field Controller [ID- -L/T*], Battery Pack, Carrying Case

In Stock

Description

Leica Viva GS15 offers you the flexibility to choose which wireless communication device best meets your needs now and in the future.

Leica Viva GS15 are supported by intenna technology – a fully-integrated antenna concept. This smart antenna adjusts to any environment and delivers the most accurate results. Eliminate downtime and work as you want with the ability to switch out batteries without powering down.

Providing twice the operation time, the Leica Viva GS15 dual battery option, integrated antenna and exchangeable communication devices are the best elements for a completely versatile GNSS system.

Leica Viva GS15 is accompanied with the revolutionary Captivate software, turning complex datainto the most realistic and workable 3D models. Leica Viva GS15 easy-to-use apps and familiar touch technology, all forms of measured and design data can be viewed in all dimensions.

Leica Viva GS15 Captivate spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both.

Leica Viva GS15 Features:

IP67 Protection
1.34kg Weight (GS15)
-40 to +65° Operating Temperature
Integrated Web Interface
LED Indicator
Bluetooth Communication

Leica Viva GS15 Included:

Leica GS15 Base Receiver [ID- -L/T*]
Leica GS15 Rover Receiver [ID- -L/T*]
Leica CS15 Field Controller [ID- -L/T*]
Battery Pack
Carrying Case

You may also be interested in Leica Viva GS14 GNSS RTK Rover

Leica Viva GS15 Specifications:

Weight & Dimensions
Weight (GS15)	1.34 kg
Weight	3.30 kg standard RTK rover including slot RTK device, controller, batteries pole and bracket
Dimension (GS15) (diameter x height)	196 mm x 198 mm
Environmental specifications
Temperature, operating	–40° C to +65° C, compliance with ISO9022-10-08, ISO9022-11-special, MIL STD 810F – 502.4-II, MIL STD 810F – 501.4-II
Temperature, storage	–40° C to +80° C, compliance with ISO9022-10-08, ISO9022-11-special, MIL STD 810F – 502.4-II, MIL STD 810F – 501.4-II
Humidity	100%, compliance with ISO9022-13-06, ISO9022-12-04 and MIL STD 810F – 507.4-I
Proof against: water, sand and dust	IP68 according IEC60529 and MIL STD 810F – 506.4-I, MIL STD 810F – 510.4-I and MIL STD 810F – 512.4-I Protected against blowing rain and dust Protected against temporary submersion into water (max. depth 1,4 m)
Vibration	Withstands strong vibration during operating, compliance with ISO9022-36-08 and MIL STD 810F – 514.5-Cat.24
Drops	Withstands 1.0 m drop onto hard surfaces
Functional shock	40 g / 15 to 23 msec, compliance with MIL STD 810F – 516.5-I No loss of lock to satellite signal when used on a pole set-up and submitted to pole bumps up to 150 mm
Topple over	Withstands topple over from a 2 m survey pole onto hard surfaces
Power & Electrical
Supply voltage	Nominal 12 V DC Range 10.5 – 28 V DC
Power consumption	Typically: 3.2 W, 270 mA
Internal power supply	Recharge & removable LI-Ion battery, 2.6 Ah / 7.4 V, 2 batteries fit into receiver
Internal power supply, operation time	• 10.00 h receiving RTK data with standard radio • 9.00 h transmitting RTK data with standard radio • 7.50 h RTK via GSM/GPRS connection using 2 internal batteries
External power supply	Rechargeable external NiMh battery 9 Ah / 12 V
Certifications	Compliance to: FCC, CE Local approvals (as IC Canada, C-Tick Australia, Japan, China)
Memory
Memory medium	Removable SD Card: 1 GB
Data capacity	1 GB is typically sufficient for about GPS & GLONASS (8+4 satellites) 280 days raw data logging at 15 s rate
Data recording
Type of data	Onboard recording of: • Leica GNSS raw data • RINEX data
Recording rate	Up to 20 Hz
Buttons	• ON / OFF button • Function button
Button functionality	Function button: • Easy switch between Rover / Base mode • Easy “Here” positioning functionality
Led status indicator	Bluetooth®, position, RTK status, data logging, detailed power status
Additional user interface	Additional web interface functionality provides full status indicator and configuration options
Communications
Communication ports	1 x serial RS232 Lemo 1 x USB / RS232 Lemo 1 x UART serial & USB (for removable internal RTK devices) 1 x Bluetooth® port, Bluetooth® v2.00+ EDR, class 2
No. of simultaneous data links	• Up to 3 data links can be attached and used simultaneously • 2 real-time output interfaces via independent ports, providing identical or different RTK/ RTCM formats
Built In data links
Radio modems	• Fully integrated, fully sealed receive / transmit radios • User exchangeable device • SATEL, Pacific Crest and others • 390 – 470 MHz bandwidth • Transmit power: 0.5 – 1.0 W
Radio modems	• Fully integrated, fully sealed receive / transmit radios • User exchangeable device • SATEL, Pacific Crest and others • 390 – 470 MHz bandwidth • Transmit power: 0.5 – 1.0 W
UHF antenna options	• Fully integrated UHF antenna • External UHF antenna connector (Type QN)
3G GSM / UMTS(HSDPA) phone modem	• Fully integrated, fully sealed phone modem • User exchangeable device • User exchangeable SIM card • Tri-Band UMTS / HSDPA: 850 / 1900 / 2100 MHz • Quad-Band GSM / GPRS: 850 / 900 / 1800 / 1900 MHz
CDMA phone modem	• Fully integrated, fully sealed CDMA phone modem • User exchangeable device • Dual-Band CDMA 1XRTT (800 / 1900 MHz)
GSM / UMTS / CDMA antenna options	• Integrated GSM / UMTS / CDMA antenna • External GSM / UMTS / CDMA antenna connector (Type QN)
External data links
Radio modems	Support of any suitable UHF / VHF radio
GSM / UMTS / CDMA phone modems	Support of any suitable GSM / GPRS / UMTS / CDMA modem
Landline phone modems	Support of any suitable Landline phone modem
