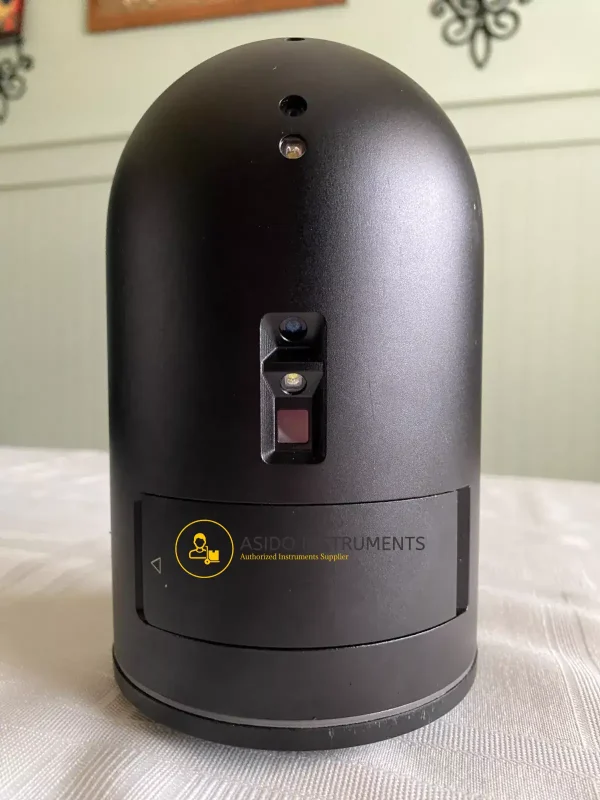

Leica BLK2GO Handheld Laser Scanner

Description

Leica BLK2GO Handheld Laser Scanner is the fastest, easiest, and least obtrusive way to scan a large building, space, or environment.

Leica BLK2GO Handheld Laser Scanner due to its powerful technology yet simple operation, it is easy for users of any experience level to simply pick up the Leica BLK2GO Handheld Laser Scanner, turn it on, and capture a digital twin of a space or structure quickly and accurately while walking through it.

Leica BLK2GO Handheld Laser Scanner captures 420,000 points per second and includes GrandSLAM technology: a combination of LiDAR SLAM, visual SLAM, and an IMU to orient itself in 3D space and scan while in motion.

Leica BLK2GO Handheld Laser Scanner is fully compatible with the Leica Geosystems Cyclone suite of Reality Capture software and offers unprecedented scanning speed to reality capture users in industries worldwide.

Leica BLK2GO Handheld Laser Scanner Features:

• Simple One button is all you need to control the BLK2GO. Turn it on, walk, and the BLK2GO takes millions of accurate measurements to recreate the space around you in 3D.
• Sleek: A masterpiece of cutting-edge engineering design.
• Award Winning: The winner of multiple industry awards including CES Best of Innovation 2020, the BLK2GO is compact, lightweight, and so easy to use
• Grab & Go: The BLK2GO drastically reduces the time needed to plan and scan on-site, and it doesn’t need a tripod or a trained operator
• Model with Confidence: BLK2GO data is the foundation for accurate floorplans, BIM models, and 3D visualizations.
• GrandSLAM: BLK2GO GrandSLAM technology simplifies mapping spaces in real-time.
• Applications: BIM, Construction, Architecture, Archaeology, 3D modelling, Interior design, Film sets, Virtual reality, Visual effects, Game design.
• Dual Axis Lidar Home: The smallest dual axis LiDAR available with best-in-class accuracy, enclosed in a fully protected and encapsulated dome that scans up to 420,000 points per second. Both axes constantly spin while scanning.
• Multicamera Vision System: The BLK2GO’s vision system is a 12-megapixel detail camera for brilliant high-contrast imagery plus three panoramic cameras for visual navigation via SLAM, point cloud colourisation and capture of panoramic imagery.
• The Grandslam: The GRANDSLAM (Simultaneous Localization and Mapping) is a combination of high-speed dual axis LiDAR, multi-camera vision system and an inertial measurement unit that makes the BLK2GO self-navigating.
• Lightweight Aluminium Construction: Weighing in 775 grams (1.7 lbs.) with battery, the BLK2GO’s matte-finish aluminum construction allows for excellent dexterity and freedom of movement.
• Smart Handle: The BLK2GO’s handle contains WLAN connectivity, a rechargeable battery capable of 45 minutes of continuous scanning, data storage for six hours of scans, a USB-C port for fast data transfer and edge computing.
• Advanced Lightguide: The light guide that encircles the BLK2GO is simple, intuitive and communicative to users of all skill levels. It provides user guidance while scanning and communicates the device status and data quality.

Included:

• Leica BLK2GO
• Leica BLK2GO Table Stand
• BLK2GO Transportation Case
• GKL821 MultiCharger
• GEV278 USB C Cable
• BLK2GO Wrist Strap
• GEB821 Li-Ion Bag (3)
• Software Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition)

You may also be interested in Leica AT402 Laser Tracker



Specifications:

• DESIGN & PHYSICAL
  Housing : Black anodized aluminium
  Dimensions : Height: 279 mm / Diameter: 80 mm
  Weight : 650 g (775 g including battery)
  Transport cover : BLK2GO transportation case
• OPERATION
  Stand-alone operation : One-button operation
  Mobile device : BLK2GO Live app for iPhone (iOS 12.1 or later) including: live 2D and 3D visualization while scanning, device status and data management
  Communication : Wireless (app connection)
  Internal memory : 24 hours of scanning (compressed data) / 6 hours (uncompressed data)
  Battery : Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes
• LiDAR & IMAGING
  Laser class : 1 (in accordance with IEC 60825-1)
  Wavelength : 830 nm
  Field of view : 360° (horizontal) / 270° (vertical)
  Range : Min. 0.5 – up to 25 m
  Point measurement rate : 420,000 pts/sec
  High resolution camera : 12 Mpixel, 90° x 120°, rolling shutter
  Panoramic vision system : 3-camera system, 4.8 Mpixel 300° x 135°, global shutter
• SYSTEM PERFORMANCE (SLAM BASED)
  Relative accuracy : 6-15 mm
  Absolute position accuracy indoor : 20 mm
• ENVIRONMENTAL
  Robustness : Designed for indoor and outdoor use
  Operating temperature : 5 to 40 °C
  Dust & humidity protection : IP54 (IEC 60529)
• DATA PROCESSING
  Data transfer : Wireless and USB 3.0
  Desktop software : Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition)
