Name: GeoMax Zenith 16 GNSS
Brand: GeoMax
SKU: GZ16GNSS
Availability: InStock

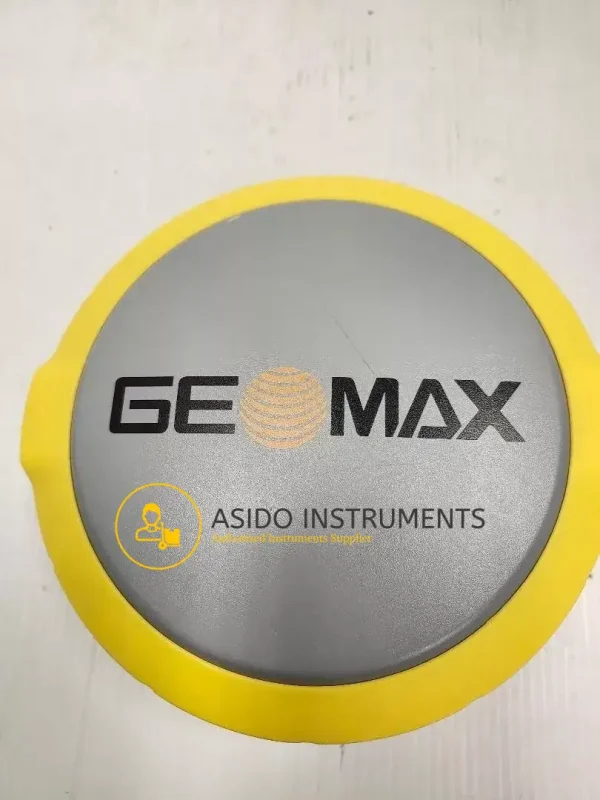

GeoMax Zenith 16 GNSS

~~$4,800.00~~ $2,400.00

In Stock

Manufacturer: GeoMax
Model: Zenith 16 GNSS
Included: GeoMax ZeniusX, Li-ion battery, Battery charger, AC/DC Adapter GK112, Case, Micro SD Card & USB, Quick guide and CD, User manual

This product has been added to 1 people'scarts.

In Stock

Description

GeoMax Zenith 16 GNSS is a cost-effective investment that guarantees reliable results. In combination with GeoMax field controllers and the X-PAD software, the receiver reaches its full potential.
Providing top-performing technology at an affordable price, the GeoMax Zenith 16 GNSS receiver convinces with a remarkable performance ratio.

The GeoMax Zenith 16 GNSSManager, a stand-alone application available for Windows® and AndroidTM operating systems, enables you to configure your receiver without using the field controller.

GeoMax Zenith 16 GNSS offers cutting-edge technology at an affordable price and therefore also impresses with its remarkable price-performance ratio. Experience increased productivity and less downtime thanks to the performance of GeoMax’s cutting-edge technology.

GeoMax Zenith 16 GNSS Features:

Top-performing technology
High-value investment
Software integrations for streamlined workflows
Open & flexible configuration

GeoMax Zenith 16 GNSS Included:

GeoMax ZeniusX

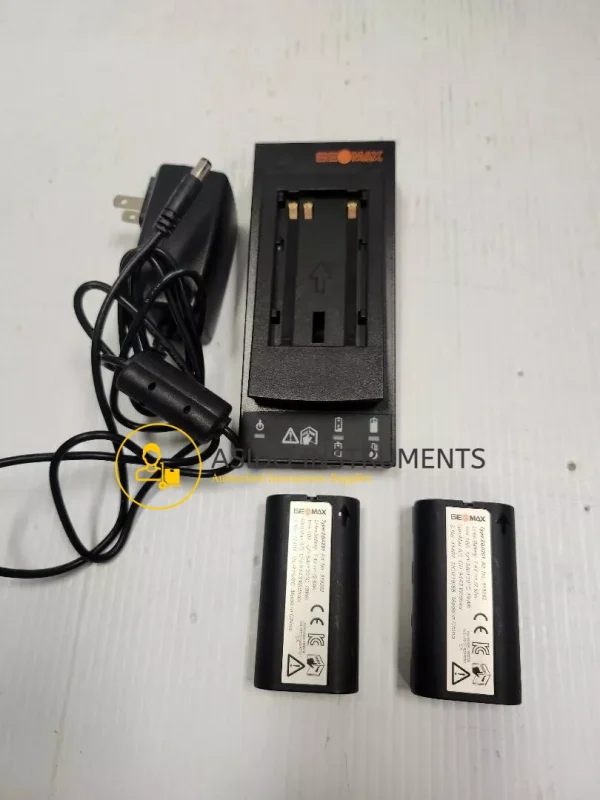

Li-ion battery
Battery charger
AC/DC Adapter GK112

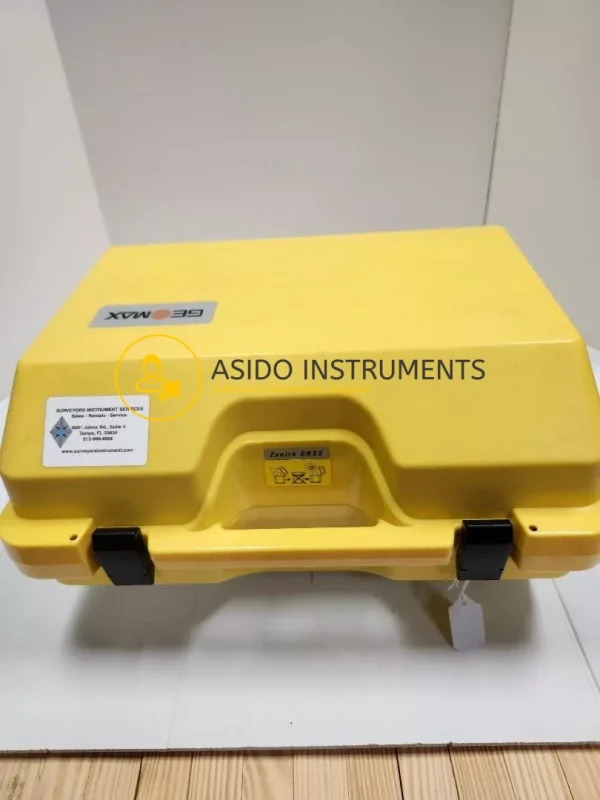

Case, Micro SD Card & USB
Quick guide and CD
User manual

You may also be interested in GE Inspection Mentor EM Eddy Current Flaw Detector NDT

GeoMax Zenith 16 GNSS Specifications:

Receiver
Q-Lock Pro^TM Functionality	Lowest noise and advanced multipath mitigation for highest reliability
Reliability	99.99%
Measurement Engine	NovAtel OEM7, 181 channels, dual-frequency / multi-constellation
GPS tracking	L1, L2, L2C
GLONASS tracking	L1, L2, L2C
BeiDou tracking	B1, B2 (opt)
Galileo tracking	E1, E5b (opt)
QZSS tracking	L1, L2C (opt)
Positioning rate	5 Hz
SBAS	EGNOS, WAAS, MSAS, GAGAN
Receiver Accuracy (RMS)*
RTK	Hz – 10 mm + 1 ppm / V – 20 mm + 1 ppm
Network RTK	Hz – 10 mm + 0.5 ppm / V – 20 mm + 0.5 ppm
Static	Hz – 5 mm + 0.5 ppm / V – 10 mm + 0.5 ppm
Static – long	Hz – 3 mm + 0.1 ppm / V – 3.5 mm + 0.4 ppm
Interfaces
Keyboard	On/off and function key
LED status indicators	Position, battery, Bluetooth®,RTK receive, RTK transmit,data storage
LED mode indicators	Rover, base, static
Data recording	Removable microSD card
Communication
UHF radio module	SATEL, 500mW, 1000 mW transceiver, 403 – 473 MHz; (opt)
Bluetooth®	Device class II QR-iConnect functionality
TNC connector	High sensitivity, UHF antenna
Communication port	USB, serial & power
Physical
Dimensions	Height 95 mm, ø 198 mm
Weight	1.09 – 1.13 kg **
Operating temp.	– 40°C to 65°C
Environmental Protection	IP68 / IP66 / MIL
Humidity	100%, condensing
Vibration	Mechanical stress resistant according to ISO 9022-36-05
Shock	Withstands 2 m drop onto hard surface
Power Supply
Internal battery Removable, Li-Ion 2.6 Ah / 7.4 V
Operating time9 h in static / 6 h in rover mode
External power10.5 V to 28 V, LEMO® plug
