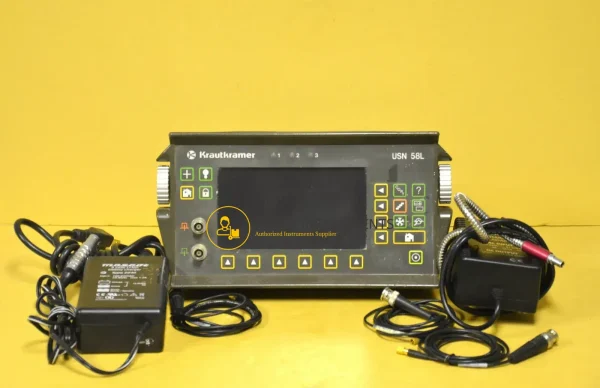

GE KrautKramer USN 58L Ultrasonic Flaw Detector

Description

GE KrautKramer USN 58L Ultrasonic Flaw Detector is the optimum choice for use in a bright environment. Even with direct sunlight, the display is still easily readable – an advantage that every operator will appreciate in field applications.

New digitizing and signal processing methods as well as a display refresh rate of 60 Hz have added another highlight to this instrument: with its very fast display refresh, the USN 58L makes up for the lead in display speed that analog instruments previously had.

GE KrautKramer USN 58L Ultrasonic Flaw Detector Features:

• Calibration range from 1 mm to 12 m for minimum and maximum sized workpieces
• Large frequency range from 0.25 to 25 MHz for optimum probe matching
• Pulse repetition frequency from 15 to 2000 Hz, automatically linked with the calibration range or manually adjustable
• 2-point calibration: easy, fast, and very accurate
• Material tables with 65 sound velocities stored in the instrument

Included:

• Krautkramer USN58L Ultrasonic Flaw Detector w/ Options: (BC# 38869-L/T*)
  • SQPLS
  • VGA Output Option (USN 58L Only)
• (2) BNC Cables
• Alkaline Battery Pack
• User Manual On CD-ROM

You may also be interested in Waygate Technologies Krautkramer SpotVision

Specifications:

• Real-time outputs: analog and TTL outputs for the requirements of automatic test systems
• “SmartView” function: maximum flaw detectability even at high scanning speeds
• Reliable display of even shorter signals (e.g. from only one transmit/ receive cycle) by adjustable persistence.
• Easy operation, thanks to the two rotary knobs, is combined with an intuitive menu layout.
