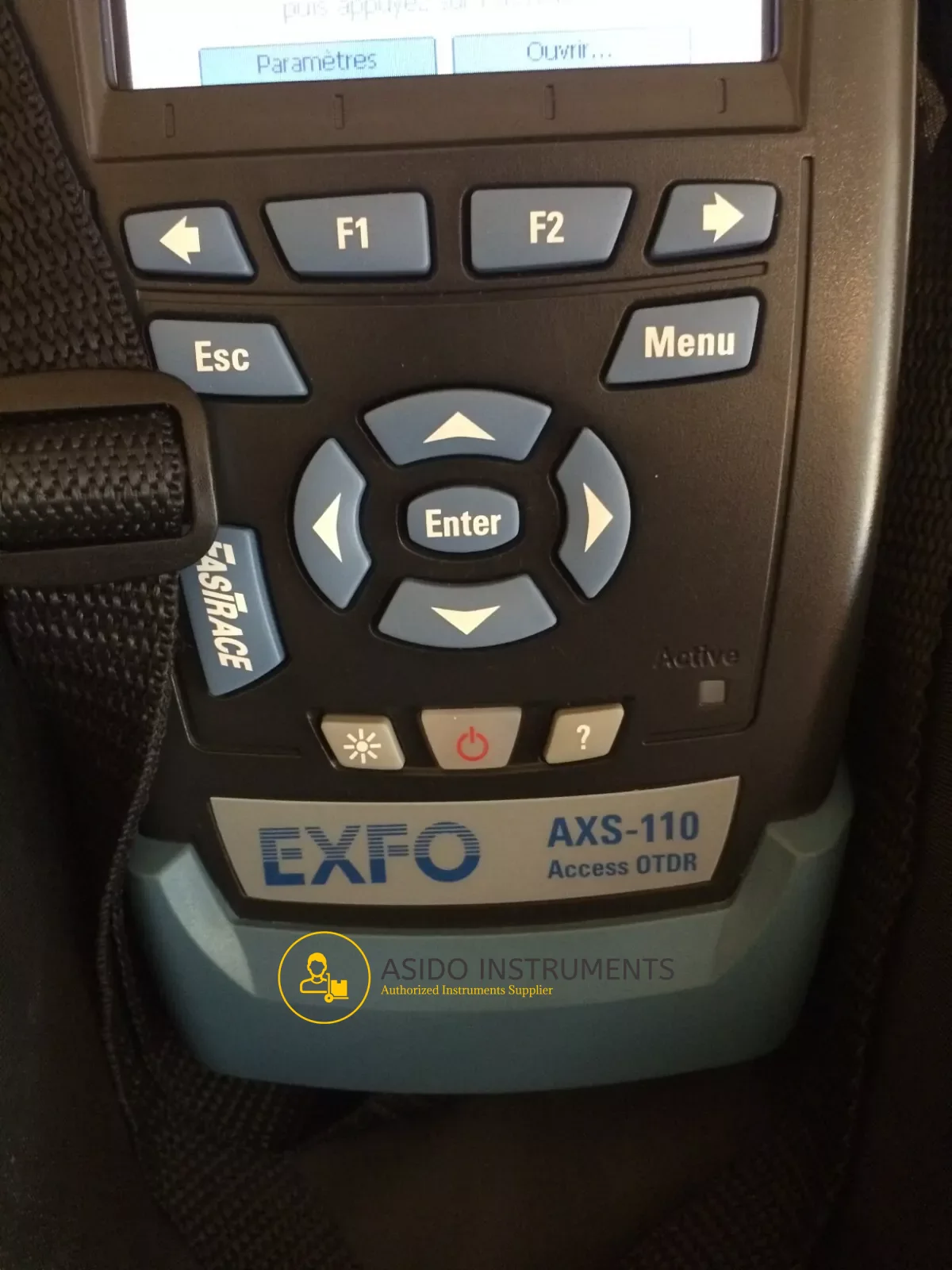

EXFO AXS-110 All Fiber QUAD OTDR
Manufacturer: EXFO
Model: AXS-110 All Fiber QUAD OTDR
Included: EXFO AXS-110-23B-EI SM Fiber OTDR Tester (BC# 29729-L/T*) SM OTDR Source: 1310nm, 1550nm; FC Connector For OTDR Source, Ethernet Cable, (2) SM FC-FC Fiber Cables, AC Adapter/Charger, (4) Fiber Wipes, USB PC Interface Cable, User Manual On Cd-ROM, Strap For Unit, Carrying Case (G)
Description
EXFO AXS-110 All Fiber QUAD OTDR is specifically designed for the FTTx installer, and is also ideal for premise testing. User-friendly with one-touch testing, summary screen and macrobend identification. Complete connectivity flexibility using USB stick or RJ-45/USB cable data download.
Included is FastReporter software with powerful batch processing, bi-directional analysis and live templating for OTDR testing. The AXS-110 Singlemode OTDR is ideal for FTTx/access and CATV testing. The AXS-110 Multimode OTDR is optimized for enterprise testing.
EXFO AXS-110 All Fiber QUAD OTDR Features:
- Event dead zone: 0.8 m
- Wavelengths: 1310/1490/1550/1625/850/1300 nm
- Dynamic range: up to 37 dB
- Battery autonomy: 8 hours
Included:
- EXFO AXS-110-23B-EI SM Fiber OTDR Tester (BC# 29729-L/T*)
- SM OTDR Source:
- 1310nm
- 1550nm
- FC Connector For OTDR Source
- SM OTDR Source:
- Ethernet Cable
- (2) SM FC-FC Fiber Cables
- AC Adapter/Charger
- (4) Fiber Wipes
- USB PC Interface Cable
- User Manual On Cd-ROM
- Strap For Unit
- Carrying Case (G)
You may also be interested in Everest Mentor Flex VideoProbe
Specifications:
| Wavelength (nm) | 1310/1550 |
| Dynamic range (dB) | 37/35 |
| Pulse Width | 5, 10, 30, 100, 275, 1000, 2500, 10 000 |
| Event dead zone (m) | 0.8 |
| Attenuation dead zone (m) | 4.5/4.5 |
| Linearity (dB/dB) | ±0.01 |
| Loss threshold (dB) | 0.01 |
| Loss resolution (dB) | 0.01 |
| Sampling resolution (m) | 0.08 to 5 |
| Sampling points | Up to 64, 000 |
| Distance uncertainty (m) | ±(0.75 + 0.0025 % x distance + sampling resolution) |
| Distance range (km) | 0.65 to 260 |
| Typical real-time refresh (Hz) | 4 |
| Memory capacity | 500 traces |
| Measurement time | User-defined |
| Stable source output power (dBm) | -7.5 |
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 60 × 60 × 50 cm |
