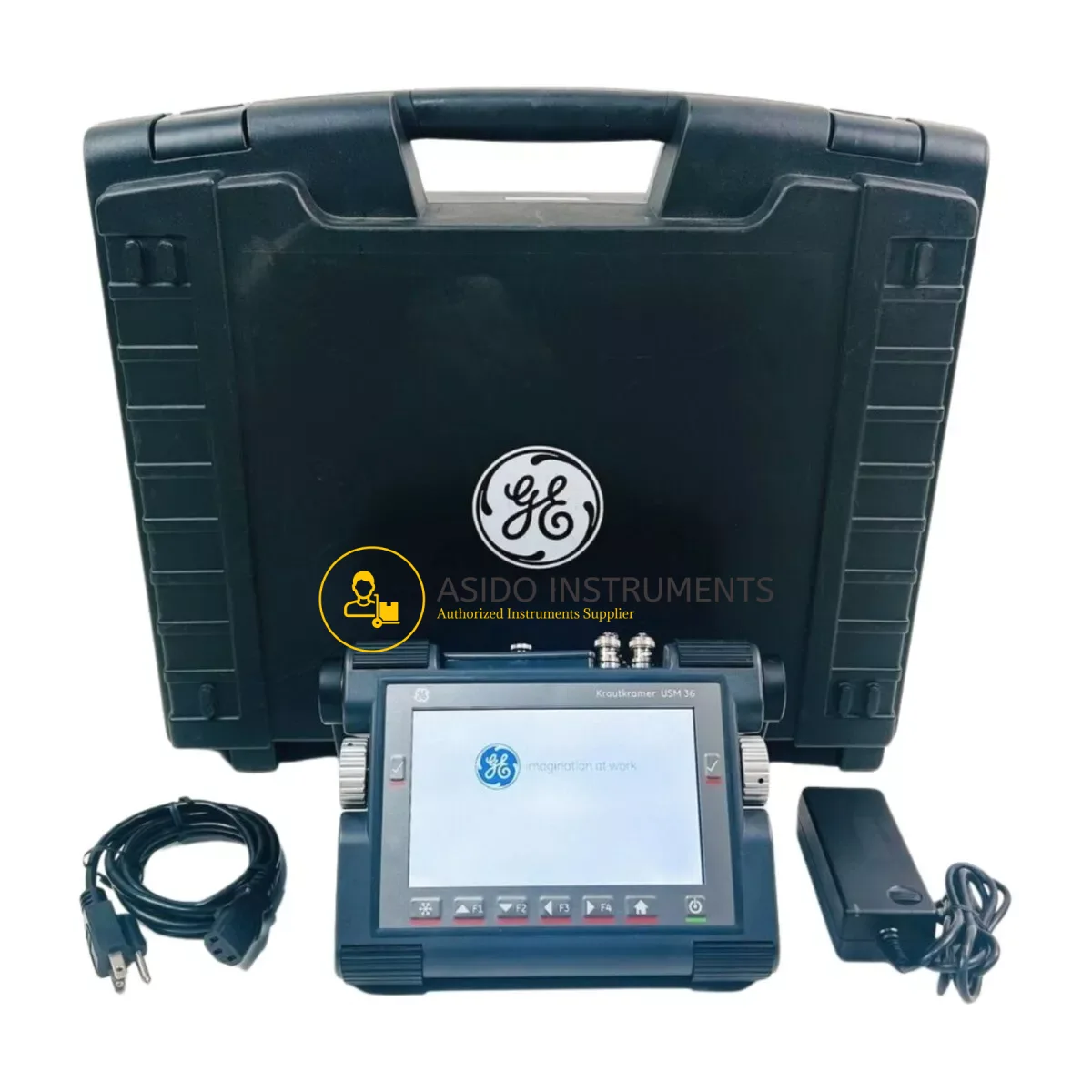

Waygate Krautkramer USM 36 Ultrasonic Flaw Detector
In Stock
- Manufacturer: Waygate Technologies
- Model: Krautkramer USM 36
- Included: Lithium Ion Rechargeable Battery Pack, Lithium Ion Battery Charger /AC Power Supply for On-Board Charging, SD Card (2 GB), USB Download Cable, Transport Case, Quick Reference Operating Card, Operating Manual on CD, Certificate Of Conformity
This product has been added to 1 people'scarts.
In Stock
Description
Waygate Krautkramer USM 36 Ultrasonic Flaw Detector combines the 21st century operating platform with the reliable and robust hardware of Waygate Technologies’ well-established Krautkrämer portable flaw detection instruments. It incorporates a range of innovative features to ensure that this new instrument is adopted as the everyday workhorse of flaw detectors by NDT inspectors globally.
The harshest industrial environments require rugged and reliable NDT inspection products specifically designed to stand up to any conditions. Perform comprehensive and highly accurate NDT flaw detection inspections on industrial assets without interrupting operations or putting personnel at risk.
Waygate Krautkramer USM 36 Ultrasonic Flaw Detector Benefits:
- Simple and efficient operation
- Few inspection tools are more versatile
- Ideally suited to stand up to a wide range of inspection challenges
Waygate Krautkramer USM 36 Ultrasonic Flaw Detector Features:
- Flexible data reporting and storage
- Comprehensive connectivity
- Can be used in the harshest of environments
- Largest viewable A-Scan display in its class
- Available in three versions
Applications:
- Weld inspection in the Oil & Gas, Power Generation, and Petrochemical Industries
- Precise thickness measurement in the Automobile Industry
- Corrosion measurement in the Oil & Gas, Power Generation, and Petrochemical Industries
- Inspection of fine-grained and long work forgings
- Inspection of special materials, including those used in the Aerospace and Automobile industries
You may also be interested in Trimble X7 3D Laser Scanner
Waygate Krautkramer USM 36 Ultrasonic Flaw Detector Specifications:
| Display screen | |
| Size Diagonal | 7” |
| Active range (W × H) | 152.4 × 91.44 mm2 |
| Resolution (W × H) | 800 × 480 pixels |
| Range | 4 … 14,108 mm (555“) for longitudinal wave |
| Waygate Krautkramer USM 36 Display | |
| Display shift (delay) | –15 … 3,500 μs |
| Probe delay | 0 … 1,000 μs |
| Velocity | 250 … 16,000 m/s |
| PRF | Automatically optimized 15 … 2,000 Hz, 3 automatic setting modes: Auto Low, Auto Med, Auto High, Manual |
| Connectors | |
| Probe connectors | 2 × LEMO-1 or 2 × BNC |
| USB interface | USB type B connector |
| Service interface | LEMO-1B, 8 pin |
| Pulser | |
| Pulser mode | Spike pulser, optionally: Square-wave |
| Pulser voltage (SQ mode) | 120 … 300 V, in steps of 10 V with a tolerance of 10% |
| Pulser falling/rising time | max. 10 ns |
| Pulser width (SQ mode) | 30 … 500 ns, in steps of 10 ns |
| Pulser amplitude (Spike mode) | low: 120 V, high: 300 V |
| Pulser energy (Spike mode) | low: 30 nS, high: 100 nS |
| Damping | 50 ohms, 1000 ohms |
| Waygate Krautkramer USM 36 Receiver | |
| Digital gain | Dynamic range 110 dB, adjustable in steps of 0.2 dB |
| Analog bandwidth | 0.5 … 20 MHz |
| Equivalent input noise | <80 nV/√Hz |
| Filters | Broadband: 1-5 MHz / 2, 2.25 MHz / 4, 5 MHz / 10 MHz / 13, 15 MHz |
| Rectification | Positive half-wave, negative half-wave, full wave, RF signal |
| Gates | |
| Independent gates | Gates A and B (triggering by gate A), Gate C (option, triggering by gate A or B) |
| Measurement mode | Peak, Flank, J-FLANK, FIRST PEAK |
| Memory | |
| Card slot | SD-card slot for all standard SD-cards |
| Capacity | 8 GB, SD-card |
| Datasets | UGO data structure in ASCII |
| Reports | JPG or BMP format |
| General | |
| Battery | Li-Ion, operating time: 13 hours with full charge / Charging method (standard): internal with power adapter / Charging method (optional): external charger / Charge level: proportional charge level indicator |
| Power adapter | Universal power supply unit 100 … 240 VAC, 50/60 Hz |
| Size (W × H × D) | 255 × 177 × 100 mm (10” × 7.0” × 3.9”) |
| Weight | 2.2 kg incl. battery |
| Languages | Bulgarian, Chinese, Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish |
| Damp heat and humidity (storage) | EN 60068 Part 2-30 6 cycles: 9 hrs at +25°C up in 3 hrs to +55°C, 9 hrs at +55°C then down to +25°C in 3 hrs, at 93% humidity |
| Vibration | EN 60068 Part 2-6 2g per axis, 5 … 150 Hz, 1 oct/min, 25 cycles |
| Shocks | EN 60068 Part 2-27 1000 cycles per axis, 15 g, 11 ms, half-sine |
| Enclosure | IP66 according to IEC 60529 |
| Operating temperature | –10 … 55°C |
| Cold operation | –10°C for 16 hrs, 502.5 Procedure II |
| Heat operation | +55°C for 16 hrs, 501.5 Procedure II |
| Storage temperature | –20 … +60°C, without battery |
| Cold storage | –20°C for 72 hrs, 502.5 Procedure I |
| Heat storage | +70°C for 48 hrs, 501.5 Procedure I |
| Waygate Krautkramer USM 36 Options | |
| AWS | AWS calibration tool, according to AWS D1.1 Structural Welding Code |
| DAC/JISDAC/CNDAC | DAC calibration tool, 16 points, according to EN 1712, EN 1713, EN 1714, ASTM E164, ASME, ASME III, JIS Z3060, GB11345 TCG: 120 dB dynamic, 110 dB/μs slope |
| DGS | DGS calibration tool, according to: EN 1712, EN 1713, EN 1714, ASTM E164 |
| Data logger | Grid file creation |
| 3G | Gate C |
| SWP | For pulser parameter optimization, voltage setting 120 … 300 V in steps of 10 V, pulse width setting 30 … 500 ns in steps of 10 ns |
| Phantom-PRF | Phantom-PRF for the identification of erroneous echoes caused by multiple reflections in low-attenuation materials |
| BEA | Blackwall Echo Attenuation |
