Topcon GT 1003 Robotic Total Station

Description

Topcon GT 1003 Robotic Total Station offers a compact, high-performance solution by providing you with the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and performance as a hybrid positioning solution.

Topcon GT 1003 is the driving force behind the GT Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism-tracking possible with a rotation speed of 180° per second – it’s a difference you will see and hear immediately.

Topcon GT 1003 Robotic Total Station Features:

• Smallest and lightest robotic total station
• Reflectorless up to 1,000m
• UltraSonic Direct Drive motor
• Advanced UltraTrac technology
• TSshield global service
• 3 year instrument, 5 year motor warranty
• Integrated cellular modem
• Ready for full promotion into a Hybrid Positioning solution

Included:

• Topcon GT-1003 Robotic Total Station; LongLink 600m Wireless Robotic Range, OnBoard Display, 1000m Non-Prism Range, 6000m Prism Range
• (1) Topcon RC-5 Remote Controller
• (1) Topcon APT-1 360° Prism
• (2) Rechargeable Total Station Batteries
• (2) Rechargeable RC-5 Batteries
• (2) Dual Battery Chargers w/ Power Supply

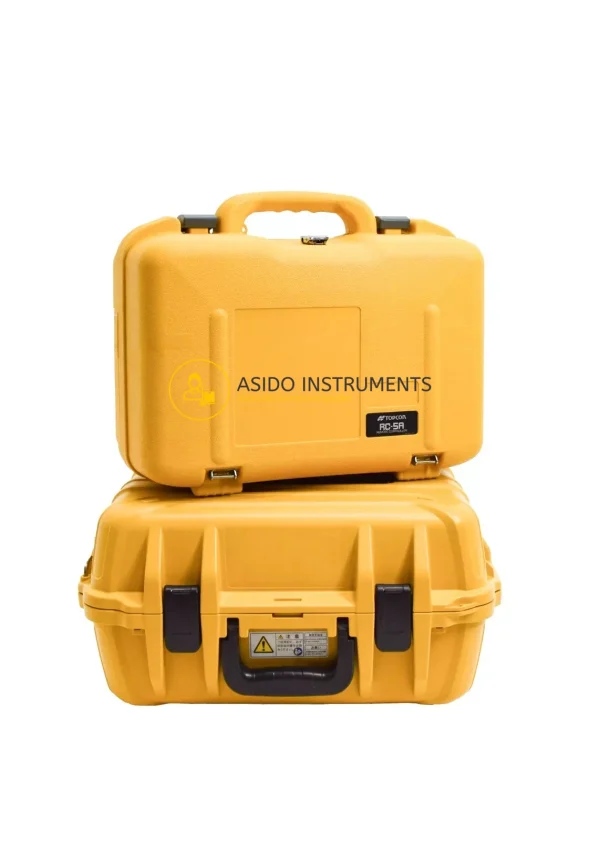

• (2) Topcon Hard Transport Cases

You may also be interested in Topcon GT 1002 Robotic Total Station



Specifications:

• Telescope: Resolving power 2.5”, Magnification 30x
• Angle Measurement: GT-1003: 3”
• Tilt Angle Compensation
• Compensation Liquid 2-axis tilt sensor
  Range ±6’
  Distance Measurement
• Prism EDM Range, GT-1000 5,000 m
  Prism EDM Accuracy: GT-1000 1 mm + 2 ppm
  Non-Prism Range: GT-1000 1,000 m
  Non-Prism Accuracy 2 mm + 2 ppm (0.3 – 200 m)
  Measuring Time Fine: 0.9 sec, Rapid: 0.6 sec, Tracking: 0.4 sec
  Communications
• LongLink™ interference-free communication
  USB 2.0 Slot (Host + Slave)
  RS-232C Serial
  General
• Display Color touch TFT
  800 x 480 display
  Keyboard 24 keys with
  illuminator
  Battery Operation Up to 4 hours
  Dust/Water Rating IP65
  Wireless Connection Bluetooth® Class 1
  Operating Temp -20°C to 50°C
  Turning Speed: GT-1000 180º per-second
