Name: Leica ScanStation C10 3D Laser Scanner
Brand: Leica
SKU: LSC103DLS
Availability: InStock

Leica ScanStation C10 3D Laser Scanner

~~$11,800.00~~ $5,900.00

In Stock

Manufacturer: Leica
Model: ScanStation C10 3D Laser Scanner
Included: Leica ScanStation C10 3D Laser Scanner [ID X3833-L/T*], Leica Battery Charger #852413, Leica Power Cable, AC Adapter/Charger, User Manual On CD, Hard Carrying Case (G)

In Stock

Description

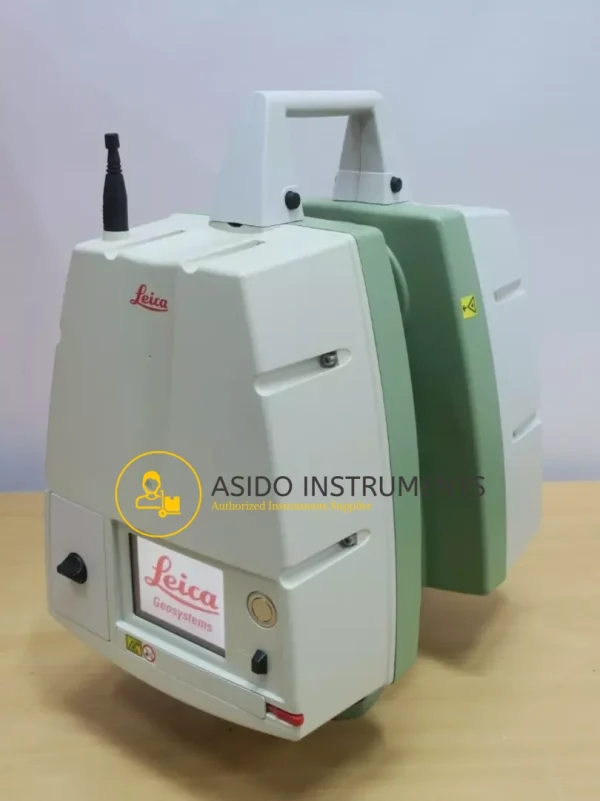

Leica ScanStation C10 3D Laser Scanner is a high-accuracy/long-range scanner, tilt sensor, battery, controller, data storage, auto-adjusting video camera, and laser plummet all in one compact, portable instrument.

Leica ScanStation C10 3D Laser Scanner also features major productivity advances, including a Smart X-Mirror design that lets users conduct full-dome scans in literally a few minutes using a spinning mirror or conduct small area scans efficiently with Smart X-Mirror’s oscillating mode.

Leica ScanStation C10 3D Laser Scanner makes High-Definition Surveying (HDS) profitable for even more as-built, topographic, incident scene, and monitoring surveys.

Leica ScanStation C10 3D Laser Scanner platform represents the most capabilities and best value packed into a single laser scanner instrument. Users can take advantage of surveyor-friendly, onboard total station-like control or use an external laptop for even more powerful, onsite viewing and data processing.

Leica ScanStation C10 3D Laser Scanner Features:

All critical components in one, portable survey instrument: full field-of-view, high-speed,
high-accuracy, long-range scanner; rich, graphic controller; powerful camera/video; data
storage; hot-swap battery; tilt compensator, and more.
All-in-One versatility in applications and sites where scanning is profitable.
One-stop-shopping via the industry’s leading vendor: the most comprehensive scanning software, scanner selection, and customer support.

Leica ScanStation C10 3D Laser Scanner Included:

Leica ScanStation C10 3D Laser Scanner [ID X3833-L/T*]
Leica Battery Charger #852413
Leica Power Cable
AC Adapter/Charger
User Manual On CD
Hard Carrying Case (G)

You may also be interested in Leica RTC360 3D Laser Scanner

Specifications:

General
Instrument type	Compact, pulsed, dual-axis compensated, very high speed laser scanner, with survey-grade accuracy, range, and field-of-view; integrated camera and laser plummet
User interface	Onboard control, notebook, tablet PC or remote controller
Data storage	Integrated solid-state drive (SSD), external PC or external USB device
Camera	Auto-adjusting, integrated high-resolution digital camera with zoom video
System Performance
Accuracy of single measurement	Position: 6 mm Distance: 4 mm Angle: 60 µrad / 60 µrad (12” / 12”)
Modeled surface precision	2 mm
Target acquisition	2 mm std. deviation
Dual-axis compensator	Selectable on/off, resolution 1”, dynamic range +/- 5’, accuracy 1.5”
Laser Scanning System
Type	Pulsed; proprietary microchip
Color	Green, wavelength = 532 nm visible
Laser Class	3R (IEC 60825-1)
Range	300 m @ 90%; 134 m @ 18% albedo (minimum range 0.1 m)
Scan rate	Up to 50,000 points/sec, maximum instantaneous rate
Scan resolution	Spot size: From 0 – 50 m: 4.5 mm (FWHH-based); 7 mm (Gaussian-based) Point spacing: Fully selectable horizontal and vertical; <1 mm minimum spacing, through full range; single point dwell capacity
Field-of-View	Horizontal: 360° (maximum) Vertical: 270° (maximum) Aiming/Sighting: Parallax-free, integrated zoom video
Scanning Optics	Vertically rotating mirror on horizontally rotating base; Smart X-Mirror™ automatically spins or oscillates for minimum scan time
Data storage capacity	80 GB onboard solid-state drive (SSD) or external USB device
Communications	Dynamic Internet Protocol (IP) Address, Ethernet or wireless LAN (WLAN) with external adapter
Integrated color digital camera with zoom video	Single 17° x 17° image: 1920 x 1920 pixels (4 megapixels) Full 360° x 270° dome: 260 images; streaming video with zoom; auto-adjusts to ambient lighting
Onboard display	Touchscreen control with stylus, full color graphic display, QVGA (320 x 240 pixels)
Level indicator	External bubble, electronic bubble in onboard control and Cyclone software
Data transfer	Ethernet, WLAN or USB 2.0 device
Laser plummet	Laser class: 2 (IEC 60825-1) Centering accuracy: 1.5 mm @ 1.5 m Laser dot diameter: 2.5 mm @ 1.5 m Selectable ON/OFF
Electrical
Power supply	15 V DC, 90 – 260 V AC
Power Consumption	<50 W avg.
Battery Type	Internal: Li-Ion; External: Li-Ion
Power Ports	Internal: 2, External: 1 (simultaneous use, hot swappable)
Duration	Internal: >3.5 h (2 batteries), External: >6 h (room temp)
Environmental
Operating temp.	0° C to 40° C / 32° F to 104° F
Storage temp.	-25° C to +65° C / -13° F to 149° F
Lighting	Fully operational between bright sunlight and complete darkness
Humidity	Non-condensing
Dust/humidity	IP54 (IEC 60529)
