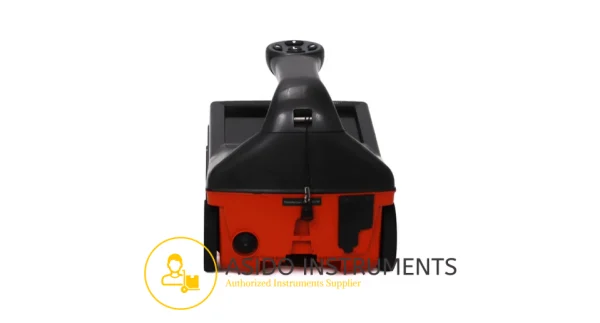

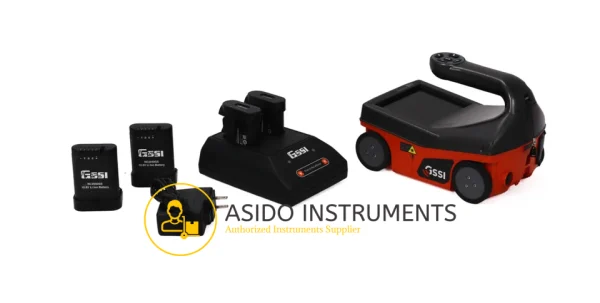

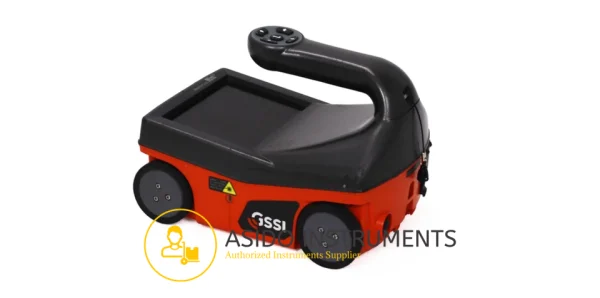

GSSI StructureScan Mini HR GPR

Description

GSSI StructureScan Mini HR GPR is the ideal equipment for the concrete inspection industry. It has an all-in-one GPR system for locating rebar, conduits, post-tension cables or voids, and used to determine concrete slab thickness in real-time.

This model StructureScan Mini HR 3D can be run in 2D for real-time target location or 3D, for an x-ray like image. Ideal for complex areas, the StructureScan Mini HR can delineate small targets with superior vertical and horizontal resolution.

GSSI StructureScan Mini HR GPR offers a 2600 MHz GPR antenna for high-resolution data and can reach depths of up to 40cm (16 inches). This innovative system lets contractors and concrete drilling professionals safely locates metallic and non-metallic targets, with an auto target feature that marks the detection of features of interest.

Both the standard and HR systems are available with either standard 2D capabilities, or 3D for an x-ray-like image. The lasers on the side of the unit indicate the exact location of the center of target for accurate marking of targets embedded in the concrete.

GSSI SIR 4000 GPR Control Unit Features:

• Locate ferrous and non-ferrous targets (rebar stainless steel plastic conduit)in real-time
• User-friendly intuitive navigation
• Ability to see multiple rebar layers within concrete
• Automatic dielectric calculation
• Four wheel drive survey encoder

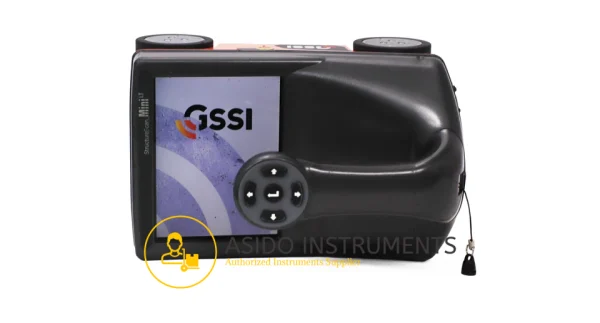

• Data is displayed on a high-resolution 5.7 inch color screen
• Locate and mark targets quickly with backup cursor feature and innovative laser positioning
• Lightweight and simple to transport all-in-one unit weights about three pounds
• Transfer data with ease data stored on flash card
• No periodic calibration necessary
• Built-in automatic target detection software
• Left and right hand orientation
• No site hazards or need to close off work areas as with radiography (X-Ray)
• Durable components that have been tested to be dust proof and water- resistant

GSSI SIR 4000 GPR Control Unit Included:

• GSSI StructureScan Mini HR 3D
• 3D option
• RADAN 7 Software HASP License

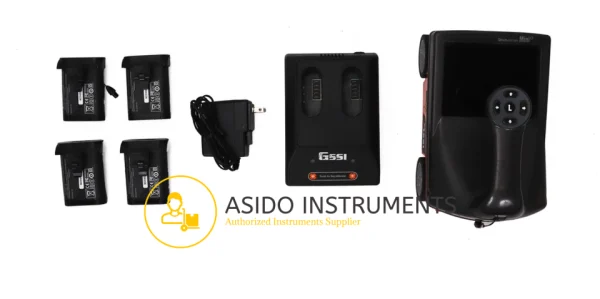

• Charger, AC Adapter, Batteries
• SD Card
• USB Data Cable
• Training Videos, Quick Start Guide & Manual
• Rugged transit case

You may also be interested in GSSI SIR 4000 GPR Control Unit

GSSI SIR 4000 GPR Control Unit Specifications:

• Max Depth
  50 cm (20 in)
• Antenna Frequency
  1600 MHz
• Weight
  1.63 kg (3.6 lbs)
• Storage Capacity
  2 GB
• Software
  RADAN 7 for StructureScan Mini, RADAN 7
• Accessories
  No accessories needed
