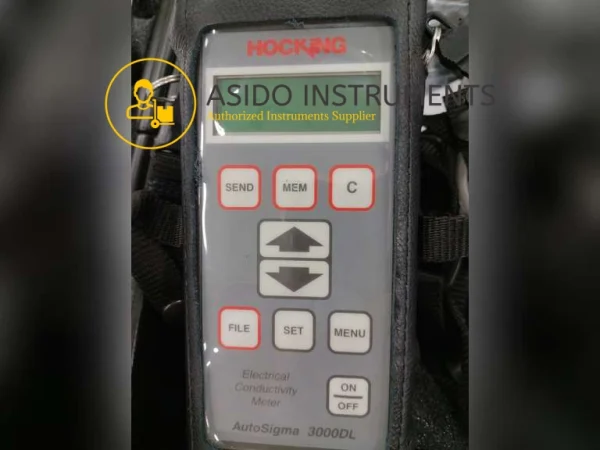

GE Inspection Technologies Autosigma 3000 Conductivity Meter

Description

GE Inspection Technologies Autosigma 3000 Conductivity Meter gives accurate operation in an easy to use package that is both light and rugged. Designed for operator convenience, the lightweight, battery powered unit is easy to carry and easy to hold during inspections. The 500kHz frequency allows inspection of thin materials using the standard probe. The 60kHz setting is the aerospace industry standard.

GE Inspection Technologies Autosigma 3000 Conductivity Meter Features:

• High accuracy 0.8 to 110% IACS (0.45-64 MS/m) conductivity measurement +/- 0.1 at 10% IACS
• Light weight at only 0.4kg
• Temperature compensation (0 to 40-deg C)
• Selectable Frequency (60 or 500 kHz)
• Clear Display with Back Light
• Data Logging (500 readings in up to 50 files)

Included:

• 47P001 Conductivity Probe (60 and 500kHz)
• Straight Probe with 0.50 Inch Tip Diameter
• Conductivity Set-up Block
• AA Alkaline Batteries (3 ea.)
• Probe Lead (60 inch)
• Probe Shoe for Radiused Surface
• Plastic Carrying Case
• Carrying Bag with Shoulder Strap
• Operating Manual
• Certificate of Conformity

You may also be interested in GE KrautKramer USN 58L Ultrasonic Flaw Detector

Specifications:

• High accuracy 0.8 to 110% IACS (0.45-64 MS/m) conductivity measurement +/- 0.1 at 10% IACS.
• Light weight at only 0.4kg.
• Temperature compensation (0 to 40-deg C)
• Selectable Frequency (60 or 500 kHz)
• Clear Display with Back Light.
• Data Logging (500 readings in up to 50 files)
