Wohler VIS 700 HD Video Inspection Camera

Description

Wohler VIS 700 HD Video Inspection Camera is a new digital high-resolution sensor assures amazingly sharp images. With the Wohler VIS 700, professionals are able to plan their maintenance services on the basis of clearly visible facts.

The displayed level indication ensures you to keep orientation in the pipe. The camera display shows the camera head position and angle for ease of navigation. The home function allows you to realign the camera head straight forward when needed. HD images are displayed for you on the brilliant, touch screen high-resolution monitor.

The Wöhler VIS 700 is designed to transmit live video data to smart devices via Wireless LAN. While conducting an inspection, you have the option to stream live images and videos on a smartphone or tablet. You can also save all footage to an SD card for reviewing at a later time.

Wohler VIS 700 HD Video Inspection Camera Features:

• HD image quality thanks to high-resolution digital camera technology
• 1.5 inch detachable waterproof pan and tilt color camera head (IP 67)
• 7″ HD color touchscreen with adjustable focus via joystick/touch screen
• Built-in radio transmitter facilitates wireless location detection
• Position and level display for orientation during inspections
• On screen keyboard for typing comments / descriptions to photos
• Transmission of live images/video via Wireless LAN

Included:

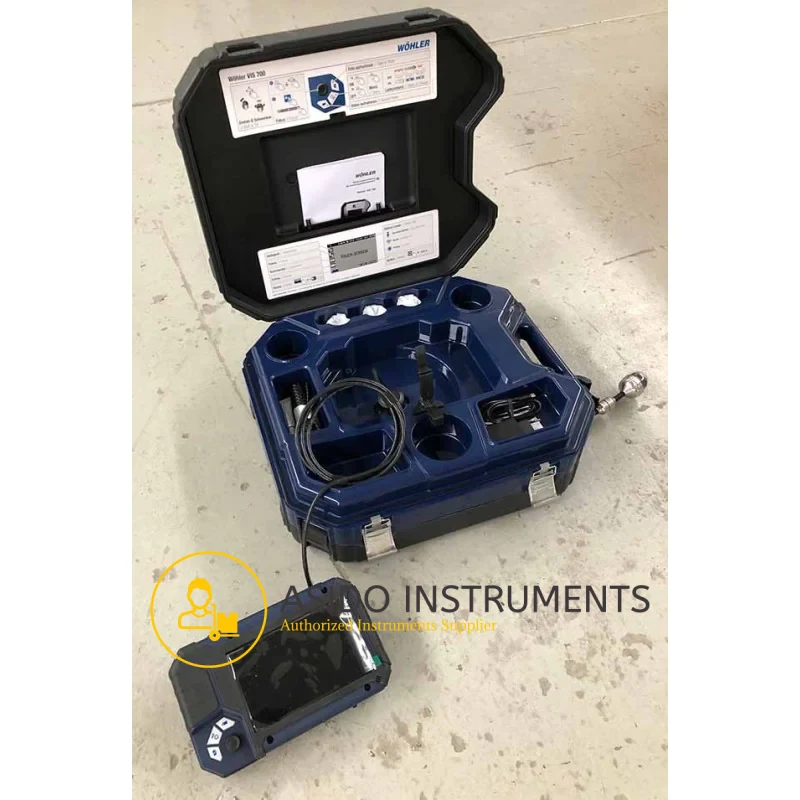

• Wohler VIS 700 HD Video Inspection Camera with Accessories

You may also be interested in Vanguard Instruments EZCT-2000A

Specifications:

• Monitor
• Dimensions housing: 10 x 6 x 2 in
• TFT display: 7″ / 16:9 format, 1280 x 800 px
• Weight: 2 lbs.
• Power supply: USB C 5 V / 3 A
• Power supply: 3.7 V, 11.4 Ah rechargeable Li-Ion battery
• Battery operating time: 4 h (battery status in display)
• Operating temperature: 32 – 104 °F
• Storage temperature: -4 – 122 °F
• Wöhler pan & tilt camera head 1.5 inch
• Type: 1/2.7″ Color CMOS
• IP rating: IP 67
• Viewing angle, diagonal: 160°
• Focus distance: 1 inch – ∞
• Light source: 10 white LEDs
• Protection: Waterproof to IP 67 (up to 40 ft. depth for 30 mins.)
• Dimensions: 1.5 x 2.5 inches
• Transmit frequency of Locator: variable
• Camera rod
• Length: 100 ft.
• Diameter: 33“ x .22“
• Electronic meter counter
• Resolution: 1 inch
• Max. deviation: 5% of reading
• Memory
• Max. capacity of SD card: 32 GB
• Technology: SD or SDHC, speed class 10
• Recording capacity: Approx. 3 GB/h
• Resolution recording: 1280 x 720 HD, max. 25 fps
• Recording format: AVI (H264)
• Double-walled plastic case
• Dimensions: 7 x 18 x 20 inches
• Total weight incl. monitor, camera head and push rod: 22 lbs.
• Locator receiver
• Display: Graphic camera position indicator
• Output impedance, headphones: Typ. 32 Ohm
• Frequency: ~9 kHz
• Power supply: 3.7 V rechargeable Li-Ion battery
• Operating temperature: 0 – 104 degrees F
• Storage temperature: 14 °F…104 °F
• Weight: 1.5 lbs.
• Dimensions: 12 x 6 x 3 inches
