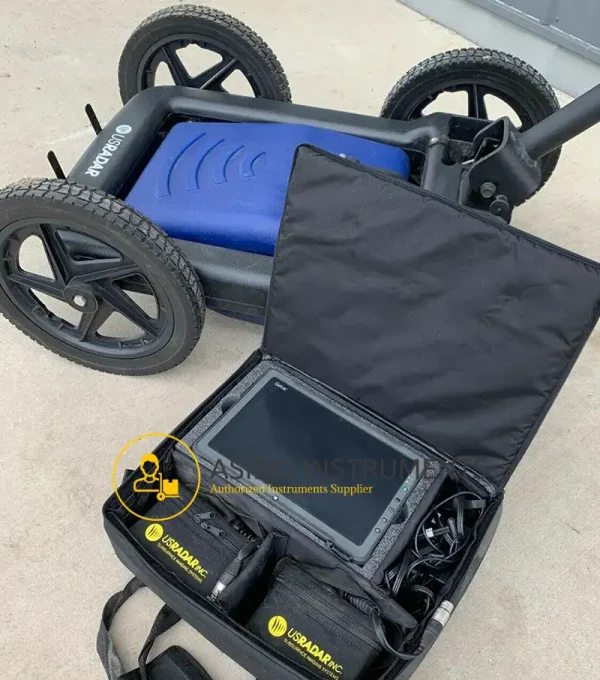

US Radar Inc Quantum Imager GPR Triple Frequency

Description

US Radar Inc Quantum Imager GPR Triple Frequency is the first true triple frequency range GPR system ever produced. The antenna emits three separate signals simultaneously, allowing the user to survey significantly greater depths with higher resolution than any other locating technology without sacrificing middle frequencies which are ideal for locating targets like buried utilities.

Stepped ultra wideband pulses combine the advantages of pulse radar and stepped frequency radar for unsurpassed resolution and depth. New direct RF sampling technology creates clearer, easier to understand images than previously possible with older radar technologies. All these components of the quantum imaging method work together to make locating easier while providing superior results.

US Radar Inc Quantum Imager GPR Triple Frequency Features:

• Durable, Glare-Resistant Tablet Interface
• Daylight readable, weatherproof Getac tablet interface
• High performance CPU enables real-time data processing
• Built-in 3D view capability
• WiFi supported
• USB, Ethernet, HDMI and Audio ports

Included:

• Triple Frequency Antenna S/N 425441
• Integrated Head Electronics
• Windows Operating System
• 2X Battery Pack For Radar
• Radar Battery Charger
• Tablet Battery Charger
• Ruggedized Ethernet Cable
• Power Y-Cable (Installed)
• Quantum Series Cart S/N 403477
• Triple Frequency Premium Acquisition Software

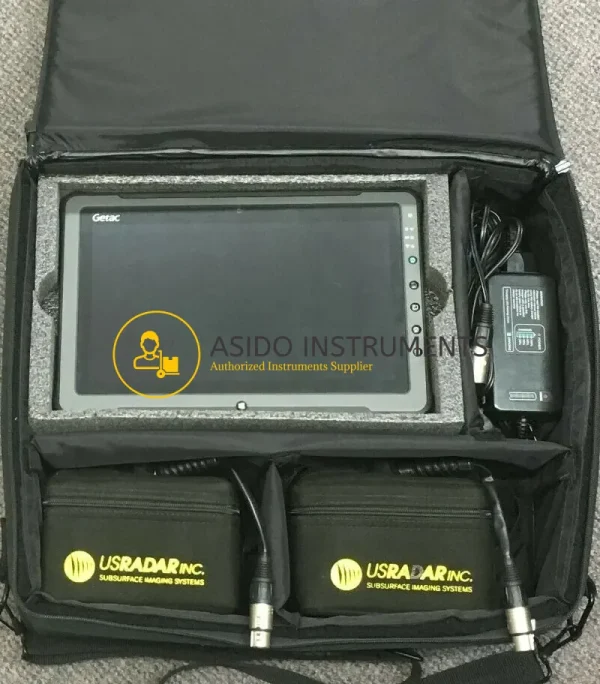

• Controller  Carry Case
• Wear Tray

You may also be interested in Proceq UT8000 Ultrasonic Flaw Detector

Specifications:

• Operating System: Windows 7 or 10 64-bit
• Third-generation Intel® Core™ i5vPro™ Processor
• Durability: MIL-STD-810G, 4-foot drop and all-weather IP65 dust and water resistant design
• Display: 11.6 inch, HD daylight-readable, ten-point multi touch + digitizer
• I/O Interface: Ethernet Port, DC Power Port, 1 USB 3.0 Port, HDMI Port, WiFi and Bluetooth
• Expansion Options: MicroSD or second USB 2.0 port, RJ45 Ethernet, Dedicated GPS
• Communications: Wi-Fi, Bluetooth® and optional 4G LTE or 3G Gobi™
• Microsoft Windows
• US Radar Control Software Including:
  • System Configuration
  • A Scan Display (Oscilloscope Mode)
  • B Scan Display (Cross Sectional View)
  • C Scan Display (3D) (Optional)
  • Integrated Map Display Panel with Real-Time Annotation and CAD and GIS Export
  • Real Time Signal Processing
  • Data Storage and Playback
  • Optional GPS Integration

• Maximum typical logging scan rate of 390 scans per second
• Trigger Modes: Free run, timed interval, shaft encoder, GPS, manual
• Nominal Sampling Rate: 650,000,000 samples per second
• Maximum Resolution: 100 Gigasamples per second
• Hardware Time Varying Gain: 45dB
• Software Time Varying Gain: 60dB
• Software Flat Gain: 60dB
• Temperature: -11 deg. To 50 deg. C
• Moisture and dust resistance: IP 65
• Total System Dynamic Range: >130 dB
• Receiver Dynamic Range: >90 dB
• Sampling Interval: 10 ps-6.4 ns
• Time Range Adjustment Interval: 10 ps
• Pulse Repetition Frequency: 0.1-4 MHz-adjustable
• Samples per Trace: 2-8192, Adjustable
• Effective Bandwidth (typ.): >4 GHz
• Stacking: Automatic
• Transmitter: Stepped Ultra Wideband Triple Frequency
