Name: Trimble S9 HP Total Station With TSC5 Controller
Brand: Trimble
SKU: TS9HPTSWTSC5C
Availability: InStock

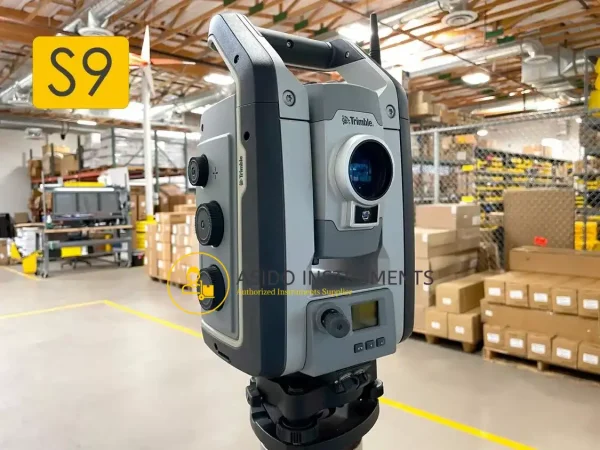

Trimble S9 HP Total Station With TSC5 Controller

~~$12,800.00~~ $6,400.00

In Stock

Manufacturer: Trimble
Model: S9 HP Total Station With TSC5 Controller
Included: Trimble S9 HP, 2 Batteries, Dual bay charger, TSC5 Controller, Hard carrying Case

In Stock

Description

Trimble S9 HP Total Station With TSC5 Controller, Combines top field technologies with the highest level of accuracy and most advanced engineering features. Whether your project involves monitoring, tunneling, or another highly specialized application, the Trimble S9 HP total station is the solution.

Trimble S9 HP Total Station With TSC5 Controller combines all of our top field technologies with our highest level of accuracy and our most advanced engineering features. The result is a high performance system built for the most demanding jobs.

The Trimble S9 HP Total Station is built for superior performance, capable of tackling your most demanding applications such as monitoring and tunneling, where you need a solution with optimal speed, accuracy and reliability. Tailored to fit your needs, The Trimble S9 HP comes in custom configurations to meet the project demands whether that’s long range Finelock, VISION, or Tracklight.

Trimble S9 HP Total Station With TSC5 Controller Features:

Available 0.5” or 1” angle accuracy
Trimble DR HP EDM for the highest accuracy and longest range prism measurements
Optional Trimble technologies such as long range Finelock, VISION or Tracklight
Complete field-to-office solution for quick data capture and processing
Trimble 4D Control software for monitoring management

Included:

Trimble S9 HP
2 Batteries
Dual bay charger
TSC5 Controller
Hard carrying Case

You may also be interested in Trimble S7 Robotic Total Station With TSC3 Controller

Specifications:

Leveling
Circular level in tribrach	8’/2 mm (8’/0.007 ft)
Electronic 2-axis level in the LC-display with a resolution of	0.3” (0.1 mgon)
Servo system
MagDrive servo technology	integrated servo/angle sensor electromagnetic direct drive
Rotation speed	115 degrees/sec (128 gon/sec)
Rotation time Face 1 to Face 2	2.6 sec
Positioning speed 180 degrees (200 gon)	2.6 sec
Clamps and slow motions	Servo-driven, endless fine adjustment
Centering
Centering system	Trimble 3-pin
Optical plummet	Built-in optical plummet
Magnification focusing distance	2.3×/0.5 m–infinity (1.6 ft–infinity)
Telescope
Magnification	30×
Aperture	40 mm (1.57 in)
Field of view at 100 m (328 ft)	2.6 m at 100 m (8.5 ft at 328 ft)
Focusing distance	1.5 m (4.92 ft)–infinity
Illuminated crosshair	Variable (10 steps)
Autofocus	Standard
Camera (Not available in all models)
Chip	Color Digital Image Sensor
Resolution	2048 x 1536 pixels
Focal length	23 mm (0.09 ft)
Depth of field	3 m to infinity (9.84 ft to infinity)
Field of view	16.5° x 12.3° (18.3 gon x 13.7 gon)
Digital zoom	4-step (1x, 2x, 4x, 8x)
Exposure	Spot, HDR, Automatic
Brightness	User-definable
Image storage	Up to 2048 x 1536 pixels
File format	JPEG
Power supply
Internal battery	Rechargeable Li-Ion battery 10.8 V, 6.5 Ah
External power supply	12 V only external
Operating time
One internal battery	Approx. 6.5 hours
Three internal batteries in multi-battery adapter	Approx. 18 hours
Robotic holder with one internal battery	13.5 hours
Operating time for video robotic
One battery	5.5 hours
Three batteries in multi-battery adapter	17 hours
Weight and Dimensions
Instrument (Autolock)	5.4 kg (11.35 lb)
Instrument (Robotic)	5.5 kg (11.57 lb)
Trimble CU controller	0.4 kg (0.88 lb)
Tribrach	0.7 kg (1.54 lb)
Internal battery	0.35 kg (0.77 lb)
Trunnion axis height	196 mm (7.71 in)
