SKF TKSA 51 Laser Shaft Alignment Tool

Description

SKF TKSA 51 Laser Shaft Alignment Tool provides high measurement flexibility and performance suitable for entry-level to expert alignment jobs. Designed to work with the shaft alignment apps on a tablet or smart phone, this intuitive tool is easy to use and requires no special training.

The included accessories enable use of the TKSA 51 for a wide range of alignment applications, such as motors, drives, fans, pumps, gearboxes and more. The tool’s mobile apps include tutorial videos to show operators how to perform accurate measurements.

SKF TKSA 51 Laser Shaft Alignment Tool Features:

• Measurement flexibility
  The well-known, three-position measurement gains additional flexibility as measurements can start at any angle and require a total minimal rotation of only 40 degrees. This enables operators to perform alignments on applications with limited space.
• Automatic reports
  Alignment reports  are generated automatically and can be customised with notes, a machine picture and a signature via touchscreen. These reports can be exported as PDF files and shared with other mobile apps.
• Comprehensive and compact
  A range of included components, such as magnetic mounting brackets and extension rods and chains, increase the TKSA 51’s versatility, yet it remains compact, lightweight and easy to carry.
• 3-D live view
  This feature enables intuitive positioning of heads for quick alignment measurements and displays live when horizontal/vertical alignment correction is achieved. The app enables 3-D rotation of the virtual motor to correspond with the actual machine position.
• Disturbance compensation
  Measurement values are averaged over time to provide accuracy in presence of vibration or other external disturbances.
• Fully functional demo mode
  The app can be downloaded easily, and its demonstration mode allows the shaft alignment process to be experienced before purchasing the TKSA 51.

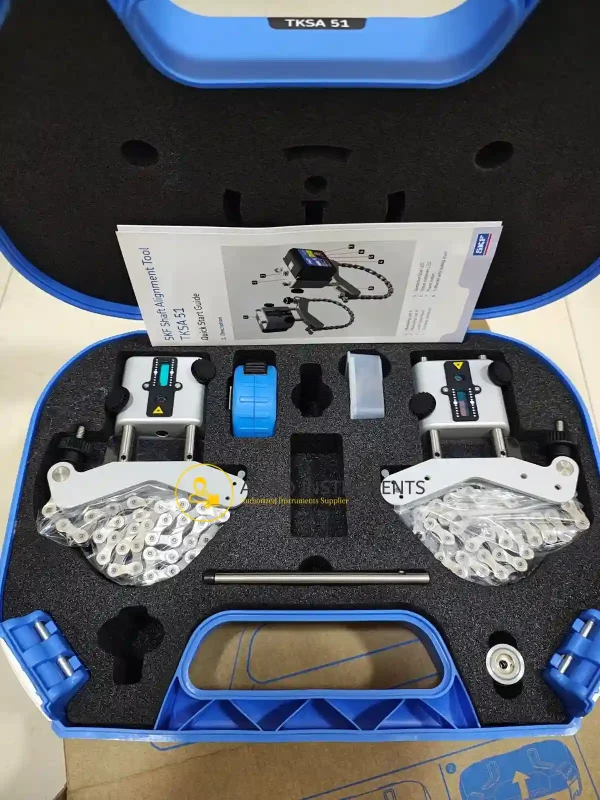

Included:

• (2) TKSA 51 Measuring units
• (2) Shaft brackets with chains and magnets
• (4) 120 mm extension rods
• (2)  Extension chains of 980 mm for shaft up to 450 mm diameter
• (1) Micro USB to USB split charging cable
• (1) 2 m metric and imperial measuring tape
• (1) Printed certificate of calibration and conformance
• (1) Printed quick Start guide (English)
• (1) SKF Carrying case
• (1) Bluetooth 4.0 LE or USB cables
• (1) Calibration certificate
• (2) V-brackets
• (2) Chains 400 mm (15.8 in.)
• (2) Treaded rods 150 mm (5.9 in.) per V-bracket
• (4) Extension rods 90 mm (3.5 in.)

You may also be interested in SKF TKSA 71 Laser Shaft Alignment Tool

Specifications:

• Sensors and communication:
  • 20 mm (0.8 in.) PSD with line laser Class 2
  • Inclinometer ±0.1°; Bluetooth 4.0 LE
• System measuring distance: 0,07 to 5 m (0.23 to 16.4 ft)
• Measuring errors:  <1% ±10 µm
• Housing material : Anodized Aluminum front and PC/ABS plastic back cover
• Operating time; Up to 8 hours, rechargeable Li-ion battery fast charging: 10 min. charging for 1h usage
• Dimensions: 52 × 64 × 50 mm (2.1 × 2.5 × 2 in.)
• Weight: 190 g (0.4 lb)
• Operating device: Samsung Galaxy Tab Active 2 and iPad Mini recommended iPad, iPod Touch iPhone SE, Galaxy S6 or above (all not included)
• Software/App update Apple AppStore or on Google Play Store
• Operating system requirements: Apple iOS 9 or Android OS 4.4.2 (and above)
• Alignment method: Alignment of horizontal and vertical shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 40° rotation), soft foot
• Live correction values:  Vertical and horizontal
• Extra features:
• Machine library
  • QR code reading
  • Target values
  • Disturbance compensation
  • 3D machine free view
  • Screen rotation on tablets
  • Automatic PDF report
• Fixture: 2 × V-brackets with chains, width 15 mm (0.6 in.)
• Shaft diameters:
  • 20 to 150 mm (0.8 to 5.9 in.)
  • 450 mm (17.7 in.) with extension chains (included)
• Max. coupling height *: 45 mm (1.8 in.) with standard rods plus 120 mm (4.7 in.) per set of extension rods
• Power adapter:
  • Charging via micro USB port (5V)
  • Micro USB to USB split charging cable supplied
  • Compatible with 5V USB chargers (not included)
• Operating temperature: 0 to 45 °C (32 to 113 °F)
• IP rating: IP 54
• Carrying case dimensions: 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.)
• Total weight (incl. case): 2,9 kg (6.4 lb)
• Calibration certificate: Supplied with 2 years validity
