Name: Shining3D EinScan Pro HD
Brand: Shining 3D
SKU: SEPHD
Availability: InStock

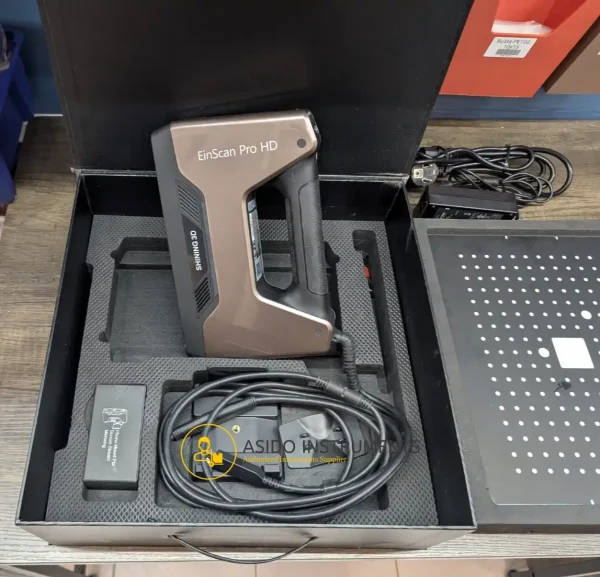

Shining3D EinScan Pro HD

~~$6,000.00~~ $3,000.00

In Stock

Manufacturer: Shining3D
Model: EinScan Pro HD
Included: 1x EinScan Pro HD handheld 3D Scanner, 1x Scanning Software (EXScan Pro), 1x SolidEdge Shining 3D Edition, 1x Power Adapter / Cable, 1x Calibration Board, 1x Pack Marker Dots (5000/pcs)

This product has been added to 1 people'scarts.

In Stock

Description

Shining3D EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is reliable assistant for designers and engineers who care about high quality 3D modeling.

Impressive High Resolution for Fine Details

By adopting a new structure light projection modular, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized to Handheld HD Scan Mode.By 0.2mm minimum point distance setting with optimized algorithm, it brings high resolution and accuracy in handheld scanning as good as under fixed scan.

Less Limitations of Scan Objects

With new lighting projection hardware and software algorithm, EinScan Pro HD is capable to scan a wider range of objects of dark or black color and casting metal surface, enriching the capability for 3D scanning of materials.

Fast Scanning Speed and Data Transmission

EinScan Pro HD has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high speed data transmission.

High Accuracy for High Quality 3D Modeling

By kinds of positioning methods, both scanner or objects can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m.

Shining3D EinScan Pro HD Features:

Clear work guide process
User friendly interface
Data post processing
Data measuring

Shining3D EinScan Pro HD Included:

1x EinScan Pro HD handheld 3D Scanner
1x Scanning Software (EXScan Pro)
1x SolidEdge Shining 3D Edition
1x Power Adapter / Cable
1x Calibration Board
1x Pack Marker Dots (5000/pcs)

You may also be interested in Easy-Laser XT660 Shaft Alignment

Shining3D EinScan Pro HD Specifications:

Model	EinScan Pro HD
Scan Mode	Handheld HD Scan	Handheld Rapid Scan	Fixed Scan with turntable (with Add-on: Industrial Pack)	Fixed Scan without turntable (with Add-on: Industrial Pack)
Scan Accuracy	up to 0.045 mm	up to 0.1 mm	0.04 mm (single shot accuracy)
Volumetric Accuracy [1]	0.3 mm/m (Markers Alignment)		/	/
Scan Speed	10 fps 3,000,000 points/s	30 fps 1,500,000 points/s	Single Scan < 0.5s
Point Distance	0.2 mm-3 mm	0.25 mm-3 mm	0.24 mm
Single Scan Range	209160 mm——310240 mm
Depth of Field	±100 mm
Working Center Distance	510 mm
Light Source	LED
Align Mode	Markers Alignment, Feature Alignment [2], Hybrid Alignment [3]	Markers Alignment, Texture Alignment [4], Feature Alignment, Hybrid Alignment	Turntable Coded Targets, Feature, Markers, Manual Alignment	Markers, Feature, Manual Alignment
Texture Scan	Yes (with Add-on: Color Pack)
Outdoor Operation	Set up the shelter or cover to avoid direct sunlight
Special Scan Object	For the transparent, highly reflective or some dark objects, please spray powder before scanning
Software included	ExScan Pro, Solid Edge SHINING3D Edition
Data Format	OBJ , STL , ASC , PLY , 3MF, P3
Scan Body Weight	1.13kg (include a USB cable)
Supported OS	Win 10, 64 bit
PC Requirements	Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
