Name: Sciaps X-5 XRF Analyzer
Brand: Sciaps
SKU: SX5XRFA
Availability: InStock

Sciaps X-5 XRF Analyzer

~~$9,200.00~~ $4,600.00

In Stock

Manufacturer: Sciaps
Model: X-5
Condition: New

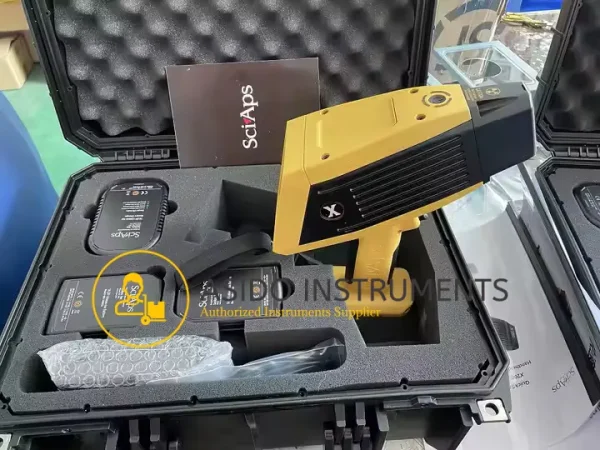

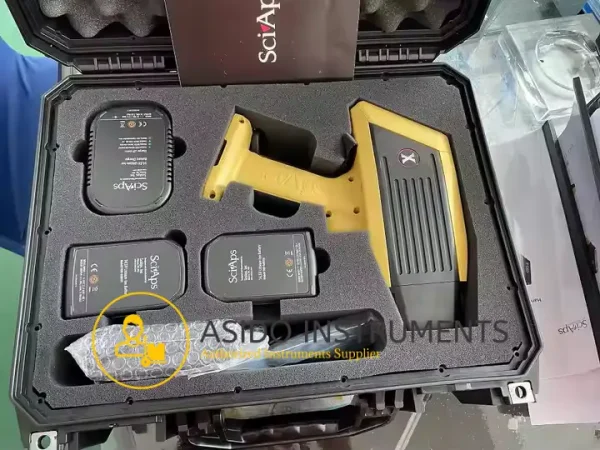

Included: Battery, AC adapter/ Charger, Power cord for AC adapter, Hard Carrying Case

In Stock

Description

Sciaps X-5 XRF Analyzer is the world’s lightest, smallest, fastest, high-precision family of XRF analyzers, under 3 lbs. with improved heat dissipation and new user interface. Built on Android OS with Wi-Fi, Bluetooth, GPS and USB, you can manage your data and fleet anywhere, print or email results, and connect to virtually any information management system for seamless test data and reports. And visibility? An integrated camera with video for sample viewing is included with all models, and the latest smartphone display provides easy viewing in all lighting conditions.

All internal electronics now use less power and operate at higher temperatures—no drift or shutdown.
Redesigned heat sinking—can now operate continuously up to 110F (43C) ambient temperatures
New internal circuit boards
New housing and metal components
Up-to-date software, user interface, and full recalibration
Same advanced X-ray tube as other X models
May be factory calibrated with fundamental parameters, Compton Normalization (EPA Method 6200), or user-defined empirical calibrations.

Sciaps X-5 XRF Analyzer Best-in-class performance and speed

Sciaps X-5 XRF Analyzer is an excellent choice for conducting basic analysis of transition and heavy metals. Designed for users who do not require measurements of Mg, Al, Si, S, or P in alloys or other materials.
For these users, we’ve re-engineered this classic technology and equipped it with more features for many applications at a great value.

‍Alloy, Scrap: For many NDT/PMI jobs that require verification of low alloy, Cr/Mo steels, stainless and corrosion resistant alloys, the Sciaps X-5 XRF Analyzer often delivers excellent performance. Alloy applications include sorting stainless steels, high temp alloys and red metals. Read more about SciAps for Scrap Recycling.

‍And more: The Sciaps X-5 XRF Analyzer is also available for precious metals, RoHS, soil, mining, car catalysts, industrial lead paint and other user-customizable applications.

You may also be interested in Sciaps X-200 XRF Analyzer

Specifications

Weight	2.98 lbs. (1.35 kg) with battery
Excitation Source	4 W, 40 kV Rh anode X-ray tube
Avaliable Apps	Precious Metals, RoHS, Soil, Mining, Car Catalysts, Industrial Lead Paint
Dimensions	8.5 x 9.5 x 2.4 inches
Detector	7 mm2 SDD, Silicon Drift Detector, (active area), 170 eV resolution FWHM at 5.95 Mn K-alpha line
X-Ray Filtering	Single primary beam filter.
Display	2.7-inch color capacitive touchscreen, 400 MHz Qualcomm Adreno 306 2/D/3D graphics accelerator. Rear-facing display for easy results viewing, readable in all conditions.
Processing Electronics	1.2 GHz Quad ARM Cortex A53 64/32-bit, RAM 2 GB LP-DDR3. Storage: 16 GB eMMC.
Elements	24 elements standard (application dependent), additional elements may be added upon user request: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Se, Nb, Mo, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Au, Pb, and Bi.
Power	On-board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power. Hot-swap capability (60s max swap time).
Pulse Processor	12 bit with digitization rate of 80 MSPS 8K channel MCA USB 2.0 for high-speed data transfer to host processor. Digital filtering implemented in FPGA for high throughput pulse processing 20 nS – 24 uS peaking time.
Calibrations	Analyzers may be factory calibrated with fundamental parameters, Compton Normalization (EPA Method 6200), or user-defined empirical calibrations.
Connectivity	Wi-Fi, Bluetooth, USB connectivity to most devices, including SciAps Profile Builder software for PC or tablet. SciAps Cloud data management options available.
Environmental Temperature Range	10 F to 130 F at 25% duty cycle
Dual Cameras	Internal high-resolution camera for sample viewing, welds, etc. Macro-camera for photo documentation, reading and storing 2D/3D barcodes and QR codes.
Security	Password protected multi-user support with configurable access.
Regulatory	CE, RoHS, USFDA registered, Canada RED Act.
