PRUFTECHNIK VIBXPERT II Portable Vibration Analyser

Description

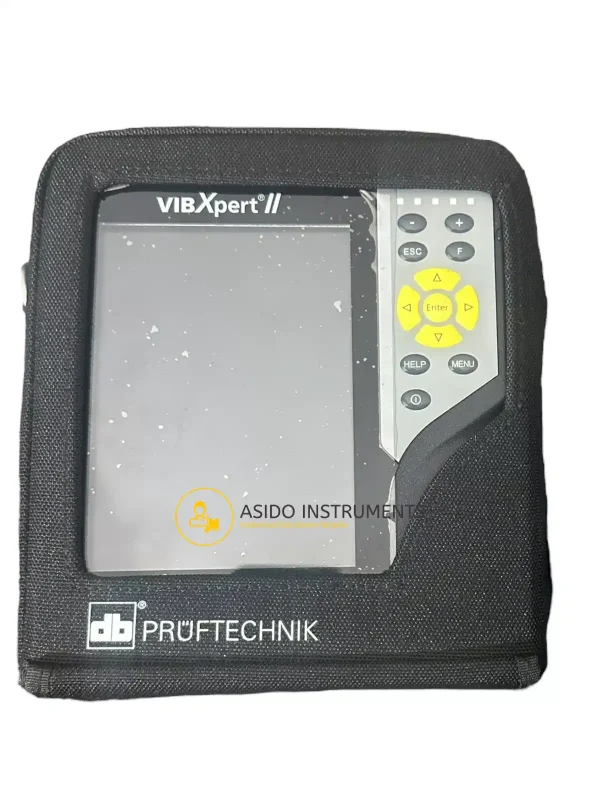

PRUFTECHNIK VIBXPERT II Portable Vibration Analyser is a high-performance, intrinsically safe, fully-featured data collector, vibration analyzer and field balancer for easy condition monitoring and troubleshooting of rotating equipment in explosive environments such as petrochemical plants, refineries, offshore oil rigs, etc.

VIBXPERT EX collects field data including vibration information, bearing condition, inspection and process data and seamlessly integrates with the OMNITREND Center software platform for in-depth analysis.

The modular firmware structure allows you to upgrade the VIBXPERT EX from a route data collector to a full-blown troubleshooting device with advanced features such as coast down/run-up measurements, event recording, ODS & modal analysis and cross-channel phase measurement.

It is also possible to connect the VIBXPERT EX to protection systems via the buffered outputs. This enables you to perform additional analysis such as shaft vibration, shaft centerline plots or orbits e.g. on turbines, compressors and other turbomachinery.

PRUFTECHNIK VIBXPERT II Portable Vibration Analyser Features:

• Approved for ATEX Zone 1
• Intuitive joystick operation (left- or right-handed)
• Fast data acquisition with “trending spectra”
• Robust aluminum housing
• Compatible with VIBCODE transducer
• Highest resolution for detailed frequency analysis
• Interface to machine protection systems for further analysis

Included:

• PRUFTECHNIK VIBXPERT II Portable Vibration Analyser with Accessories

You may also be interested in Polyga H3 3D Scanner

Specifications:

• Input
  Analog, Vibration, 2x
  Voltage (AC/DC, ±30 V max.)
  Current (AC/DC, ±30 mA max.)
  IEPE-type accelerometer (2 mA, 24 V max.)
  Current Linedrive (CLD) accelerometer (10 V, 10 mA max.)
• Frequency range
  DC … 51.2 kHz (Acceleration from 0.5 Hz)
• Dynamic range
  96 dB (measurement) / 136 dB (total)
• Sampling frequency
  up to 131 kHz per channel
• Analog, Temperature, 1x
  Thermocouple (type K)
• Digital, Pulse/ Tacho, 1x
  RPM, Trigger, Keyphaser with pulse and AC signals: 0 V … 26 V or -26 V … 0 V
• Max. input voltage
  ± 26 V
• Switching threshold for 0 V … 26 V signal
  max. 2.5 V rising, min. 0.6 V falling
• Switching threshold for -26 V …0 V signal
  min. -8 V rising, max. -10 V falling
• Pulse width
  < 0.1 ms
• Output
• Stroboscope control
  TTL output level
• Frequency range
  0 – 500 Hz
• Resolution
  0.05 Hz
• Signal-Out
  Connection for headphones to listen to the analog input signal; signal processing (oscilloscope)
• Frequency range
  0.5 Hz – 40 kHz
• Output impedance
  100 Ohm
• Measurement range / Accuracy
• Vibration acceleration
  depends on the sensor connected
• Shock pulse
  -10 …80 dBsv / ± 3dBsv
• RPM
  10 … 200 000 min-1 / ±0.1‰ or ± 1 min-1 (the lower accuracy is applicable)
• Temperature, type K
  -50 … 1000°C / 1% or ±1°C (the lower accuracy is applicable)
• Standards fulfilled
  Frequency response acc to ISO 2954
• Display
• Type
  LCD, backlit
• Pixel area
  115 x 78 mm [ 4 1/2″ x 3 1/16″]
• Resolution
  1/2 VGA (480 x 320 pixel)
• Color depth
  16 grey scales
• Power supply
• Battery type
  Li Ion rechargeable battery pack (7.2V / 4.8Ah – 34 Wh)
• Charging time
  < 5 hours in the instrument
• Charger, input
  110-240 V / 50-60 Hz
• Charging temperature
  0°C … 50°C [ 32 °F … 122 °F]
• Computer
• Processor
  Intel Strong ARM 206 MHz
• Keyboard
  2 joysticks and 12 keys for right-hand or left-hand operation. Keyboard illumination controlled by ambient light.
• Memory
  Internal: 64 MB RAM; Compact Flash: 1 GB or 4 GB
• Serial interface
  RS 232, <115 kBaud
• USB interface
  USB host for printing; USB slave for data exchange with OMNITREND
• Ethernet interface
  10 Mbit (10Base T), 10 Mbit (10Base T)
• Environment / General
• Connectors
  Analog / Digital channels: MiniSnap socket Thermocouple (type K): QLA socket; all compatible to
  VIBSCANNER
• Housing
  Aluminium
• Dimensions
  250 x 220 x 37 mm [ 9 13/16″ x 8 11/16″ x 1 7/16″ ] (LxWxH)
• Weight
  approx. 2.3 kg [81 oz]
• Environmental protection
  IP65, dust and splash-proofed
• Temperature range
  -10°C … 60°C (Operation), [ 14 °F … 140°F]
  -20°C … 60°C (Storage), [ -4 °F … 140°F]
• Intrinsic safety details
• Marking
  II 2G Ex ib IIC T4
• Temperature range
  -10 °C … 60 °C
