NEW Olympus Vanta Element S Handheld XRF Analyzer
Weight1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
This product has been added to 2 people'scarts.
Description

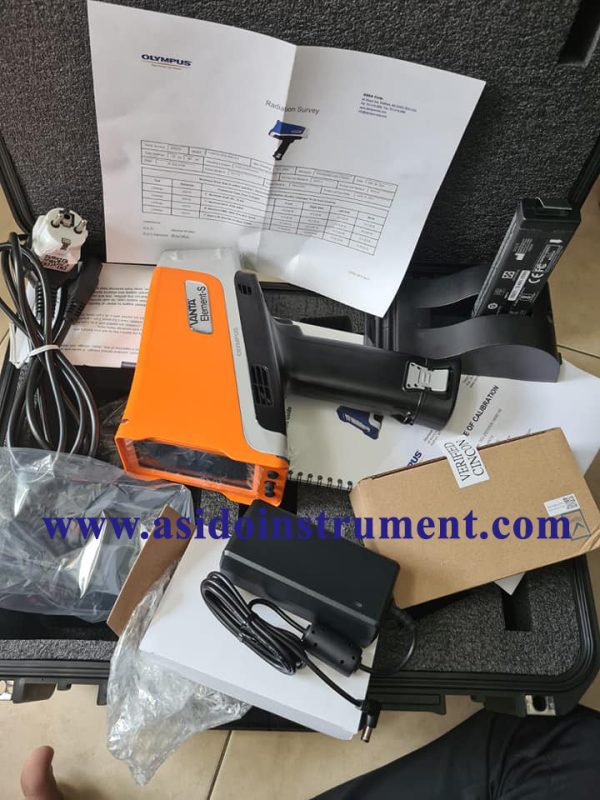

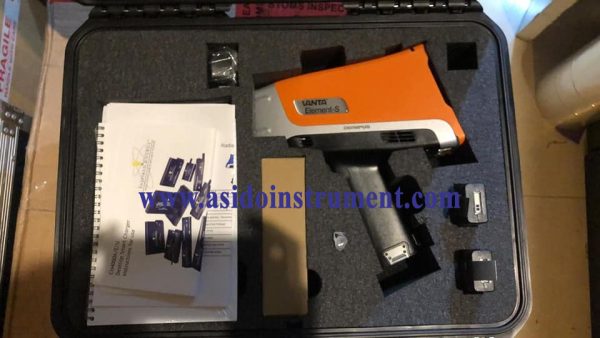

Olympus Vanta Element S Handheld XRF Analyzer
The Vanta Element handheld X-ray fluorescence (XRF) analyzer provides elemental analysis for alloy grade identification and sorting in as little as one second. Easy to operate, the Vanta Element analyzer’s clear, fast grade ID and on-screen grade comparison help speed up metal testing for scrap sorting and metal manufacturing.The analyzer’s smartphone-like user interface helps increase efficiency and throughput with features like on-screen grade comparison, sorting instructions, and identifying contaminants or the presence of residual elements that can compromise value and quality. Easy to use and easy to learn, the software helps reduce user training and streamlines the sorting process.
The Vanta Element XRF analyzer series provides elemental analysis for fast alloy grade identification and sorting at an affordable price. The series is available in two cost-effective models:
Vanta Element analyzer for affordable alloy ID
Vanta Element-S analyzer for affordable alloy ID, including light element detection for magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
Both models feature fast grade ID and clear on-screen grade comparison to speed up metal testing for scrap sorting, metal manufacturing, and precious metals analysis.
The smartphone-like user interface is easy to use and easy to learn, helping to streamline both user training and the sorting process.
Vanta Element-S Model
Use for Affordable light element detection
Best for Analyzing magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
Detector Silicon drift detector (SDD)
Window Prolene® window with Kapton mesh support
Excitation source 4-watt X-ray tube with 50kV silver (Ag) anode
Olympus Vanta Element S Handheld XRF Analyzer
Vanta Specifications
| Vanta Element Model | Vanta Element-S Model | |
|---|---|---|
| Dimensions (W x H x D) | 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.) | |
| Weight | 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery | |
| Excitation Source | 2-watt X-ray tube with 35 kV tungsten anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Primary Beam Filtration | Fixed aluminum filter | 8-position filter wheel |
| Detector | Silicon PIN detector | Silicon drift detector (SDD) |
| Barometer | No | Yes |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max | |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control | |
| Operating Environment | Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle Humidity: 10% to 90% relative humidity noncondensing |
|
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test | |
| IP Rating and Detector Shutter | IP54: dust protected and protected against water splashing from all directions | |
| Operating System | Linux® | |
| Data Storage | microSD™ slot with removable 1 GB Industrial SD card included | |
| USB | Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives. One USB 2.0 type mini-B port for connection to computer. |
|
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | |
| Bluetooth | Supports Bluetooth® with an optional USB adaptor | |
| Warranty | One-year warranty | |
| Optional Accessories | Field Stand, Soil Foot, and Holster | |
Vanta Element-S Model
Use for Affordable light element detection
Best for Analyzing magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
Detector Silicon drift detector (SDD)
Window Prolene® window with Kapton mesh support
Excitation source 4-watt X-ray tube with 50kV silver (Ag) anode
