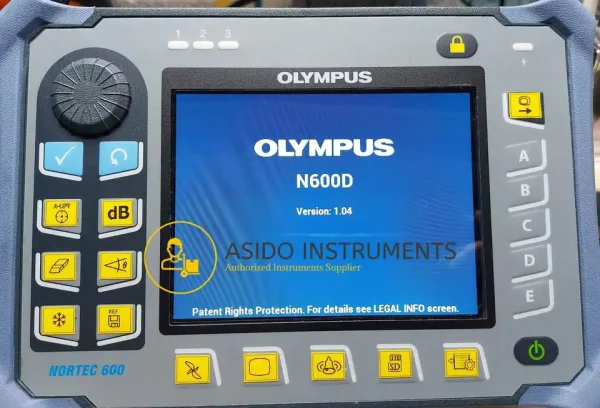

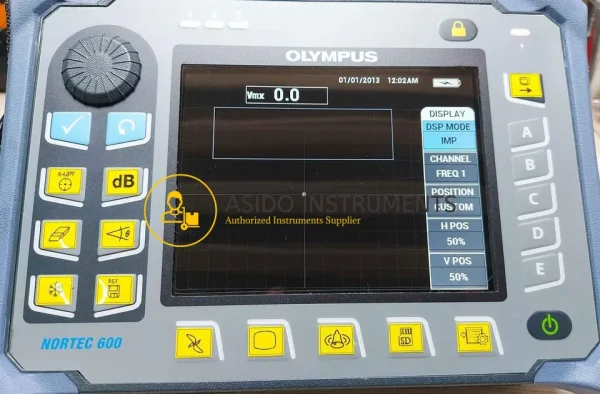

Olympus Nortec 600D Eddy Current Flaw Detector

Description

Olympus Nortec 600D Eddy Current Flaw Detector is capable of producing highly visible and contrasting eddy current signals in any lighting condition. The redesigned interface of the NORTEC 600 borrows the intuitive, knob-operated navigation of its NORTEC predecessors and combines it with the simple menu structure and highly efficient direct-access keys of other popular Evident instruments.

Available in four versatile models, the NORTEC 600 offers a wide range of innovative functionalities, including an Application Selection menu, an all-in-one display, real-time readings, and signal calibration in Freeze mode, ensuring that inspections are quick and easy for any level of operator.

Olympus Nortec 600D Eddy Current Flaw Detector Features:

• Designed to meet the requirements of IP66.
• EN-15548 compliant.
• Long battery life (up to 10 hours).
• Bright, 5.7 inch (14,5 cm) VGA display.
• Full-screen option in any display mode.
• Improved filters for rotary scanner mode.
• Intuitive interface with Application Selection presets.
• All-settings configuration page.
• 10 Hz to 12 MHz frequency capacity.
• Automatic internal balancing (BNC connector).
• Up to two real-time readings.
• True automatic mixing.
• Storage capacity of up to 500 files (program and data).
• On-board file preview.

Included:

• Charger
• Power cord
• Leaflet
• User’s Manual and PC interface
• Probe cable
• MicroSD 2 GB (1 internal, 1 external)
• USB cable
• 67 watt-hour battery
• AA battery holder
• Hand strap
• Transport case
• Weld Inspection Kit
