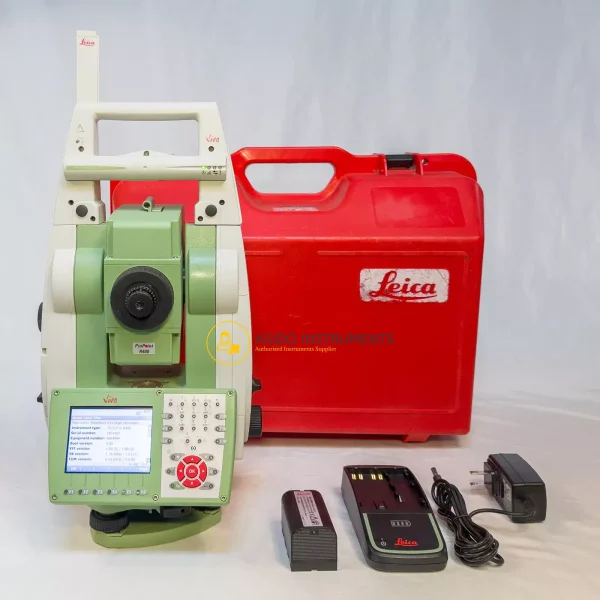

Leica Viva TS15 Total Stations
In Stock
- Manufacturer: Leica
- Model: Viva TS15 Total Stations
- Included: Leica TS15 P 5″ R400 Robotic Imaging Total Station [ID- -L/T*], Battery Pack, Carrying Case
In Stock
Description
Leica Viva TS15 Total Stations the addition of advanced imaging functionality and the Leica SmartWorx Viva easy to use onboard software makes the fastest total station even faster! Leica Viva TS15 adds an advanced image.
Leica Viva TS15 Total Stations sensor to the already proven total station sensors. With unique capture sketch-link functionality, total station images can be captured, enhanced with sketching and linked to any point of interest. Leica Viva TS15 Total Stations with tap-turn-measure any remote point can be measured without returning to the total station. Every vision on every scale becomes reality with ease.
Leica Viva TS15 Total Stations uses years of experience to optimally combine the world’s best total station sensors: angles, distances, drives and the patented PowerSearch target recognition camera.
Leica Viva TS15 Total Stations Features:
- Image Notes – Capture an image, screenshot or template, sketch on
it and link it to any object in the database - Image Assisted Surveying – Simply tap on the display and the
total station will turn and measure the desired target - Search – the unique PowerSearch finds your prism within seconds
- Lock – Viva TS15 stays locked onto your prism in the most
demanding environments - Measure – PinPoint EDM seamlessly harmonizes with precise angle
sensors to complete the measurement process - Use SmartStation for TPS setup without the need of control
points, traverses and resections - Use SmartPole to save time with setup “On-the-fly” and measure
parallel with TPS and GNSS for double productivity
Leica Viva TS15 Total Stations Included:
- Leica TS15 P 5″ R400 Robotic Imaging Total Station [ID- -L/T*]
- Battery Pack
- Carrying Case
You may also be interested in Leica Viva TS11
Leica Viva TS15 Total Stations Specifications:
| Angular Measurement | |
| Accuracy Hz, V | 5’’ (1.5 mgon) |
| Display resolution | 0.1’’ (0.1 mgon) |
| Method | absolute, continuous, diametrical |
| Compensation | Quadruple axis compensation |
| Compensator setting accuracy | 1.5’’ (0.5 mgon) |
| Distance Measurement | |
| Reflective tape (60 mm x 60 mm) | 250 m (800 ft) |
| Accuracy / Measurement Time | |
| Standard | 1 mm + 1.5 ppm / typ. 2.4 s |
| Fast | 3 mm + 1.5 ppm / typ. 0.8 s |
| Continuous | 3 mm + 1.5 ppm / typ. <0.15 s |
| Distance Measurement (Any Surface) | |
| Range | 400 m (1310 ft) |
| Accuracy / Measurement Time | 2 mm + 2 ppm / typ. 3 s |
| Distance Measurement (Long-range) | |
| Long-range | >10000 m (>32800 ft) |
| Accuracy / Measurement Time | Long-range: 5 mm + 2 ppm / typ. 2.5 s |
| General | |
| Display resolution | 0.1 mm |
| Shortest measurable distance | 1.5 m |
| Method | System analyzer based on phase shift measurement (coaxial, visible red laser) |
| Laser dot size (Non-Prism) | At 30 m: 7 mm x 10 mm, at 50 m: 8 mm x 20 mm |
| Operating system & Processor | |
| Operating System | Windows CE 6.0 |
| Processor | Freescale i.MX31 533 MHz ARM Core |
| Telescope | |
| Magnification | 30 x |
| Free objective aperture | 40 mm |
| Field of view | 1° 30’ (1.66 gon) / 2.7 m at 100 m |
| Focusing range | 1.7 m to infinity |
| Keyboard and Display | |
| Display | 640 x 480 pixel (VGA) color TFT with LED backlight and touch screen |
| Keyboard | 36 keys (12 function keys, 12 alphanumeric keys), illumination |
| Position | face I standard / face II optional |
| Memory, Ports & Communication | |
| Internal memory / Memory devices | 1 GB (nonvolatile NAND Flash) / SD card, USB stick |
| Interfaces | RS232, Bluetooth® Wireless-Technology, USB mini AB OTG |
| Operation | |
| Sensitivity of Circular level | 6’ / 2 mm |
| Centering accuracy of Laser plummet | 1.5 mm at 1.5 m |
| Number of drives | 1 horizontal / 1 vertical |
| Power Management | |
| Internal Battery | Lithium Ion |
| Operating Time | 5 – 8 h (GEB221) |
| Voltage / Capacity | 7.4 V / 4.4 Ah |
| Weight and Dimensions | |
| Weight of Total Station | 4.9 – 5.5 kg / 0.2 kg / 0.8 kg |
| Height / Width / Length | 345 mm / 226 mm / 203 mm |
| Environmental specifications | |
| Working / Storage temperature range | -20° C to +50° C / -40° C to +70° C |
| Dust / water (IEC 60529) / Humidity | IP55 / 95%, non-condensing |
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 70 × 70 × 60 cm |
