Leica ScanStation C5 Laser Scanner
In Stock
- Manufacturer: Leica
- Model: ScanStation C5 Laser Scanner
- Included: Leica ScanStation C5 scan head , Tribrach without optical plummet, Lithium-Ion battery , Basic charger , AC/DC adapter for basic charger, Daisy chain cable for basic charger , Car-Adapter cable for basic charger , ScanStation data cable, Scanner height meter , Distance holder for height meter, Cleaning tissue , CD-ROM Cyclone, ScanStation User manual , ScanStation System Field Manual, ScanStation System USB stick , Cyclone BASIC , CCP Basic for ScanStation
In Stock
Description
Leica ScanStation C5 Laser Scanner is great for entry level surveyors looking for professional quality with the option to upgrade features for even more flexibility.
Leica ScanStation C5 Laser Scanner features to the life of your ScanStation to meet the increasing demands of client jobs. Leica ScanStation C5 Laser Scanner is easily upgradeable to long range, high-accuracy dual-axis compensation for standard survey workflows, faster scan speed and a high-res camera for mapping colors.
Leica ScanStation C5 Laser Scanner features an user friendly, easy to learn, color touch screen interface to get users started right away. Leica ScanStation C5 Laser Scanner also features an optional, convenient handheld control.
Leica ScanStation C5 Laser Scanner Features:
- High performance laser scanner
- Data storage
- Touch screen interface
- Video camera
- Laser plummet
Leica ScanStation C5 Laser Scanner Included:
- Leica ScanStation C5 scan head
- Tribrach without optical plummet
- Lithium-Ion battery
- Basic charger
- AC/DC adapter for basic charger
- Daisy chain cable for basic charger
- Car-Adapter cable for basic charger
- ScanStation data cable
- Scanner height meter
- Distance holder for height meter
- Cleaning tissue
- CD-ROM Cyclone
- ScanStation User manual
- ScanStation System Field Manual
- ScanStation System USB stick
- Cyclone BASIC
- CCP Basic for ScanStation
You may also be interested in Leica ScanStation C10 3D Laser Scanner
Specifications:
| General | |
| Instrument type | Compact, pulsed, high speed laser scanner, with surveygrade accuracy, range, and field-of-view; integrated video camera and laser plummet |
| User interface | Onboard control, notebook, tablet PC or remote controller |
| Data storage | Integrated solid-state drive (SSD), external PC or external USB device |
| Camera | Auto-adjusting, integrated high-resolution video camera |
| System Performance | |
| Accuracy of single measurement | Position: 6 mm Distance: 4 mm Angle (horizontal/vertical): 60 µrad / 60 µrad (12” / 12”) |
| Modeled surface precision | 2 mm |
| Target acquisition | 2 mm std. deviation |
| Laser Scanning System | |
| Type | Pulsed; proprietary microchip |
| Color | Green, wavelength = 532 nm |
| Laser Class | 3R (IEC 60825-1) |
| Scan resolution | |
| Spot size | From 0 – 50 m: 4.5 mm (FWHH-based); 7 mm (Gaussian-based) |
| Point spacing | Fully selectable horizontal and vertical; <1 mm minimum spacing, through full range; single point dwell capacity |
| Field-of-View | Horizontal: 360° (maximum) Vertical: 270° (maximum) Aiming/Sighting: Parallax-free, integrated zoom video |
| Scanning Optics | Vertically rotating mirror on horizontally rotating base; Smart X-Mirror™ automatically spins or oscillates for minimum scan time |
| Data storage capacity | 80 GB onboard solid-state drive (SSD) or external USB device |
| Communications | Dynamic Internet Protocol (IP) Address, Ethernet or wireless LAN (WLAN) with external adapter |
| Onboard display | Touchscreen control with stylus, full color graphic display, QVGA (320 x 240 pixels) |
| Level indicator | External bubble, electronic bubble in onboard control and Cyclone software |
| Data transfer | Ethernet, WLAN or USB 2.0 device |
| Laser plummet | Laser class: 2 (IEC 60825-1) Centering accuracy: 1.5 mm @ 1.5 m Laser dot diameter: 2.5 mm @ 1.5 m Selectable ON/OFF |
| Upgrade Options | |
| Scan rate | Basic: 25,000 pts/sec Upgrade: up to 50,000 pts/sec |
| Range | Basic: 35 m @ ≥ 18% albedo Upgrade: 300 m @ 90% albedo, 134 m @ 18% albedo |
| Dual-axis compensator | Basic: not available Upgrade: Selectable on/off, resolution 1”, dynamic range +/- 5’, accuracy 1.5″ |
| Integrated camera | Basic: Streaming video with zoom; auto-adjusts to ambient lighting Upgrade: Streaming video with zoom; auto-adjusts to ambient lighting; single image acquisition for color mapping, single 17° 17° image: 1920 x 1920 pixels (4 megapixels) Full 360° x 270° dome: 260 images |
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 70 × 70 × 60 cm |
Be the first to review “Leica ScanStation C5 Laser Scanner”
Related products
50%

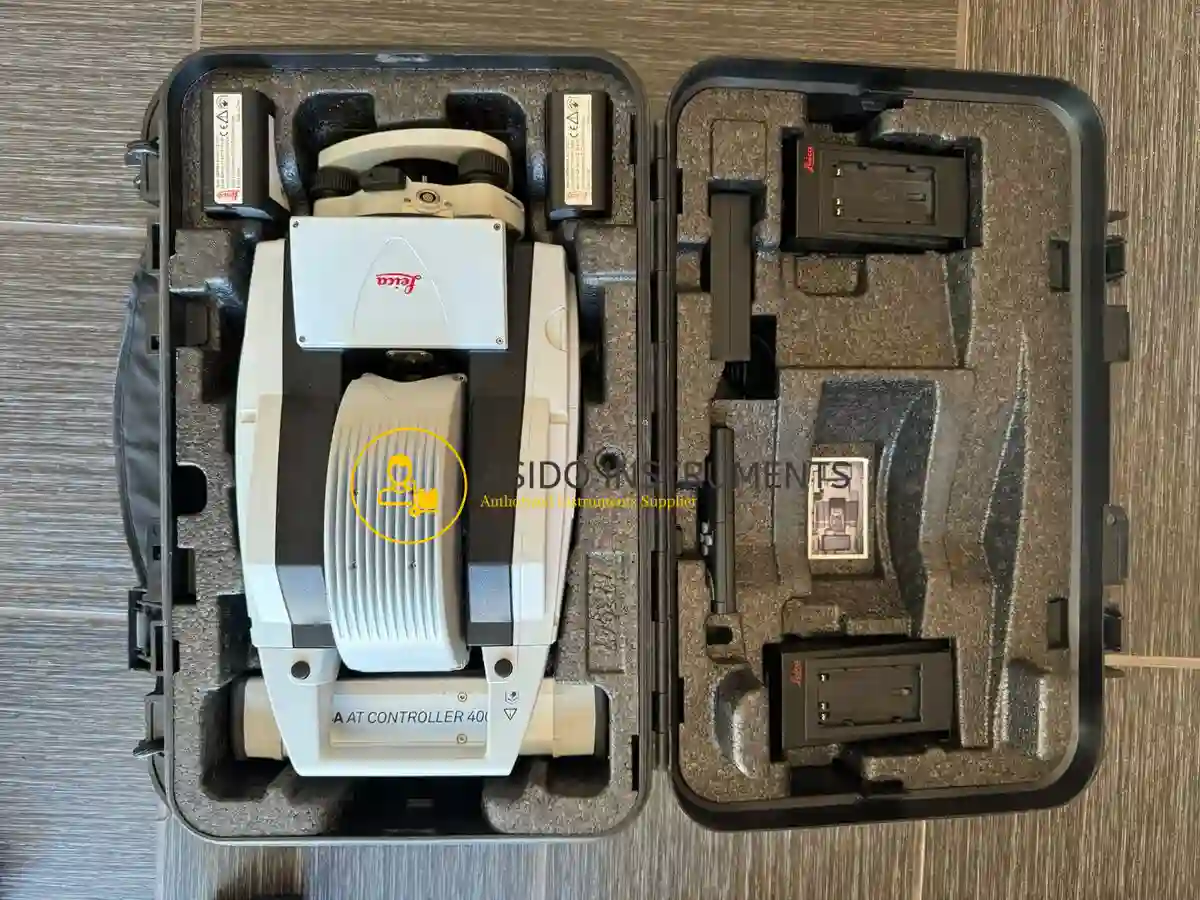

Leica AT402 Laser Tracker
