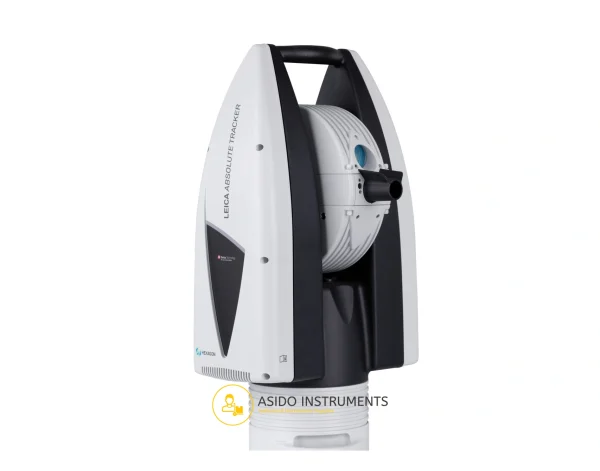

Leica Absolute Tracker AT500

Description

Leica Absolute Tracker AT500 benefits from a fully battery-powered, integrated-controller design that makes it the most portable and easy to setup member of the Absolute Tracker range. Operational simplicity plays a key role in driving the enhanced productivity proposition of the AT500, from its easy ultra-long-range reflector measurement capabilities to the entry-level 6DoF probing functionality delivered by B-Probeplus.

With the usability and robust design that are the defining features of the AT500, absolutely anyone can measure absolutely anything, absolutely anywhere.

Leica Absolute Tracker AT500 Features:

• MEASURE ANYWHERE WITH ENHANCED PRODUCTIVITY
  The first true all-in-one Hexagon laser tracker measurement solution, the Leica Absolute Tracker AT500 benefits from a fully battery-powered, integrated-controller design that makes it the most portable and easy to setup member of the Absolute Tracker range. Operational simplicity plays a key role in driving the enhanced productivity proposition of the AT500, from its easy ultra-long-range reflector measurement capabilities to the entry-level 6DoF probing functionality delivered by B-Probeplus. With the usability and robust design that are the defining features of the AT500, absolutely anyone can measure absolutely anything, absolutely anywhere.
• MEASUREMENT ANYWHERE
  The AT500 boasts IP54-rated protection from the elements, as well as an extended working temperature range of -15 to +50°C, allowing for measurement from the mountaintop to the foundry.
• NEXT-GENERATION PROBING
  The battery-powered B-Probeplus brings entry-level 6DoF handheld probing to the 3D tracker segment. The probe is easier to handle than the previous generation and boasts a widened acceptance angle and increased range.
• INTEGRATED FEATURES
  The batteries that power the AT500 have been built into the tracker head, making this a system that’s ideal for setup and operation beyond the bounds of traditional inspection locations.
• LIVE 6DOF INFORMATION
  The digital read-out of the B-Probeplus puts direct measurement feedback in the users hands. This simplifies and speeds up probing operations, and is particularly useful in supporting drilling applications when combined with a punch tool accessory.
• EXTENDED RANGE
  The full reflector measurement range of the AT500 extends across a volume 320 metres in diameter, making it the ideal solution for inspection of large structures such as antennas or ships.
• PRODUCTIVITY MADE EASY
  One-button operation combined with WiFi access point connectivity and integrated batteries makes the AT500 the easiest tracker to use. And it’s not limited to upright configuration — it can be used in any orientation, including upside down.

Included:

• (1X) Leica AT500 Probing System
• (1X) Break Resistant Reflector 1.5” (BRR)
• (1X) MAT22, Pass Point Target Kit 576249
• (1X) B-Probe Plus
• (1X) AT Quick Release Mount incl. Mandrel
• (1X) Power Supply Unit
• (1X) Hinged Hook Wrench
• (1X) Kodiak Series Heavy-Duty Portable Metrology Tripod – with Carbon Fiber Legs
• (1X) MST Tripod Transportation Case
• (1X) Battery Charger, AA/AA (Use with Leica B-Probe+)
• (2X) GEB364 Batteries
• (1X) GKL341 Charger Pro 5000
• (1X) Leica LT-Imperial Reflector Holder Kit
• (1X) Optical Cleaning Kit
• (1X) Protective Sensor Cover
• (1X) Transport Case (Hard box)
• (1X) Coverage until Febuary 2026 of MyCare – Premium-Tracker Probing w/PolyWorks PWIP

You may also be interested in Leica AT403 Laser Tracker

Specifications:

• Measurement ranges: Tracker Model: 3D and 6D, AT500: 0.8 to 160m. and 1.6 to 12m
• Tracker size: weight 477 x 261 x 238 mm and 13.6 kg
• Controller size: weight built-in controller, 0 kg
• Laser class: Class 2 Laser Product in accordance with IEC 60825-1 Second Edition (2014-05)
• Overview Camera: 5MP and 10-degree FOV
• Power-Lock range: 80m.
• ISO 17025 certified: Available
• Operating temperature: -15°C to +50°C
• Relative humidity: max. 95% non-condensing
• Operating elevation: -700 m to +5500 m
• Dust water: IP54
• Cable: Cat5e
• Wireless: WLAN (IEEE 802.11n)
• Battery type: Lithium-ion battery swappable
• Typical battery runtime (single charge): 6 hours
• Data output: 100 Hz
• Mains: AC power supply
• Probing Accuracy: B-Probeplus
• Probing size: ±100 µm
• Absolute angular performance eT: ±15 µm + 6 µm/m
• AIFM absolute distance performance: ±0.5 µm/m
• Dynamic lock-on: ±10 µm
• Inclination senor: ±1.0 arcsec
• Orient to gravity Uz: ±15 µm + 8 µm/m
• Timestamp accuracy: < 5 μsec.
