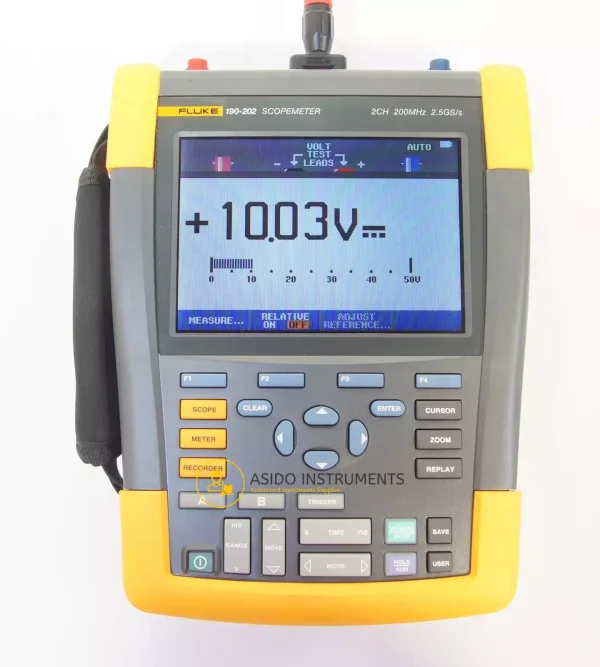

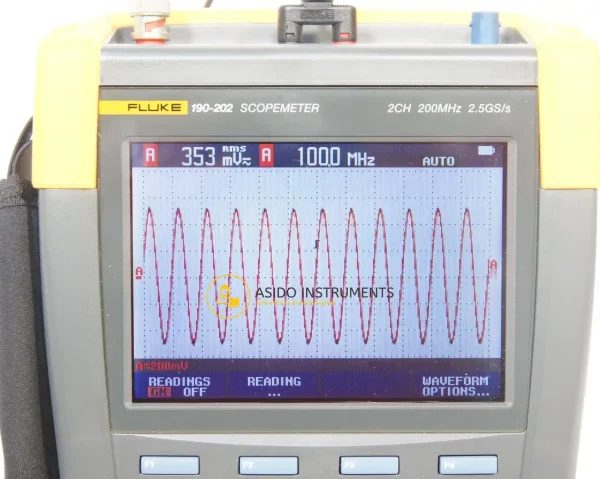

Fluke 190-202 ScopeMeter Test Tool
In Stock
Manufacturer: Fluke
Model: 190-202 ScopeMeter Test Tool
Included: Fluke 190-202 ScopeMeter Test Tool with Accessories
This product has been added to 1 people'scarts.
In Stock
Description
Fluke 190-202 ScopeMeter Test Tool combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.
Fluke 190-202 ScopeMeter Test Tool Features:
- Two electrically isolated inputs
- CAT III 1000V / CAT IV 600V safety rated
- 200 MHz bandwidth model
- 2.5 GS/s
- Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
- Dedicated 5000 Count digital multimeter
- Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
- ScopeRecord roll mode, capture waveform sample data for up to 48 hours
- TrendPlot, trend measurement readings for up to 22 days
- Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
- IP-51 rated for dust and drip proof to withstand harsh environments
- Isolated USB ports for memory devices and PC connectivity
- Li-Ion battery for extended operating timespan
- Up to 4 hours (BP290 included standard) or up to 8 hour with optional BP291
- Charge spare battery using optional external battery charger EBC290
- Easy-access battery door to make it easy to swap batteries
- A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock

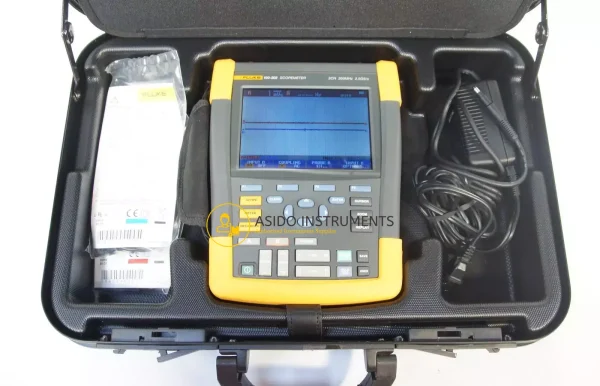

Included:
- Color Fluke 190-202 ScopeMeter® 200 MHz
- 2 channels
- DMM/Ext.input
You may also be interested in Zetec TOPAZ32 Phased Array UT Flaw Detector
Specifications:
| Specifications | |
| Bandwidth | 200 MHz |
| Number of channels | 200 MHz: 2 channels |
| Real-time sample rate | 2.5 GS/s |

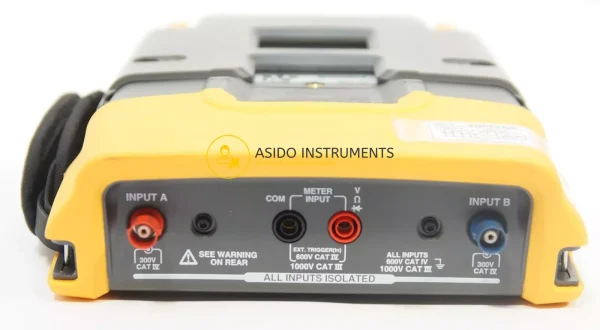

| Inputs | 2 scope plus DMM input |
| Independently floating isolated inputs | Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground |
| Timebase range | 2 ns – 2 min/div |
| Input sensitivity | 2 mV-100 V/div |
| Trigger types | Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle |
| Trigger source | Any scope input channel, or external via DMM input |
| Glitch capture | 8 ns |
| Scope measurements | Cursor: 7 |
| Automatic: 30 | |
| Maximum record length | ScopeRecord mode: 30,000 pts |
| Scope mode: 10,000 pts per input | |
| Persistence | Digital persistence giving analog oscilloscope-like waveform decay |
| Waveform compare | Waveform reference with automatic Pass/Fail testing |
| DMM Specification | |
| Meter inputs (also used as External Trigger Input for the Oscilloscope Mode) | 4 mm banana inputs, fully isolated from scope inputs and from scope ground |
| Maximum resolution | 5000 counts |
| Measurements | VDC, VAC rms, VAC + DC rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter) |
| Memory | 2 Channel |
| Screen + Setup: 30 | |
| Recording: 10 | |
| Display | 153 mm full color LCD with fast update rate |
| Environmental Specifications | |
| Operating temperature | 0°C to 40°C Including Batteries |
| 0°C to 50°C Excluding Batteries | |
| Storage Temperature | -20°C to +60°C |
| Operating altitude | Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V |
| Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V | |
| Safety Specifications | |
| Electrical safety | 1,000 V CAT III/600V CAT IV (EN61010-1) |
| Mechanical and General Specifications | |
| Size | 270 x 190 x 70 mm |
| Weight | 2.2 kg |
| Warranty | 3-years on main instrument, 1-year on accessories |
| Li-Ion battery | BP290 2400 mAh battery up to 4 Hours included standard |
| Included Accessories | |
| VPS410 Voltage Probe Sets (one red, one blue) | |
| TL175 TwistGuard™ safety designed Test Lead Set (red and black) | |
| BC190 Battery Charger/mains Adapter | |
| BP290 2400 mAh Li-ion Battery | |
| Handstrap (affixed to instrument) | |
| Hangstrap | |
| Multi-Language User Manuals on CD-Rom | |
| FlukeView ScopeMeter® demo package (restricted functionality) | |
| USB Interface Cable | |
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 60 × 60 × 50 cm |
