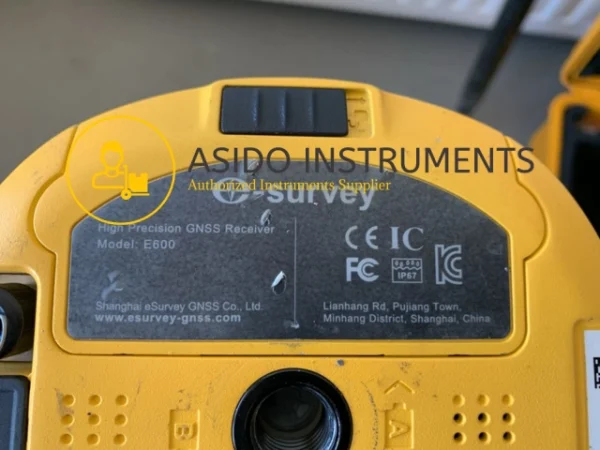

Name: eSurvey E600 H GPS GNSS Receiver
Brand: ESurvey
SKU: eSE600HGPSGNSSR
Availability: InStock

eSurvey E600 H GPS GNSS Receiver

~~$7,800.00~~ $3,900.00

In Stock

Manufacturer: ESurvey
Model: E600 H GPS GNSS Receiver
Included: eSurvey E600 Base, eSurvey E600 Rover, P9 Pro data collector, 2 X protective transport box, 2 X receivers, 2 X radio antennas, 2 X Batteries, 2 X Battery Charger with cables + 6 adapter tips for power supply networks, 2 X links for clamp, 2 X tapes

In Stock

Description

eSurvey E600 H GPS GNSS Receiver adopts a newly designed, high-precision integrated antenna that can track all current satellite constellations and signals, including GPS/GLONASS/BEIDOU/GALILEO/QZSS, etc.

eSurvey E600 H GPS GNSS Receiver new generation of Athena RTK engine effectively improves RTK initialisation success rate, initialisation accuracy in harsh environments, and supports long-baseline RTK solution, which is an effective guarantee for highly efficient and high-precision RTK operations.

eSurvey E600 H GPS GNSS Receiver supports a RTK continuous constellation RTK technology, in the case of traditional RTK data link interruption, using a RTK continuous constellation RTK technology to maintain RTK precision operation for a certain period of time, eliminating the dead angle of traditional RTK operation.

eSurvey E600 H GPS GNSS Receiver Features:

Multi-constellation satellite tracking – GPS,GLONASS,BDS,GALILEO,SBAS,QZSS
Built-in radio supports more protocols – Transmit power 1W, effective working distance is 5km in the optimal work environment.
Intelligent dual batteries – Support up to 10 hours of work time, battery power can be read directly from the indicator light on the battery, the battery models of handheld device and host are same.
Built-in 4G network module – More stable network communication.
Web UI – Access the Web page, complete the receiver configuration, download data, upgrade firmware, view status, etc. through the mobile phone, tablet and other handheld devices.
Tilt survey – The E600 receiver integrates an electronic bubble sensor, combined with a new tilt survey algorithm and surpad software operation. No calibration is required before measurement, the accuracy of coordinate data can be easily achieved within 30° tilt angle.

eSurvey E600 H GPS GNSS Receiver Included:

eSurvey E600 Base
eSurvey E600 Rover

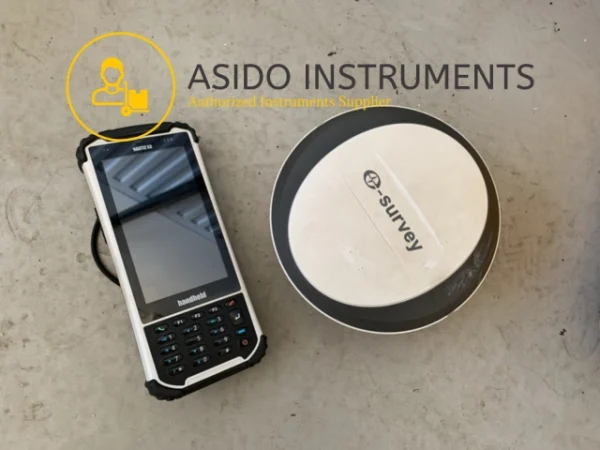

P9 Pro data collector

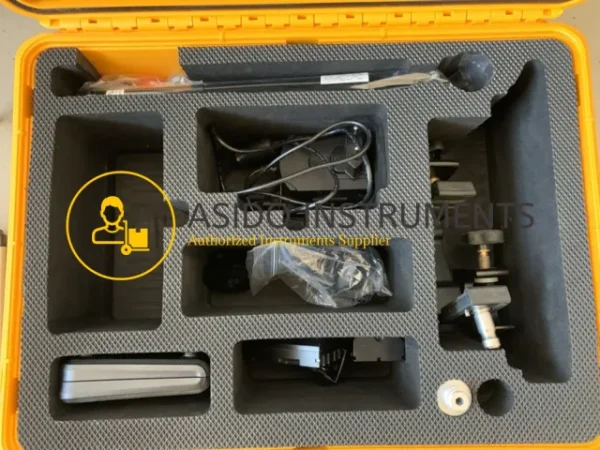

2 X protective transport box
2 X receivers
2 X radio antennas
2 X Batteries
2 X Battery Charger with cables + 6 adapter tips for power supply networks
2 X links for clamp
2 X tapes

You may also be interested in ESurvey E300 Pro GPS GNSS

Specifications:

GNSS Engine
Satellites Tracking	GPS: L1CA/L1P/L1C/L2P/L2C/L5GLONASS: G1/G2/G3, P1/P2 GALILEO: E1BC/E5a/E5b QZSS: L1CA/L1C/L2C/L5 Beidou: B1/B2/B3 SBAS: L1, CA/L5 L-Band
Channels	600
Signal Reacquisition	<1 sec
Cold Start	<60 sec
Warm Start	<30sec
Hot Start	<10 sec
RTK Signal Initialization	<8 sec
Initialization Reliability	>99.9%
Update Rate	10hz standard, up to 50hz
Performance
High Precision Static	H: 2 mm + 0.1 ppmV: 3 mm + 0.4 ppm
Static	H: 2.5 mm + 0.5 ppmV: 3 mm + 0.5 ppm
System
Operation System	Linux
Internal Memory	8 GB
External Memory	Removable memory support TF card
Tilt Sensor / IMU	MEMS, Fast initialization, dynamic tilt survey up to 60°
Communication
GSM	Global 4G
Bluetooth	V2.1+EDR / V4.1 Dual Mode, Class2
WiFi	802.11 b/g/n
SIM Card	SIM card
Power Supply
Battery	Dual rechargeable batteries battery, 7.2 V ~ 3400 mAh *2
External Power Supply	9-28V DC, with over-voltage protection
Working Time	Up to 10 hours
Charging Time	Typically 4 hours
Physical
Dimension	156mm x 76mm
Weight	1.2 Kg with 2 batteries inside
Screen
Operating Temperature	-45°C +65°C
Storage Temperature	-50°C +80°C
Water/Dust Proof	IP67
Shock	Survive a 2m drop on concrete
Vibration	Vibration Resistant
Humidity	Up to 100%
Indicators
Keyboard	Power button
Certification	CE, FCC, NGS Calibration
