Easy-Laser D450 Laser Shaft Alignment and Measurement Kit

Description

Easy-Laser D450 Laser Shaft Alignment and Measurement Kit For users who want a simple, reliable and cost-effective measuring system for the alignment of horizontally-installed machines. Provides vertical and horizontal alignment solutions, graphically on the display screen. EasyLink for Windows is included to upload alignment data and export it to Excel.

Easy-Laser D450 Laser Shaft Alignment and Measurement Kit Features:

• System Description
  For users who want a simple, reliable and cost-effective measuring system for the alignment of horizontally-installed machines. Provides vertical and horizontal alignment solutions, graphically on the display screen. EasyLink for Windows is included to upload alignment data and export it to Excel.
• Programs
  Simple laser shaft alignment. See below. System
  requires 180° of rotation.
• Typical applications:
  Pumps, motors, gearboxes.
• Simple to Operate
  Features Dual Laser System-each laser fires into the opposing sensor. Similar to reverse-dial method.
  No training required-follow on-screen instructions.
  Precision results in less time.

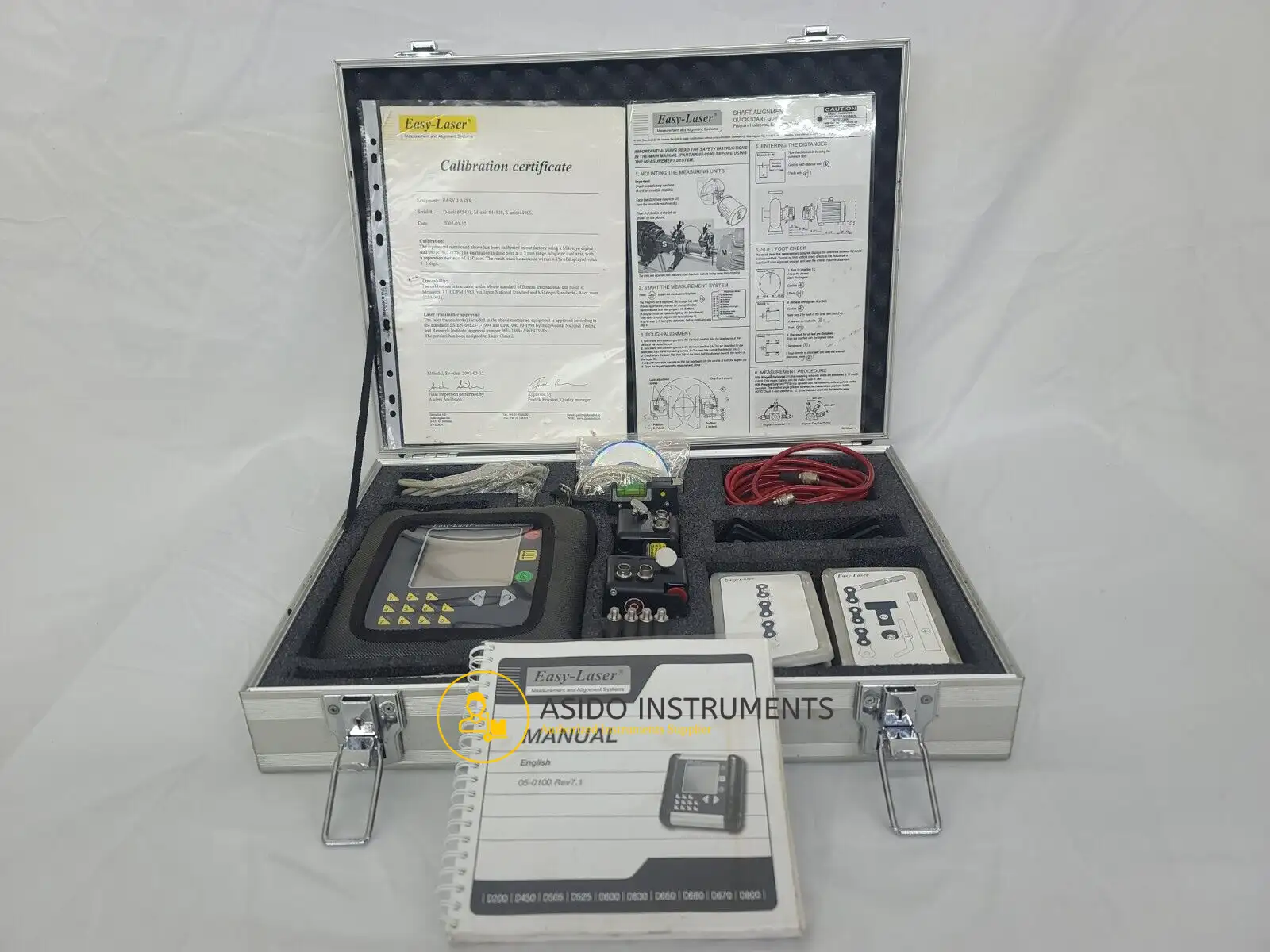

Easy-Laser D450 Laser Shaft Alignment and Measurement Kit Included:

• (2) 10 x 10 mm PSD (laser/detectors) with 2m cables.
• (1) Display Unit D279 with firmware for alignment of horizontal machines and SoftFoot Indicator, Thermal Compensation, Tolerance Check and Measurement Value Filter.
• (1) Leatherette Cover for Display Unit
• (2) Fixture Bases with chain fasteners
• (1) Set 2.5″ Risers
• (1) Set of 9.5″ Risers, (2) 36″ Chain Extensions
• (1) Tightening Tool
• (1) Tape Measure
• (1) Carrying Case
• (1) EasyLink™ Windows® based software and Communication Cable

You may also be interested in Easy Laser E920 Geometric Measurement

Easy-Laser D450 Laser Shaft Alignment and Measurement Kit Specifications:

D450 Specifications  (System)		Display Unit D279
Programs	Horizontal, Softfoot, Thermal Growth Compensation, Tolerance Check, Measurement Value Filter	Housing material	Anodized aluminum / ABS-plastic
Measurement distance	Up to 10 m [33 feet]	Type of display	Dot matrix LCD
Temperature range	0-50°C [32-122°F]	Display size	73×73 mm [2.87″×2.87″]
Relative humidity	10-95%	Displayed resolution	0.001mm, 0.05 mils/thou
Max. displayed error	±1% +1 digit	Battery	4 × 1.5 V R14 (C)
Weight of System	5 kg [11 lbs]	Operating time	24 hours
Carrying case	W×H×D: 420×320×110 mm [16″×12″×4″]	Output port	RS232 for printer
		Memory	1,000 Alignment Measurements
		Settings	Contrast and unit (mil/thou/mm)
Download Data Sheet		Dimensions	WxHxD: 180×180×45 mm [7.1″×7.1″×1.8″]
		Weight	1250 g [2.8 lbs]
