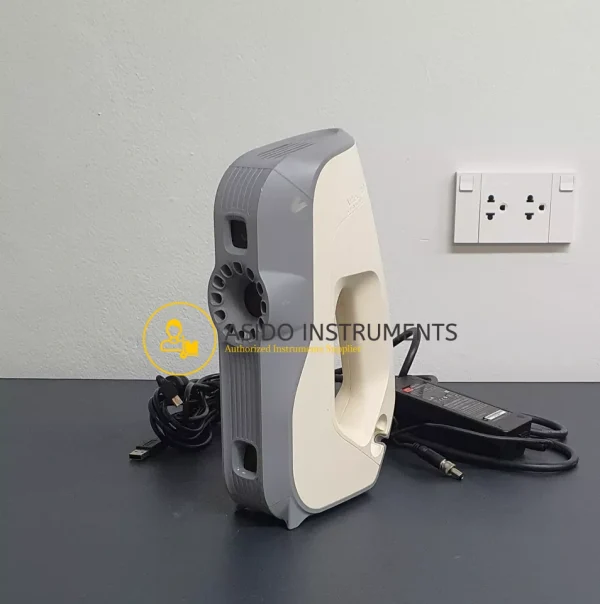

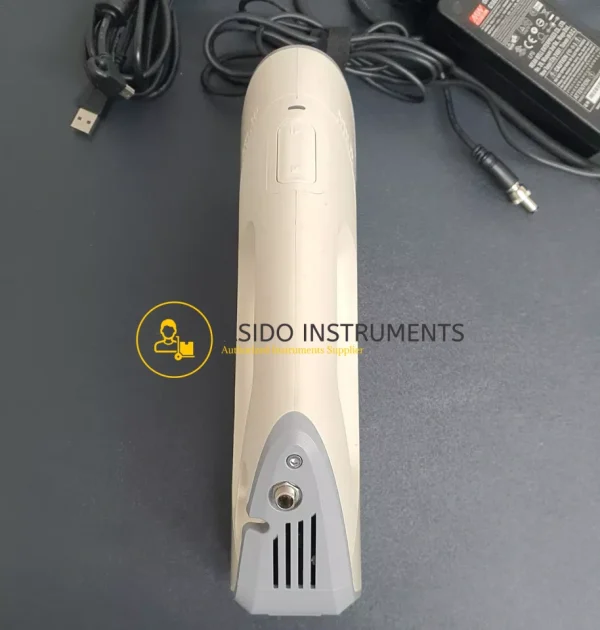

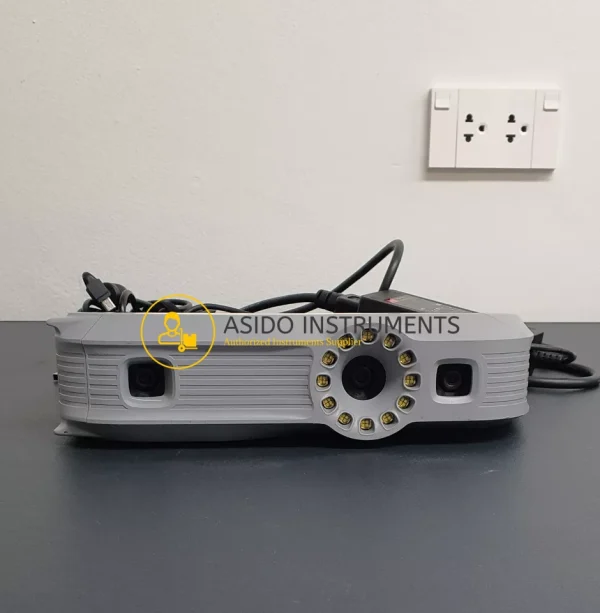

Artec EVA 3D scanner

Description

Artec EVA 3D scanner is the ideal choice for making a quick textured and accurate 3D model of medium sized objects, such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution.

Light, fast and versatile, Artec EVA 3D scanner is most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured light scanning technology, it is an excellent all round solution for capturing objects of almost any kind, including objects with black and shiny surfaces.

Artec EVA 3D scanner Features:

• Ability to capture texture
• 3D resolution up to 0,5 mm
• 3D point accuracy up to 0,1 mm
• 3D accuracy over distance up to 0,03% over 100 cm
• Texture resolution: 1,3 Megapixel
• Colors: 24 bits per pixel (over 16 Million colors)
• Light source: Flash Bulb (no laser)
• Working distance: 0.4 m – 1 m
• Linear field of view – Height x Width at closest range: 214 mm x 148 mm
• Linear field of view – Height x Width at longest range: 536 mm 371 mm
• Angular field of view – Height x Width: 30 x 21º
• Video frame rate up to 16 fps
• Exposure time: 0.0002 s
• Data acquisition speed up to 2 000 000 points per second
• Multi core processing
• Physical Dimensions: 261,5 mm x 158,2 mm x 63,7 mm
• Weight: 850 grams
• Power consumption 12V, 48W
• Interface 1 x USB 2.0
• Output formats: OBJ, PTX, STL, WRML, ASCII, AOP, CSV, PLY, E57
• Processing Capacity: 40,000,000 triangles
• Artec EVA 3D scanner Hardware Requirements
• Processor: Intel Quad Core (i5 or i7 recommended)
• Memory: 8GB (16GB Recommended)
• 1 x USB 2.0 port for a regular scanner. To connect several scanners, a computer with several independent
• USB 2.0 hosts, or PCI/PCIU-Express 2.0 cards is recommended.
• Video Card: nVidia GeForce 9 (9xxxx) series or better with at least 512 MB of memory.
• Setero viewing: nVidia Quadro graphics family is required.
• OS: Windows Vista x64, Windows 7 x64, Windows 8 x64 (Windows XP is not officially supported.)
• 300 MB Disc Space for installation.
